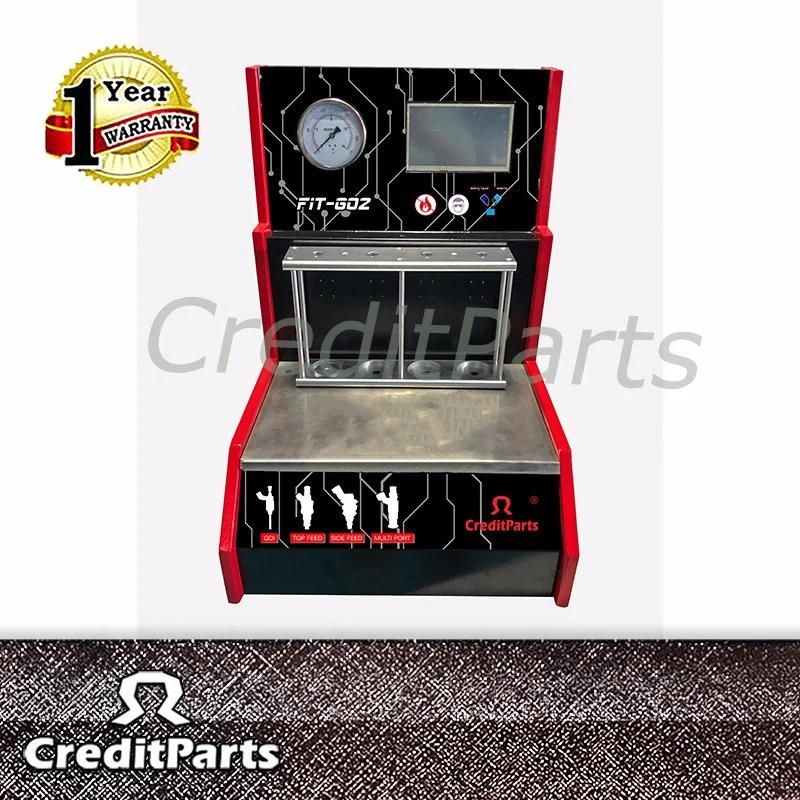

Professional Gdi Fuel Injector Tester Fit-G02
Yixing Guangmao Pringting Material Co., Ltd- Testing Equipment Type：Fuel Injector Tester
- Certification：CE, ISO
- Update Method：by Internet
- Condition：New
- Standard：Standard
- Voltage：110V,220V
Base Info
- Model NO.：FIT-G02
- Pressure：0-8bar
- Specification：50KG
- Trademark：CRDT,CreditParts
- Origin：China
- HS Code：9031809090
- Production Capacity：100
Description
Basic Info.
Model NO. FIT-G02 Pressure 0-8bar Specification 50KG Trademark CRDT/CreditParts Origin China HS Code 9031809090 Production Capacity 100Product Description
Technical Data:
Temperature Scope of Operation: -10ºC~+40ºC
Work Voltage 220/110V AC 50 Hz. Test Liquid Tank Volume: 3L
Testing Tube Volume: 200 ml
Ultrasonic Frequency: 25 kHz
Ultrasonic Power: 75W
Maximum Testing Number of Cylinder: 4
Rotation Speed: 0~9900 r/min step 50 r/min
Pulse Duration: 1~20 ms step 0.1 ms
Injection Number of Times: 0~9900 step 50
Injection Time: Idle speed: 0~600sec
Middle speed:0~60sec
High Speed: 0~60 sec
Oil Pressure: 0~800kpa(8.0kg/cm2) (adjustable)
75 Watts /25KHz ultrasonic diagnostic and cleaning of injectors, with capacity of
stainless steel tank for 3L. Includes cables/adapters for connection of multi-purpose & CIS injectors
Micro processed equipment, totally programmable.
