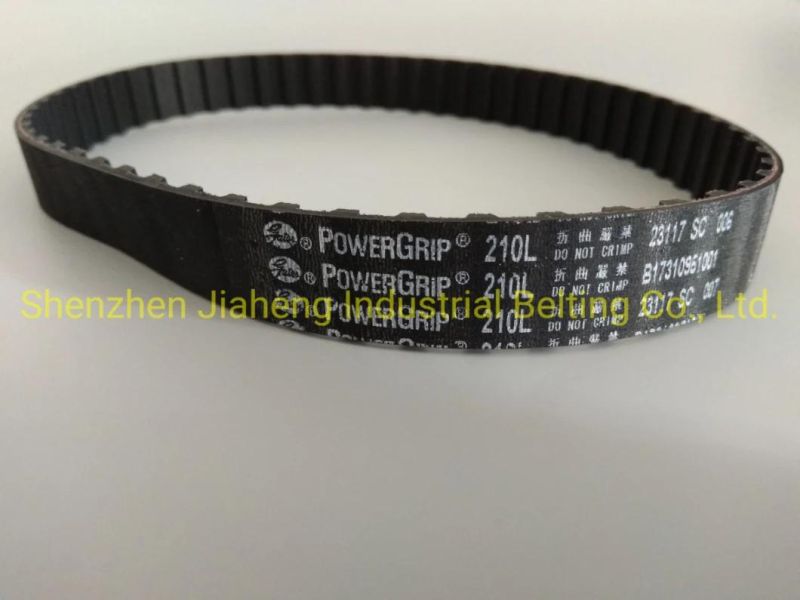

Model 210 L Rubber Synchronous Belt Rubber Timing Belt

The Yk Technology Co., Ltd
  • Standard or Nonstandard：Standard
  • Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Food Machinery, Marine, Mining Equipment, Agricultural Machinery
  • Feature：Flame-Retardant, Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
  • Tensile Strength：Strong
  • Material：Rubber
  • Type：Toothed Belt

Base Info

  • Model NO.：210L

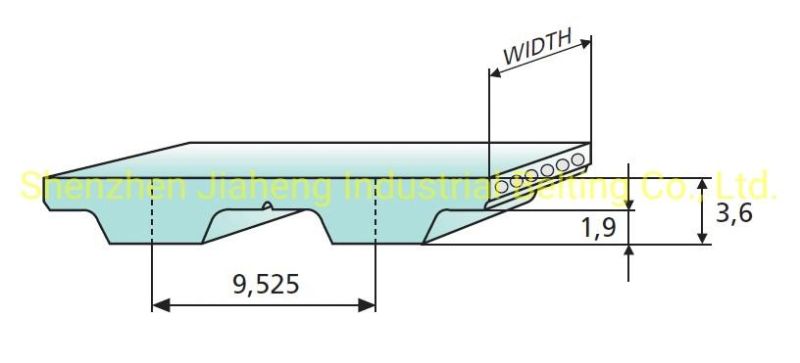

  • Pitch：9.525 mm
  • Color：Black
  • Cord：High Quality Glass Fibre
  • Max Width：450mm
  • Transport Package：Export Standard
  • Specification：210 L
  • Trademark：UNI Belting
  • Origin：Shanghai China
  • HS Code：4010390000
  • Production Capacity：20000000 Meters

Description

40Model 210 L Rubber Synchronous Belt Rubber Timing Belt


SUPPLY CHARACTERISTICS

1.Company leading products, With all kinds of mold more than 5000.
 2.Cutting or provide sleeve according to customer's
requirement
 3.Could add anti-static,heat-resistant,low temperature resistance ect.
 4. Normal product no minimum order quantity
requirements.
Model 210 L Rubber Synchronous Belt Rubber Timing BeltOur dedication to continuous research and development has led to our most efficient rubber synchronous belts yet. Thanks to their dramatically reduced weight, our complete line of rubber synchronous belts are easier to install and replace. Say no to lubrication on metal wear. Say yes to increased energy efficiency.
Model 210 L Rubber Synchronous Belt Rubber Timing Belt
ModelLength (mm)Sleeve width (mm)Teeth Number
113L285.7545030
120L304.845032
124L314.32525033
130L333.37545035
135L342.90025036
143L361.95045038
150L381.00045040
154L390.52545041
157L400.05025042
158L400.05025042
160L409.57545043
165L419.10045044
169L428.62545045
172L438.15045046
173L438.15045046
176L447.67545047
177L447.67545047
180L457.20045048
184L466.72545049
185L466.72545049
187L476.25045050
191L485.77545051
195L495.30045052
198L504.82545053
203L514.35045054
210L533.40045056
214L542.92545057
215L542.92545057
217L552.45045058
220L561.97545059
225L571.50045060
229L581.02545061
230L581.02545061
232L590.55045062
236L600.07545063
240L609.60045064
244L619.12545065
248L628.65045066
250L638.17545067
251L638.17545067
255L647.70045068
258L675.22545069
259L675.22545069
260L657.22545069
263L666.75045070
265L676.27545071
270L685.80045072
275L695.32545073
277L704.85045074
280L714.37545075
285L723.90045076
300L762.00045080
304L771.52545081
310L781.05045082
315L800.10045084
320L809.62545085
322L819.15045086
328L828.67545087
330L838.20045088
334L847.72545089
337L857.25045090
739L1876.425450197
750L1905.000450200
817L2076.450450218
870L2209.800450232
900L2286.000450240
915L2324.100450244
341L866.775 45091
344L876.300 45092
345L876.300 45092
350L885.825 45093
352L895.350 45094
355L904.875 45095
360L914.400 45096
367L933.450 45098
370L942.975 45099
371L942.975 45099
375L952.500 450100
380L962.025 450101
382L971.550 450102
390L990.600 450104
394L1000.125 450105
397L1009.650 450106
400L1019.175 450107
405L1028.700 450108
412L1047.750 450110
420L1066.800 450112
427L1085.850 450114
430L1095.375 450115
435L1104.900 450116
439L1114.425 450117
442L1123.950 450118
450L1143.000 450120
453L1152.525 450121
454L1152.525 450121
461L1171.575 450123
465L1181.100 450124
480L1219.200 450128
495L1257.300 450132
500L1266.825 450133
510L1295.400 450136
520L1323.975 450139
525L1333.500 450140
540L1371.600 450144
548L1390.650 450146
550L1400.175 450147
555L1409.700 450148
560L1422.000 450149
570L1447.800 450152
581L1476.375 450155
585L1485.900 450156
600L1524.000 450160
615L1562.100 450164
619L1571.625 450165
630L1600.200 450168
640L1628.775 450171
660L1676.400 450176
690L1752.600 450184
694L1762.125 450185
697L1771.650 450186
720L1828.800 450192
728L1847.850 450194
731L1857.375 450195
