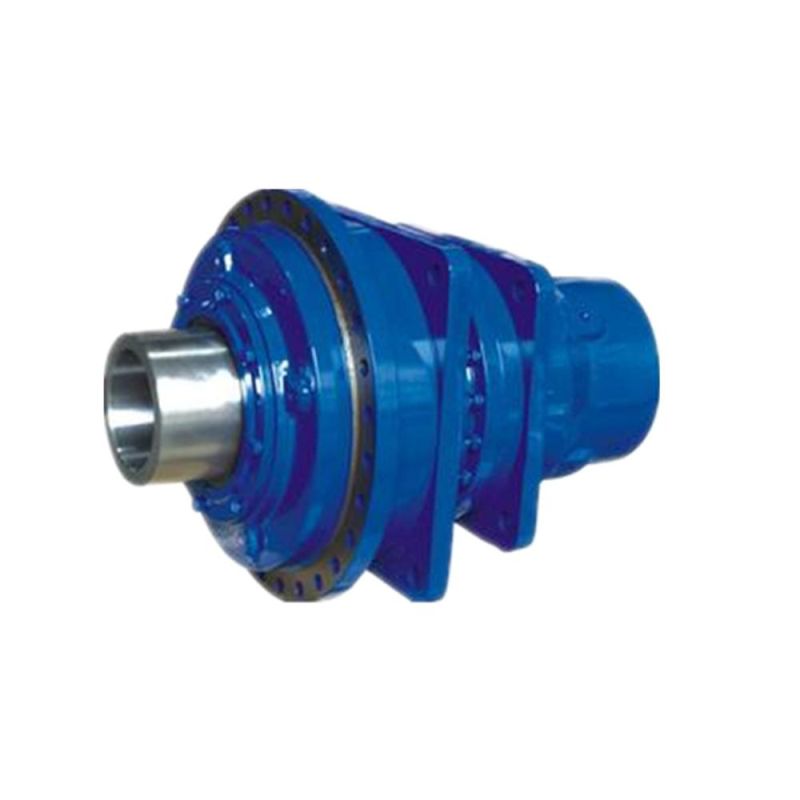

Hollow Shaft Planetary Gearbox with Input Adapter Used for Construction Machinery
Hebei Zhouwo Trading Co., Ltd.- Application：Motor, Electric Cars, Machinery, Marine, Agricultural Machinery
- Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Four-Step
Base Info
- Type：Planetary Gear Box
- Transport Package：Wooden Case
- HS Code：8483409000
- Production Capacity：400PCS,Month
Description
Equivalent To Other Brand :
Bonfiglioli
300 Series
Brevini
EM/ED/ET/ET
Dynamic oil
RE Series
REGGIANA RIDUTTOR
RR Series
How To Select a Complete SGR planetary gearbox:
Complete planetary gearbox made up of 4 parts :AInput Component 1:AC electric motor 2: NEMA or IEC motor 3: NEMA or IEC motor adapter flange 4: the Solid input shaft 5: Solid input shaft with the fanBGear Reductions (co-axial stage 1-5 ,right angle 1-4 . ) 6:Right angle reduction stage 7: Planetary reduction stage 8: Worm/planetary combination 9: Bevel helical planetary combination COutput Component 10: Flanged output/ Footed output-Solid shaft 11: Flanged output/ Footed output-Male spline shaft 12: Flanged output/ Footed output- Female spline shaft 13: Flanged output/ Footed output- 14: Flanged output/ Footed output-Pinion 15: Shaft Mount output for shrink discD Fittings 16: Flange 17: Pinion gear 18: Sleeve coupling 19: Endplate 20: Splined bar 21: Shrink disc
