IP65 P6.25 LED Video Display HD Stage Rental LED Display Screen with High Brightness

Guangzhou Zhonghao Packaging Products Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：6.25mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：420W,Sqm

Base Info

  • Model NO.：ORD-I-6.25
  • Pixel Density：25600 Pixels,Sqm
  • Scanning Mode：1,13 Scan
  • Display Type：LED Video Display
  • Application：Stage Performance
  • Certification：CE, RoHS, UL, CCC, ETL
  • Delivery Time：15~25 Working Days
  • Warranty Time：2 Years

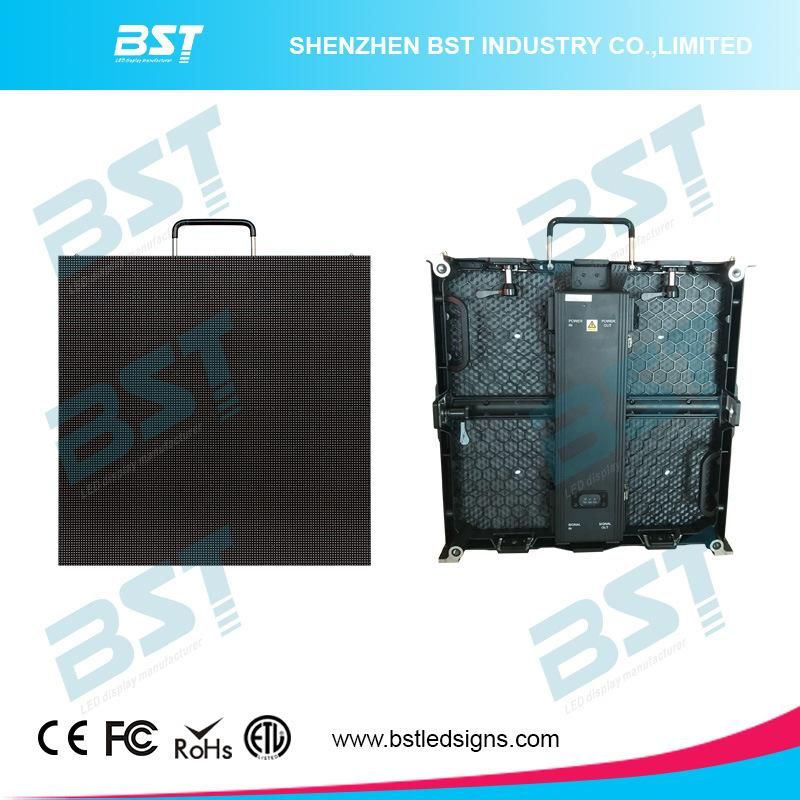

  • Cabinet Size：500X500mm,500X1000mm
  • OEM：Yes
  • Transport Package：Flight Case, Plywood Case, Carton.
  • Specification：CE, ROHS, ISO9001
  • Trademark：BST
  • Origin：Shenzhen, China
  • HS Code：8528591090
  • Production Capacity：3000sqm,Month

Description

ModelORD-I-6.25Pixel Pitch6.25mmPixel Density25600 pixels/m2LED TypeSMD2727LED Configuration1R1G1BCabinet Dimension500mmx500mm/500mmX1000mmCabinet Resolution80*80pixels/80X160pixelCabinet Weight8kg/14KgCabinet Materialdie casting aluminumIngress Protection(front/rear)IP65/IP54Brightness>6500nitsViewing Angle(H/V)140°/140°Driving Method1/10 ScanFrame Refresh≥ 60HzData Refresh Rate>1500HzGray Scale16bitPower Consumption(avg.)420w/m2Input VoltageAC 110/220±10%,  50~60HzTemperature(operating/storage)-20~50°C / -40~60°CHumidity(operating/storage)10%~90%RH / 10%~85%RHMTBF≥1000hrsLife Span≥50000hrsPixel Failure<0.0003
IP65 P6.25 LED Video Display HD Stage Rental LED Display Screen with High BrightnessIP65 P6.25 LED Video Display HD Stage Rental LED Display Screen with High Brightness
IP65 P6.25 LED Video Display HD Stage Rental LED Display Screen with High Brightness
IP65 P6.25 LED Video Display HD Stage Rental LED Display Screen with High Brightness

IP65 P6.25 LED Video Display HD Stage Rental LED Display Screen with High BrightnessIP65 P6.25 LED Video Display HD Stage Rental LED Display Screen with High Brightness
FAQ

Q1:  What's the pixel pitch for Outdoor LED Display Screen ?

A1:  Indoor&Outdoor (6mm / 8 mm/ 10mm/12mm/16mm )

Q2:  Where is it used for?

A2:
• Outdoor advertising, digital billboards, advertising in big companies
• Sports halls, fields, playgrounds.
• Airports, bus stations and railway passenger terminals.
• Facades of shopping malls, department stores, banks and car dealerships.
• Architecture and social projects, information systems in cities.
• Show-business, concerts, festivals, motor shows and other public events.
environment.

Q3:  Can it play HD video?
A3:  Yes, it can realize HD video function with Novastar or Linsn controlling system.

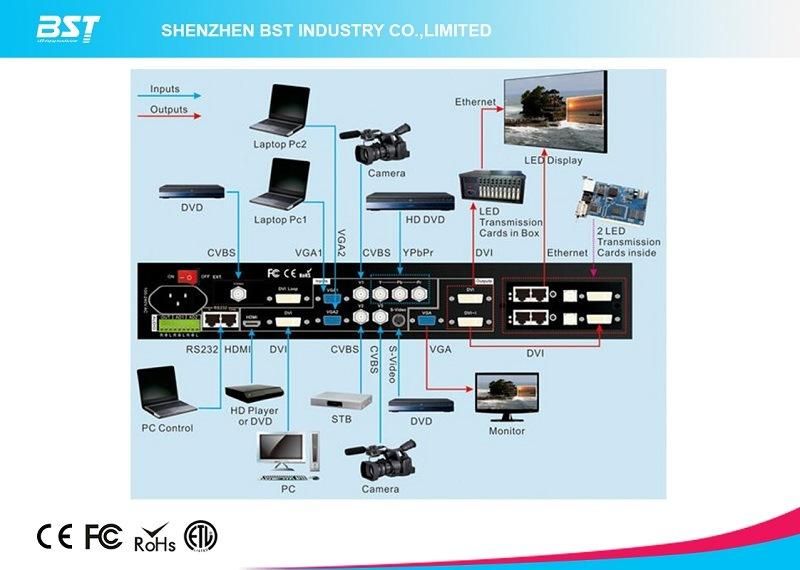

Q4:  What's the controlling system?

A4:  Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.

Q5:  How about the size of project?

A5:  Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size.  I will appreciate it if any drawing files about installation offered.
