• Model NO.：Autel Maxisys MS906TS
• Update Method：by Internet
• Type：Diagnostic Scanner
• Software Update：1 Year Free Update
• Operating System：Androidtm 4.4.2, Kitkat
• Touchscreen：8.0 Inch LED Ouch Screen with 1024X768p Resoluti
• Memory：2 GB RAM & 32 GB ROM
• Processor：Samsung Exynos T5260 6-Core Processor
• Battery：10, 000 mAh 3.7 V Lithium-Polymer Battery
• Power Consumption：5 W
• Connectivity：WiFi, USB: 2.0
• Coverage：98% Vehicle Coverage
• Camera (Rear)：Rear-Facing, 8.0 Megapixel, Af with Flashlight
• Sensors：Gravity Accelerometer, Ambient Light Sensor (ALS)
• Product Name：Autel Ms906ts
• Availale：Ready Stock
• Suitable：Car Workshop, Car Owner
• Keywords：Car Diagnostic Tool
• Transport Package：Carton Package
• Specification：MS906S
• Trademark：Autel
• Origin：China
• HS Code：9031809090
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. Autel Maxisys MS906TS Update Method by Internet Type Diagnostic Scanner Software Update 1 Year Free Update Operating System Androidtm 4.4.2, Kitkat Touchscreen 8.0 Inch LED Ouch Screen with 1024X768p Resoluti Memory 2 GB RAM & 32 GB ROM Processor Samsung Exynos T5260 6-Core Processor Battery 10, 000 mAh 3.7 V Lithium-Polymer Battery Power Consumption 5 W Connectivity WiFi, USB: 2.0 Coverage 98% Vehicle Coverage Camera (Rear) Rear-Facing, 8.0 Megapixel, Af with Flashlight Sensors Gravity Accelerometer, Ambient Light Sensor (ALS) Product Name Autel Ms906ts Availale Ready Stock Suitable Car Workshop, Car Owner Keywords Car Diagnostic Tool Transport Package Carton Package Specification MS906S Trademark Autel Origin China HS Code 9031809090 Production Capacity 1000PCS/Month

Product Description

Autel Official Authorized Store!
100% Original Products and Best Price.
We Support Wholesale Price and Dropshipping.
Overseas wareouse located in Spain, Germany, USA, Australia, Russia and etc.

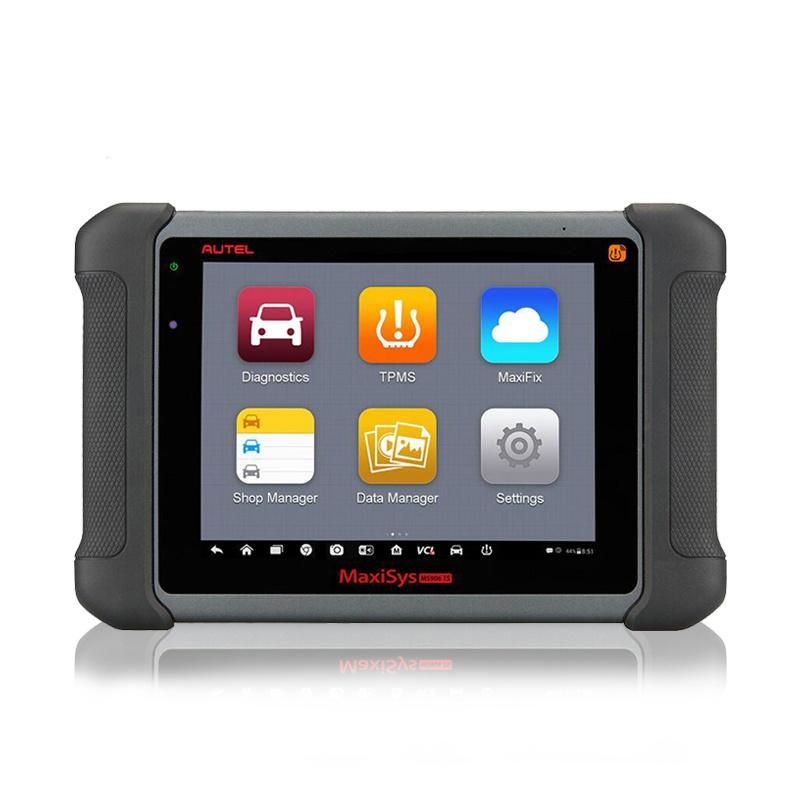

Autel Maxisys MS906TS

OBD2 Bi-Directional Diagnostic Scanner and TPMS Tool

MaxiSys MS906TS is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices integrated with the TPMS antenna module. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and TPMS integration. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8" capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906TS efficiently provides comprehensive vehicle diagnostics and analysis along with universal TPMS solutions.

MS906TS Description:

• Extraordinarily powerful Samsung Exynos Hexa-core processo

• 8.0" 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility

• Internal reliable 32GB SSD for better performance

• Built-in 8-megapixel rear camera with autofocus and flashlight

• Integrated TPMS antenna module for performing comprehensive TPMS service

• 802.11b/g/n Wi-Fi to access your favorite web resources

• Unique ergonomic design with rubberized outer protection and a rugged internal housing

• Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation

• USB, audio and auxiliary ports make it easy to connect accessories

• Open source Android Operating System for fast boot-up and multitasking

• Easy and intuitive navigation makes finding what you need simple and fast

• The most extensive complete system coverage for more than 80 US, Asian and European makes and models

• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding

• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.

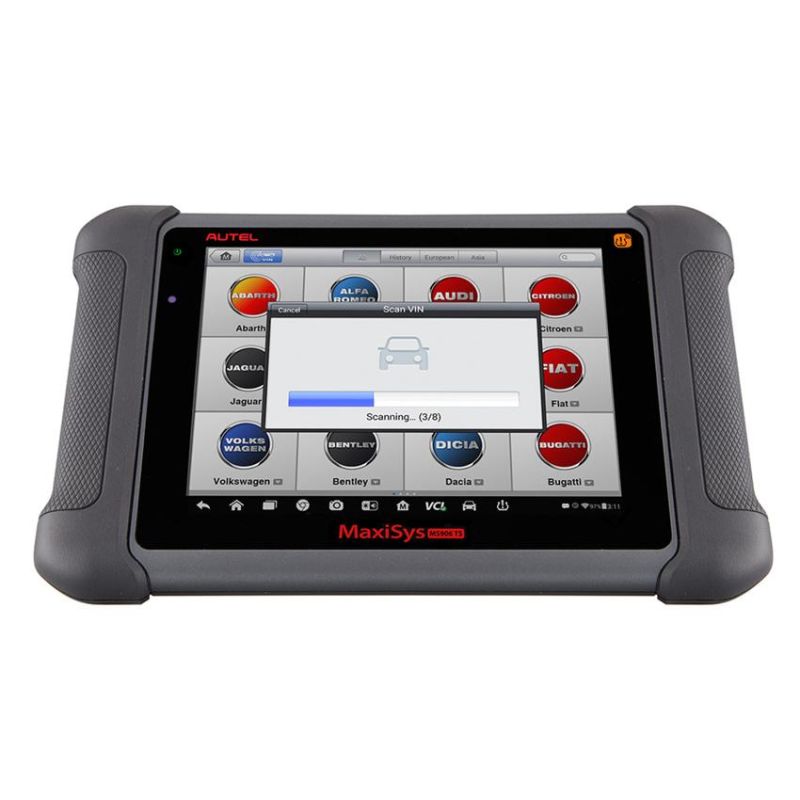

• Smart AutoVIN technology for identifying vehicle easily

• Uniquely integrated TPMS service application designed for triggering known OEM TPMS sensors, programming Autel MX-Sensor and performing TPMS sensor relearn procedure

• Automatic system and software updates with real-time push message notifications via internet

• Instant remote control tech support anytime, anywhere

• Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes

• Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors

• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

• Enhanced wireless connectivity between the display tablet and VCI device allows greater mobility and ease at work

• Convenient data management system for managing internal program applications and reviewing data

MK906BT Specification:

Operating System	Android™ 4.4.2, KitKat
Processor	Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory	2 GB RAM & 32 GB ROM
Display	8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity	Wi-Fi (802.11 b/g/n) USB: 2.0 Mini USB 2.0 Wireless BT V2.1+EDR Class1 HDMI 1.4a SD Card (support up to 32 GB)
Camera (rear)	Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage	12 V (9-35 V)
Power Consumption	5 W
Operating Temperature	-10 to 55°C (14 to 131°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Housing	Rubberized outer protection and rugged internal housing
Dimensions (W x H x D)	270.8 mm (10.0") x 176.0 mm (6.9") x 36.0 mm (1.4")
Weight	NW: 1.10 kg (2.42 lb.)

MS906TS Details:
