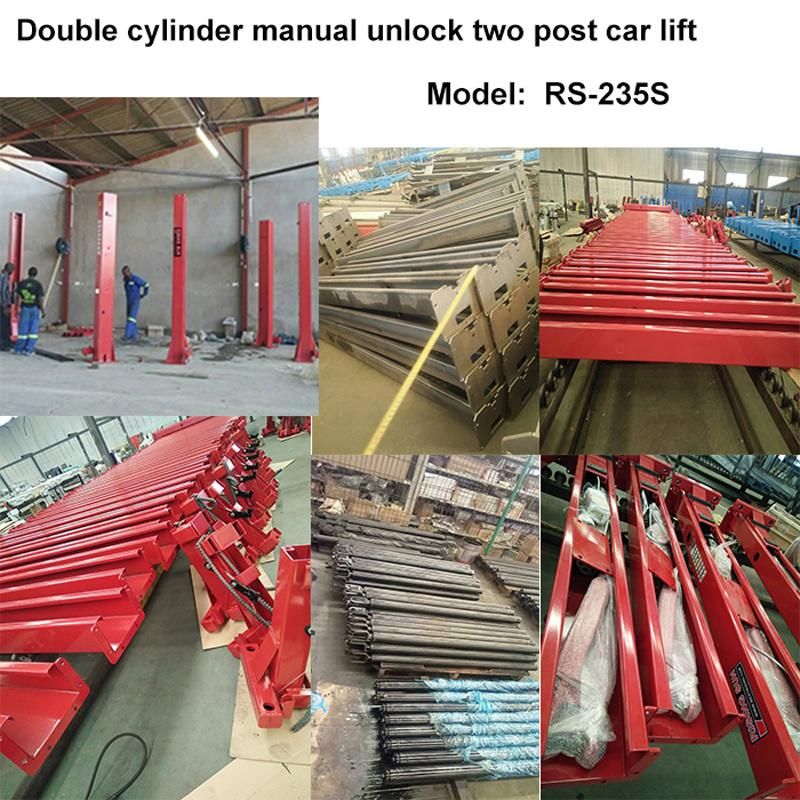

4t Hydraulic Two Column Auto Car Lift for Garage Equipment

Zhejiang Best Idea Promotion Items Co., Ltd.
  • Type：Double Cylinder Hydraulic Lift
  • Lifting Capacity：4T
  • Driving Type：Hydraulic
  • Certification：CE, ISO
  • Driving Motor Number of Mechanical Lift：1
  • Double Cylinder Lift Type：Thin Plate Type

Base Info

  • Model NO.：RS-235S
  • Shearing Lift Type：2 Post Car Lift
  • Condition：New
  • Brand：Rising Sun
  • Design：Two Post
  • Product Name：4t Hydraulic Two Column Auto Car Lift
  • Max Lifting Height：1900mm
  • Min Height：100mm
  • Motor Power：2.2kw
  • Oil Pressure：18MPa
  • Lifting Time：50s
  • Lowering Time：40s
  • Power Supply：220-240V,380-415V,1,3pH,50,60Hz
  • Color：Red,Blue,Grey,Customised
  • Certificate：Ce
  • Transport Package：2ctns, 580kgs, 1.25cbm
  • Specification：auto car lift
  • Trademark：RSISING SUN
  • Origin：China
  • HS Code：84254290
  • Production Capacity：400sets,Month

Description

Basic Info.

Model NO. RS-235S Shearing Lift Type 2 Post Car Lift Condition New Brand Rising Sun Design Two Post Product Name 4t Hydraulic Two Column Auto Car Lift Max Lifting Height 1900mm Min Height 100mm Motor Power 2.2kw Oil Pressure 18MPa Lifting Time 50s Lowering Time 40s Power Supply 220-240V/380-415V,1/3pH,50/60Hz Color Red,Blue,Grey,Customised Certificate Ce Transport Package 2ctns, 580kgs, 1.25cbm Specification auto car lift Trademark RSISING SUN Origin China HS Code 84254290 Production Capacity 400sets/Month

Product Description

4T hydraulic two column auto car lift

Sincerely looking for contracted distributor in different country,thanks for kind contacting !

Main feature
  1. Floor plate design,more suitable for low ceiling workshop.
  2. Double sides manual unlock release, double safe and reliable.
  3. Dual cylinder located in Master and slave column,high strength Chain drives system.
  4. Adopt Italy made high quality seals.
  5. Adopt qualitypower pack,more endurable,running safely and reliably.
  6. Complete back plate design , elegant appearance.
  7. Dynamic test:115% of the rated capacity.Static test 150% of rated capacity.
  8. Dual anti-skidding safety device from column ladder safety to hydraulic seal protection to ensure double safe on the staying of the vehicle.Special hydraulic system design to avoid overload running.
  9. CE required 24V simple control box (optional).
4t Hydraulic Two Column Auto Car Lift for Garage Equipment


Technic data
Model RS-235S
Lifting capacity4000kg
Min Lifting height100mm
Max. lifting height1900mm
Lifting time50s
Lowering time40s
Power supply220-240V/380-415V, 1/3PH,50HZ/60HZ
Oil pressure18Mpa
Motor power2.2kw
Overall width3410mm
Opening width2660mm
Overall height2826mm

Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 12months
    Free parts will be sent by courier or post  if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : ISO , CE

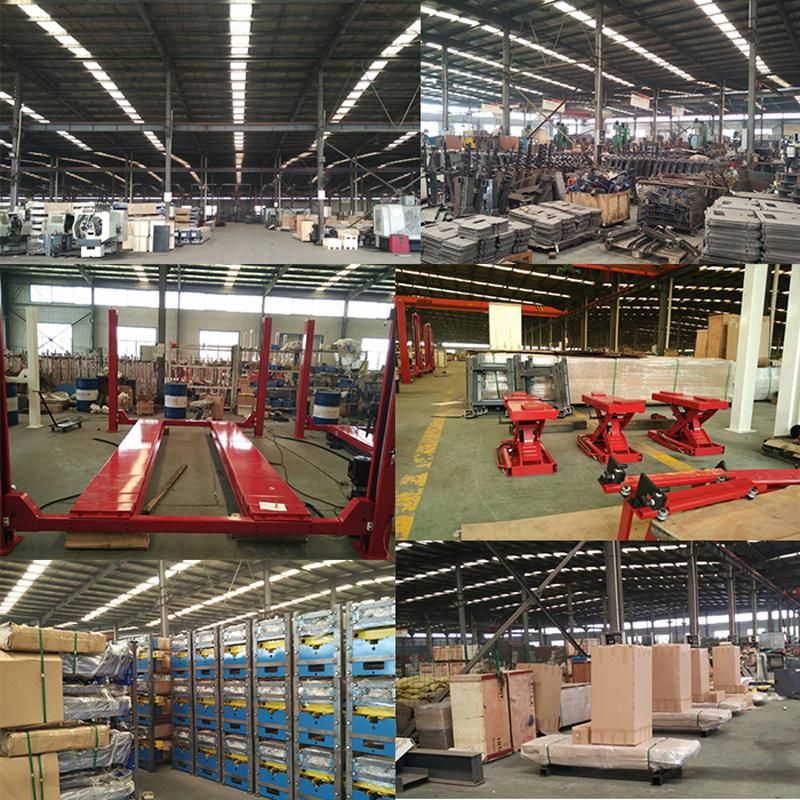

Company information
Rising Sun - Professional quality you can rely on !
This brand was founded aims for providing one-stop solution for vehicle works.
4t Hydraulic Two Column Auto Car Lift for Garage Equipment

Our advantages
1) Products meet different quality standard all over the world,no worry about the reselling .
2)18years export experience , well known about various of trade term .
3)Stronger shipping supported ,ensure reasonable cost and delivery in time .
4) 7 x 24 online customers service
5) Various payment way can be accepted

Honestly , we can give more safe of your business and money.
