High Transmission Efficiency Keyed Cl Drum Gear Coupling

Jiaxing City Qunbang Hardware Co., Ltd.
  • Shaft Hole：19-32
  • Torque：>80N.M

Base Info

  • Model NO.：CL type
  • Bore Diameter：19mm
  • Speed：4000r,M
  • Structure：Rigid
  • Material：Cast Iron
  • Type：Gear Coupling
  • Transport Package：Wooden Case
  • Specification：as your requirement
  • Trademark：Huading
  • Origin：Jingjiang, Jiangsu Province
  • HS Code：8483600
  • Production Capacity：100000pieces
  • Package size per unit product：260.00cm * 250.00cm * 300.00cm
  • Gross weight per unit product：52.000kg

Description

680530,560Note:
1. The coupling mass and rotary inertia are approximation calculated by the minimum diameter and the maximum length of bore.
2. Bore diameter dz <140mm.
3. J1-type bore does not need shaft end baffle as required.
4. This standard applies only to old products.


♦Features
1. Tooth coupling has small radial dimension and large load-carrying capacity. It is often used for shafting transmission under low speed and heavy load conditions. Tooth coupling with       high accuracy and dynamic balance can be used for high speed transmission.
2. It has the ability to compensate the deviation of radial, axial and angular equiaxes.
3. It has compact structure, small turning radius, large bearing capacity, high transmission efficiency, low noise and maintenance cycle.

♦Product Show

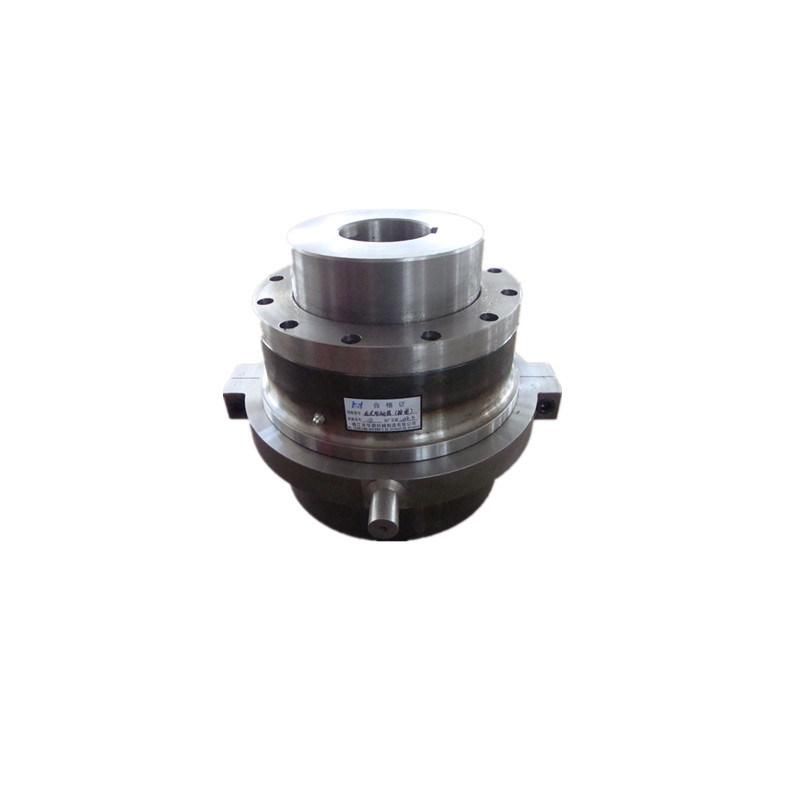

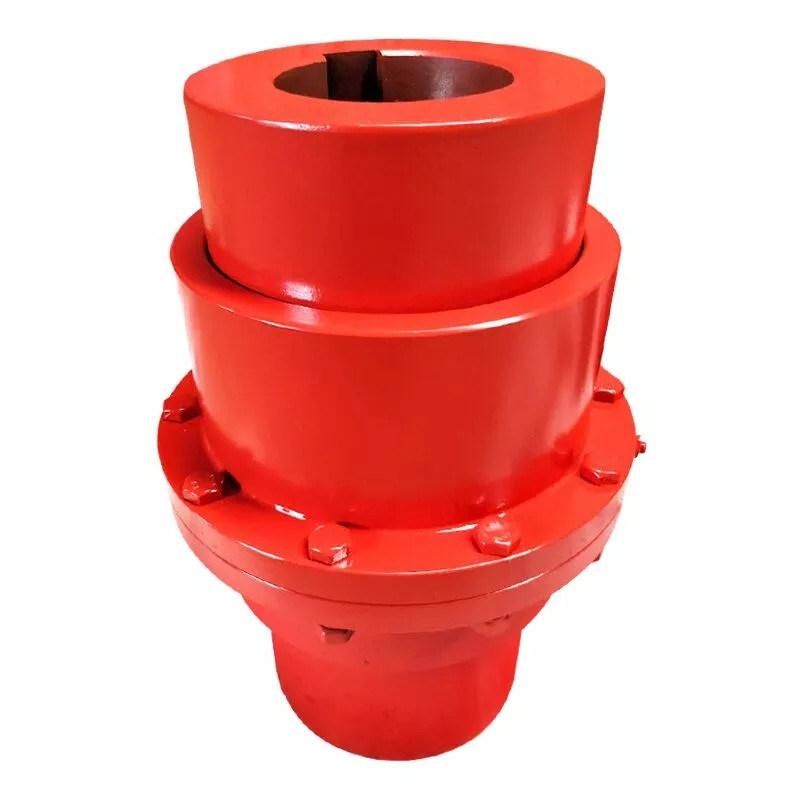

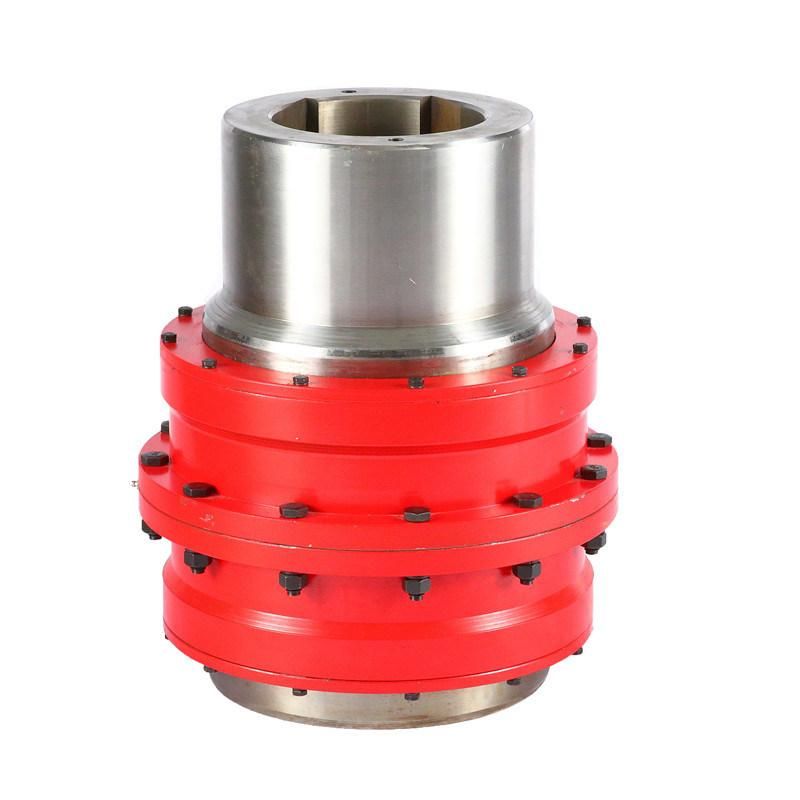

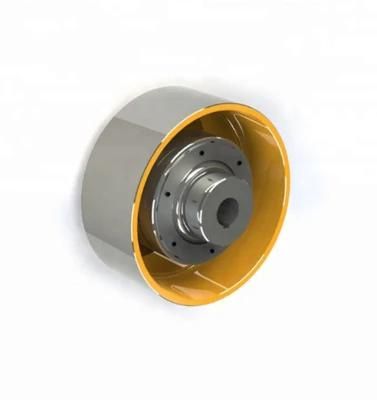

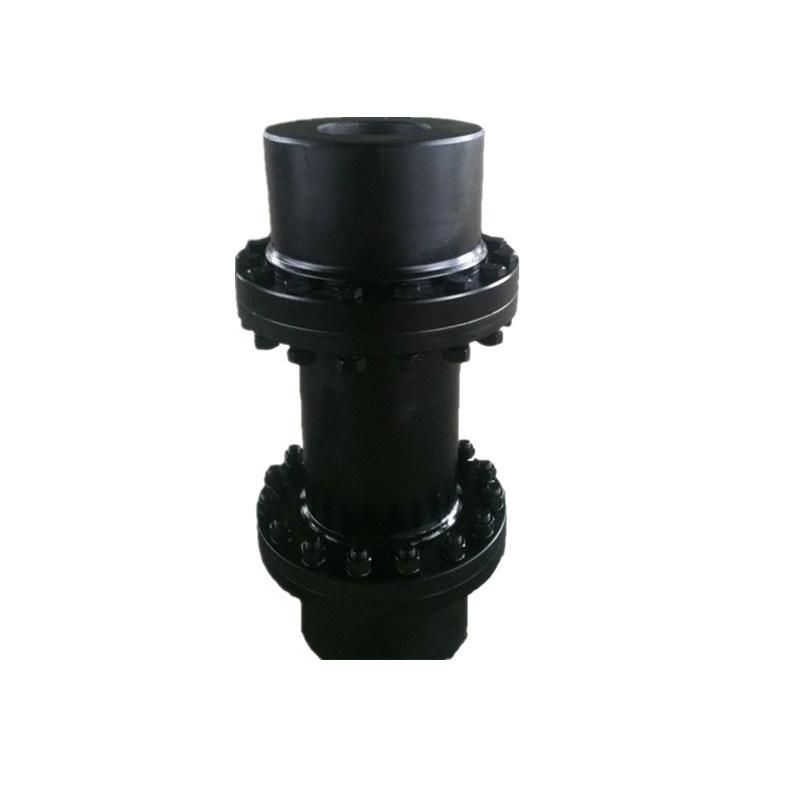

High Transmission Efficiency Keyed Cl Drum Gear Coupling
High Transmission Efficiency Keyed Cl Drum Gear Coupling


High Transmission Efficiency Keyed Cl Drum Gear Coupling
High Transmission Efficiency Keyed Cl Drum Gear Coupling

♦Other Products List
Transmission Machinery
Parts Name		Model
Universal CouplingWS,WSD,WSP
Cardan ShaftSWC,SWP,SWZ
Tooth CouplingCL,CLZ,GCLD,GIICL,
GICL,NGCL,GGCL,GCLK
Disc CouplingJMI,JMIJ,JMII,JMIIJ
High Flexible CouplingLM
Chain CouplingGL
Jaw CouplingLT
Grid CouplingJS

♦Our Company
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Welcome to customize products from our factory and please provide your design drawings or contact us if you need other requirements.

♦Our Services
1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing →Fashioning →Cleaning→ Assembly→Packing→Shipping

3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your need.

4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the market.

5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

♦FAQ
Q 1: Are you trading company or manufacturer?
A: We are a professional manufacturer specializing in manufacturing
various series of couplings.

Q 2:Can you do OEM?
Yes, we can. We can do OEM & ODM for all the customers with customized artworks of PDF or AI format.

Q 3:How long is your delivery time?
Generally it is 20-30 days if the goods are not in stock. It is according to quantity.

Q 4: Do you provide samples ? Is it free or extra ?
Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be deducted.

Q 5: How long is your warranty?
A: Our Warranty is 12 month under normal circumstance.

Q 6: What is the MOQ?
A:Usually our MOQ is 1pcs.

Q 7: Do you have inspection procedures for coupling ?
A:100% self-inspection before packing.

Q 8: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.

Q 9: What's your payment?
A:1) T/T. 2) L/C
