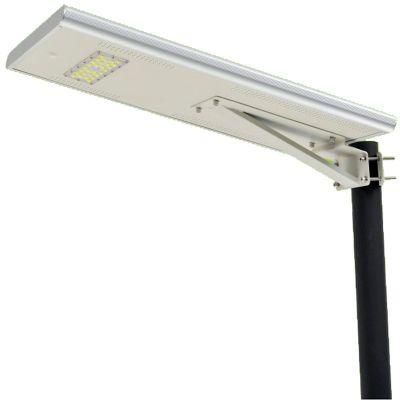

• Model NO.：SMLN-40W

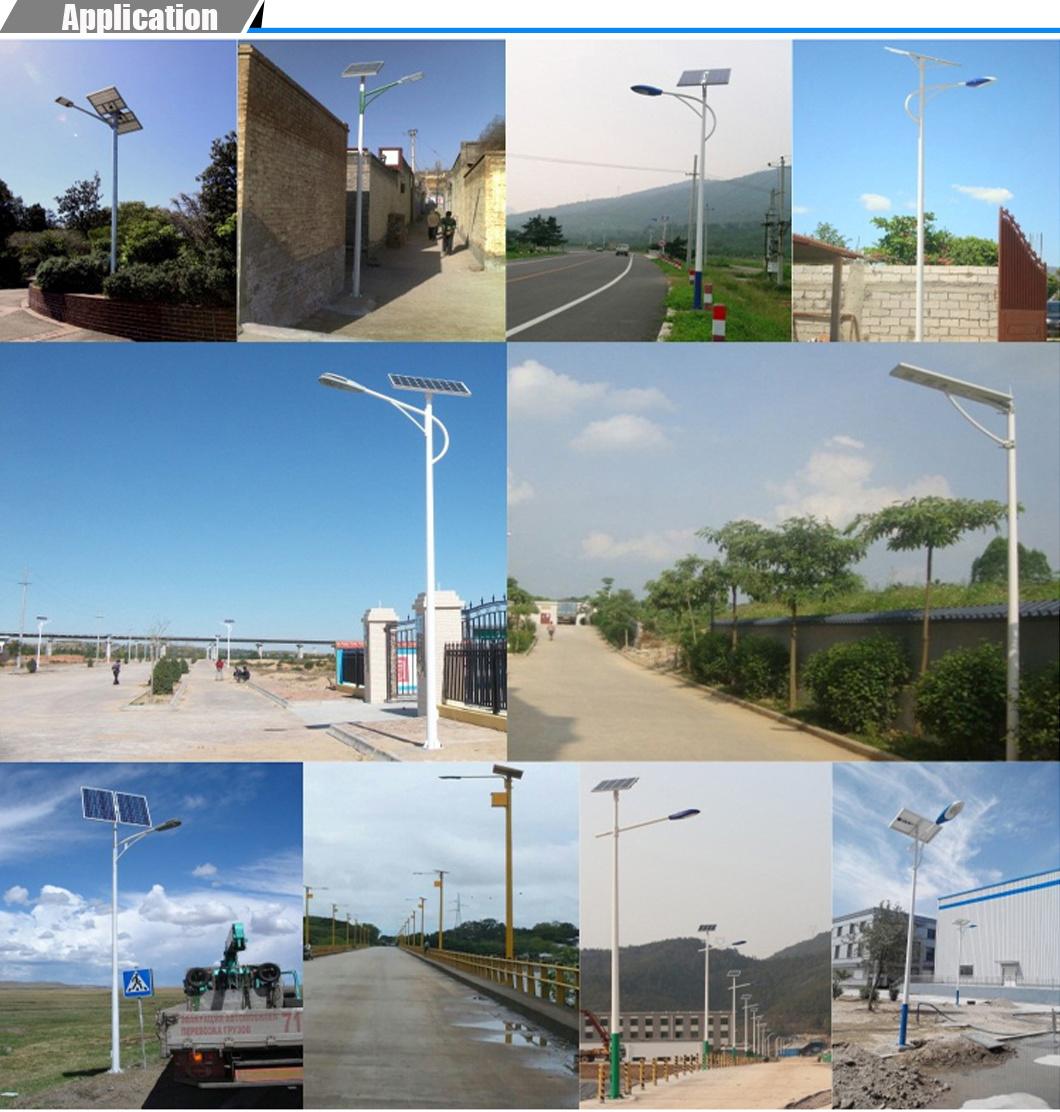

• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V

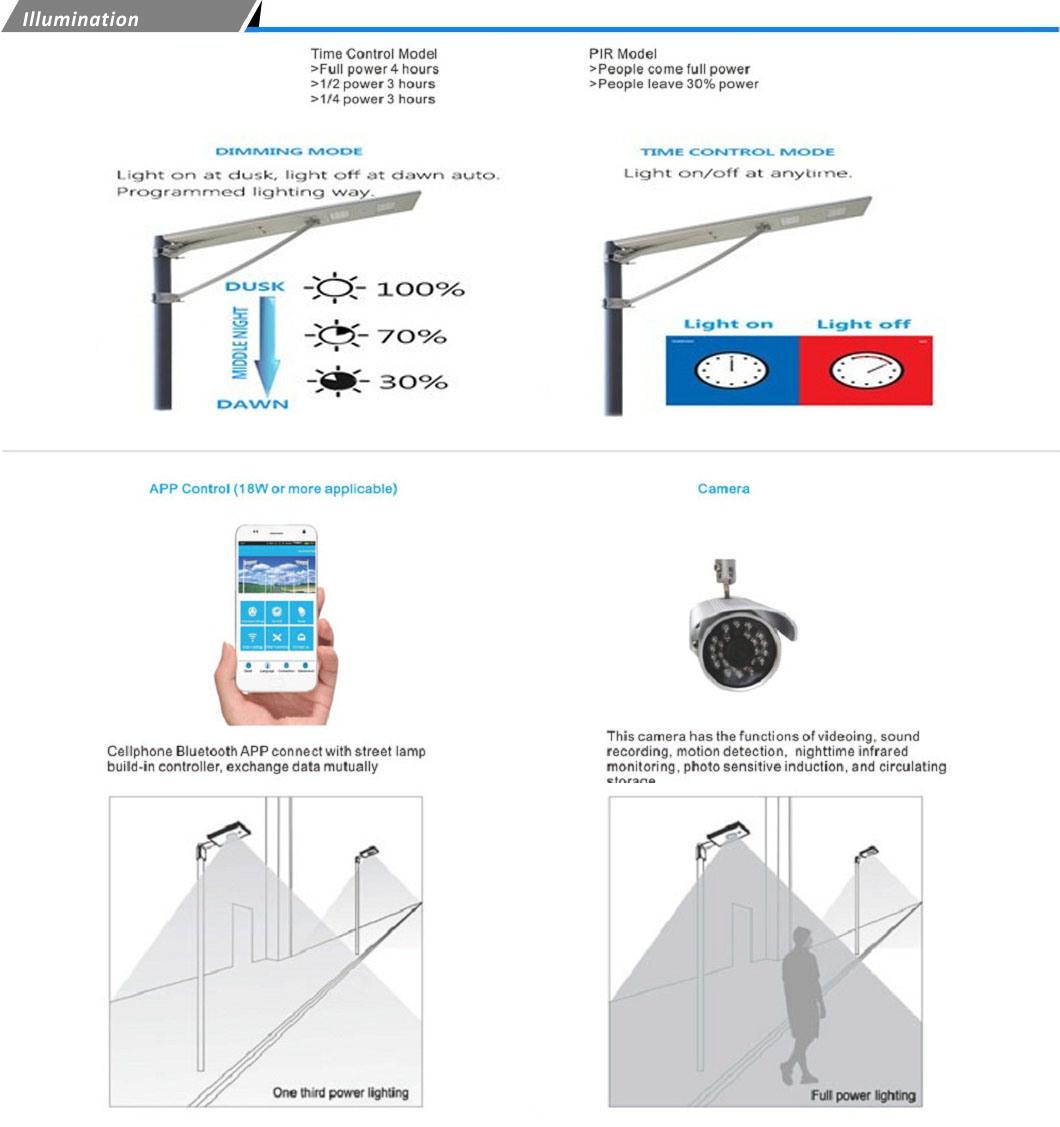

• Working Mode：Full Power and PIR Sensor
• Lighting Area：100m²
• Lighting Time：Over 4 Nights
• Controller：Available
• Back up Days：3 Days
• Maintenance：10 Years Free Maintenance
• Mounting Height：5m
• Battery：24ah
• LED Chip Brand：USA Bridgelux 210lm,W
• Solar Panel：60W
• Lamp Luminous Flux(Lm)：7200
• Distance Between Poles：10-15m
• Pole Height：6m
• Solar Cells：Mono or Poly High Efficiency A Grade
• Dim/Non-Dim：Both Can Do
• Transport Package：Carten
• Specification：886x450x140mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-40W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Working Mode Full Power and PIR Sensor Lighting Area 100m² Lighting Time Over 4 Nights Controller Available Back up Days 3 Days Maintenance 10 Years Free Maintenance Mounting Height 5m Battery 24ah LED Chip Brand USA Bridgelux 210lm/W Solar Panel 60W Lamp Luminous Flux(Lm) 7200 Distance Between Poles 10-15m Pole Height 6m Solar Cells Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Transport Package Carten Specification 886x450x140mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

Product Description

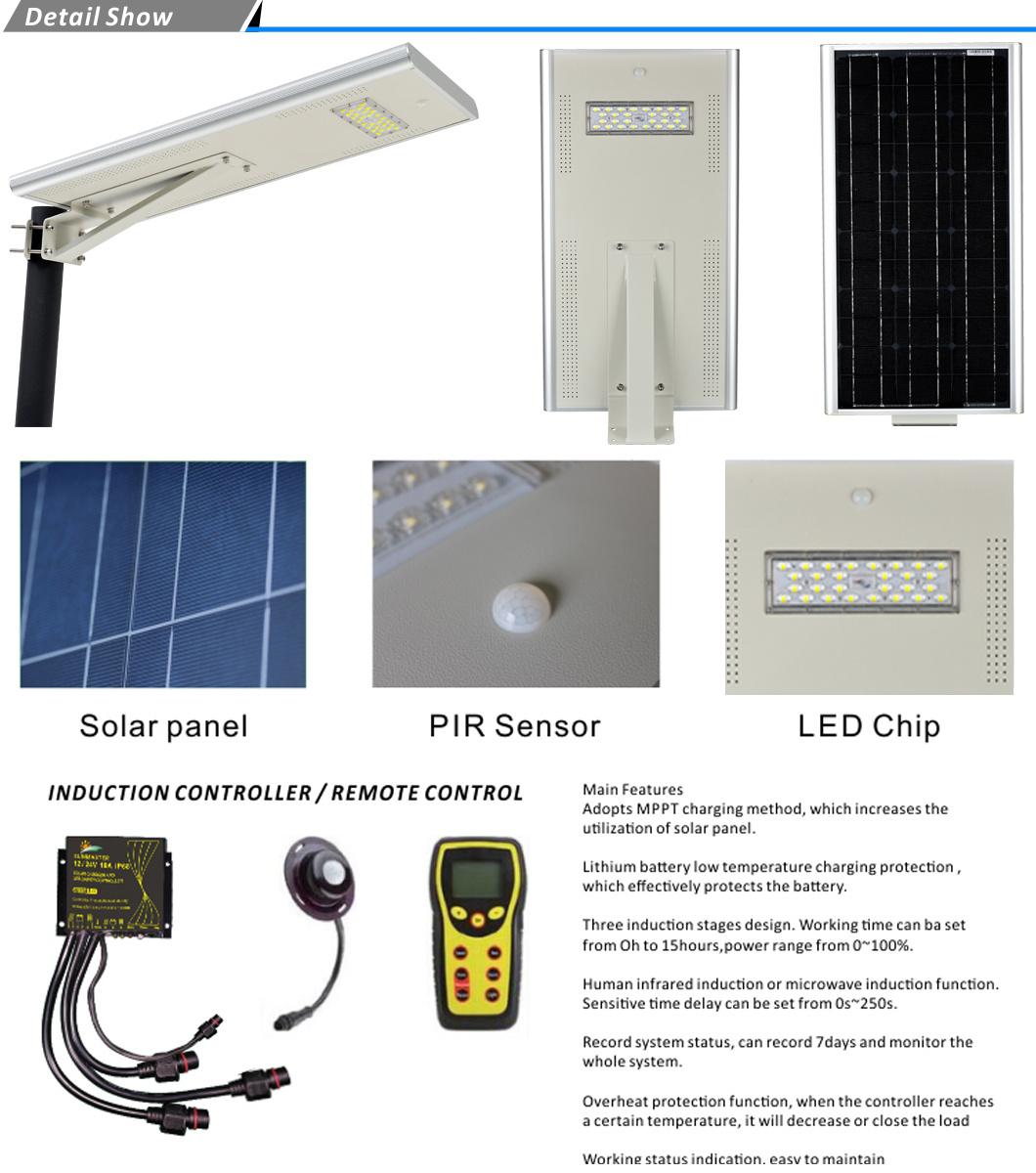

1.Material:heat-emission aluminum lamp body makes the lamp more durable.
2.Solar Panels:High efficiency A grade moudule produce more energy for the lamp in limited space.
3.Battery: LiFePO4 environmentally friendly material for longer lifespan.
4.LED Light:BRIDGELUX 210lm/watt LED chip, give brighter illumination.
5.Controller:MPPT type 15%-20% higher than normal PWM controller.
6. Lighting time:6 to 14 hours per day and 3 to 5 days backup.
7.Infrared Motion Sensor for intelligent lighting and energy saving.
8.Easy installation only needs 60 seconds and totally free maintenance.

Model NO.	SMLN-40W	Battery Type:	LiFePO4 27Ah/12.8V
Power:	40W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	886*450*140mm
Viewing Angle:	120	Packing Dimension:	940*510*200mm
Working temperature :	,-20 ~ +70	Product Weight	19kg
Lamp Efficiency:	70 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	6-7 m
Solar Panel:	18V 60W Mono-crystalalline	Warranty:	3 years
