• Model NO.：Helical Worm Gear-YY
• Output Speed：14-280rpm
• Input Speed：1450,960rpm
• Ratio：3.77~276.77
• Transport Package：Wooden Case
• Specification：F series
• Trademark：EPT
• Origin：Zhejiang China
• Production Capacity：500 Unit,Month

Basic Info.

Model NO. Helical Worm Gear-YY Output Speed 14-280rpm Input Speed 1450/960rpm Ratio 3.77~276.77 Transport Package Wooden Case Specification F series Trademark EPT Origin Zhejiang China Production Capacity 500 Unit/Month

Product Description

Helical Worm Gear Low Noise Cast Iron HT250 Ground Parallel Shaft Best Speed Reducer Gearbox Die Casting Lumen Good Price Nmrv High Efficiency Helical Worm Gear

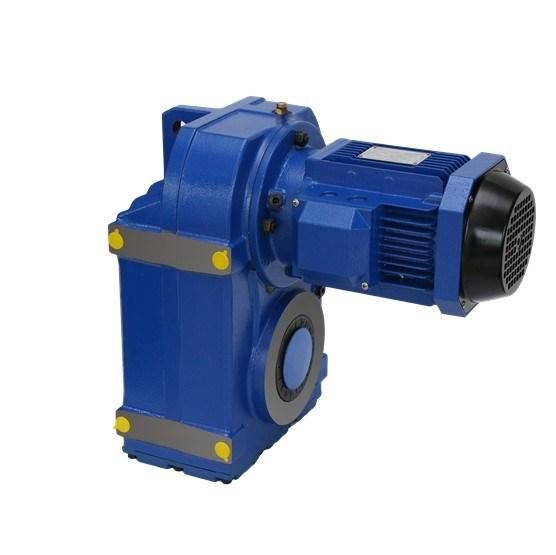

F series gear reducer is one kind of parallel shaft helical gear reducer , which consist of 2 or 3 stages helical gears (relate to gear ratio) in the same case . The hard tooth surface gear use the high quality alloy steel ,the process of carburizing and quenching, grinding ,which give it follow characters :Stable transmission ,low noise and temperature ,high loading ,long working lift . Wide application ,specialize in Metallurgy ,Sewage treatment,
Chemical Industry , Pharmacy ,Agriculture equipment and Oil industry.

Specifications:

1) Output speed: 0.6~1,028r/min

2) Output torque: up to 21700N.m

3) Motor power: 0.12~200kW

4) Mounted form: foot-mounted and flange-mounted mounting

Product Name	SLK Series  Rigid Tooth  helical bevel reducer
Gear Material	20CrMnTi
Case Material	HT250
Shaft Material	20CrMnTi
Gear Processing	Grinding finish by HOFLER Grinding Machines
Color	Customized
Noise Test	65~70dB
Efficiency	94%~98% (depends on the transmission stage)
Lubricating oil	Shell Omala synthetic oil or mineral oil , or similar brand
Heat treatment	tempering, cementiting, quenching,etc.
Brand of bearings	C&U bearing, ZWZ,LYC, HRB, SKF,NSK and so on
Brand of oil seal	NAK or other brand
Temp. rise (MAX)	40 °
Temp. rise (Oil)(MAX)	50 °
Vibration	≤20µm

company information
