• Model NO.：RPLT-6800
• Duty Stabiliser Legs：4*Manual or 4*Hydraulic
• Tyre Size：13 Inch
• Tow Hitch：Ring, Ball Hitch
• Total Power of Lamp：4*1000W
• Transport Package：Plywood Pallet , Plywood Case , Cartons
• Specification：ISO9001: 2000. CE
• Trademark：Robust Power
• Origin：China
• HS Code：94054090
• Production Capacity：250sets,Month

Basic Info.

Model NO. RPLT-6800 Duty Stabiliser Legs 4*Manual or 4*Hydraulic Tyre Size 13 Inch Tow Hitch Ring/ Ball Hitch Total Power of Lamp 4*1000W Transport Package Plywood Pallet / Plywood Case / Cartons Specification ISO9001: 2000. CE Trademark Robust Power Origin China HS Code 94054090 Production Capacity 250sets/Month

Product Description

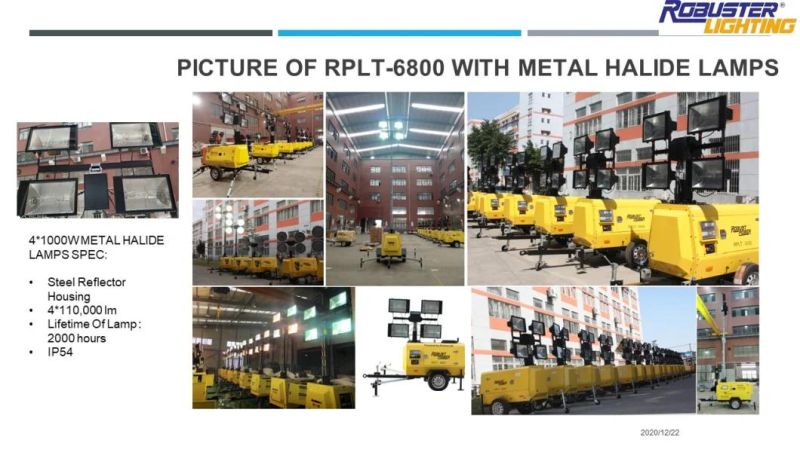

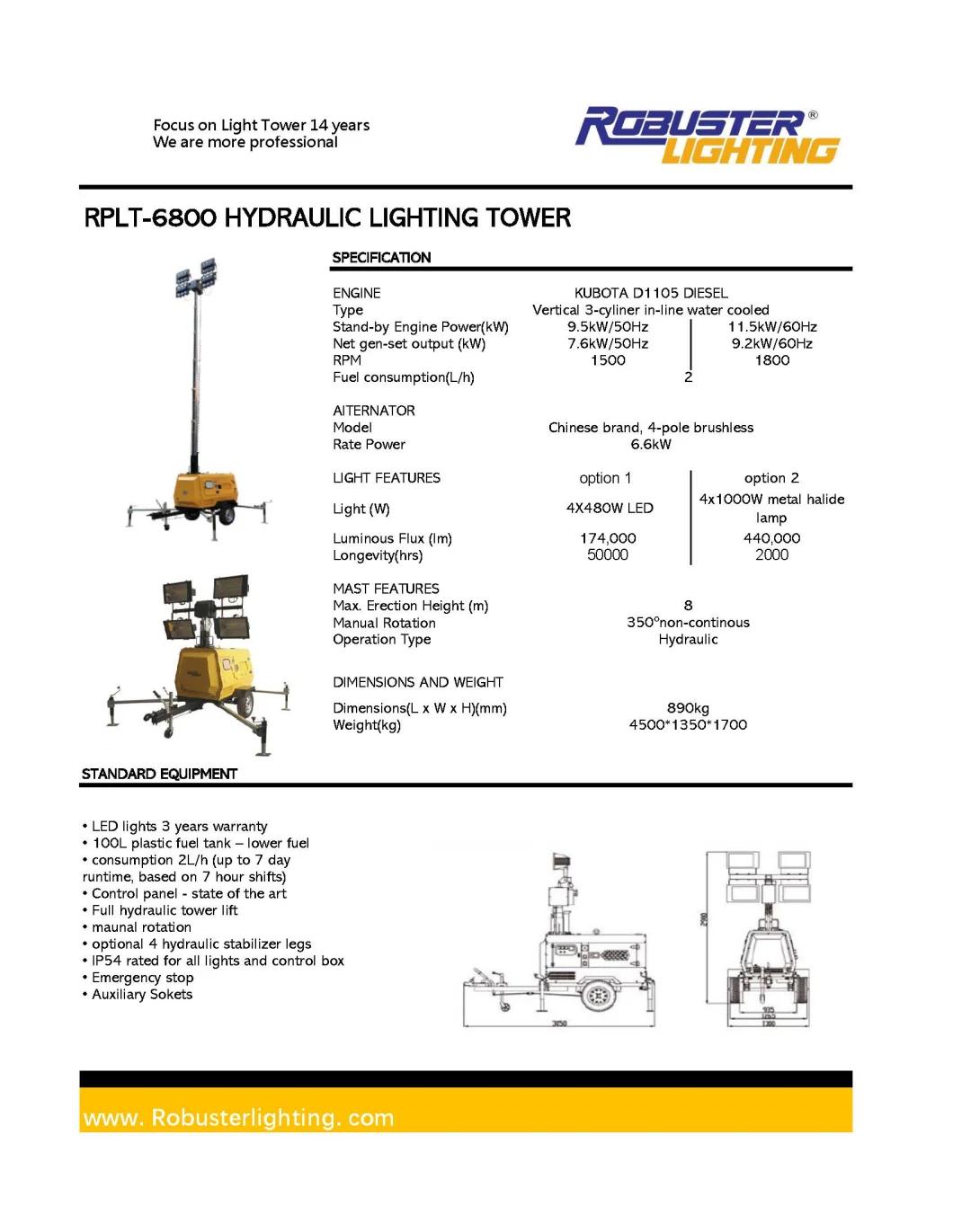

Diesel Light Tower Powered (RPLT 6800)
1. Hydraulic
2. Compact structure.
3. Engine is KUBOTA.
4. Easy Maintenance.

Model	RPLT6800K
Maximum  extension  of  mast	8  m
Raising/lowing  mast	Hydraulic
Turning  angle  of  light  bar	360  degrees
Power  of  lamps	4× 1000  watts
Type  of  lamps	Metal  halide  lamps
Generator  model	RD-10K
Engine  model	KUBOTA  D1105-BG  Diesel
Engine  type	3  cylinder, in-line, water-cooled
Engine  Aspiration	Natural
Alternator  type	4-pole, brushless, self-excitation
Rated  power	6.7 KW/50HZ    8.4 KW/60 HZ
Maximum  power	7.4 KW/50HZ    9.2 KW/60 HZ
Frequency	50 / 60 HZ
Phase	Single
Starting  system	12VDC
Fuel  tank  capacity	100  L
Continuous  operating  time	60  hours
Retracted  dimension	2560× 1300× 2450  (L× W× H  mm)
Net  weight	850  kg
Container  load  quantity	6  units  /  20ft    12  units  /  40ft
Options
Alternator	Leroysomer  or  Stamford
Engine	Perkins(UK)
Trailer(for option)	AL-KO(Germany)
