• Model NO.：P6 mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：800W,Sqm
• Pixel Density：27777dots,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ISO9001, CB, FCC
• Screen Size：Custom Made
• Brightness：6000CD
• Applacation：Outdoor Advertising
• Refresh Rate：1920Hz,3840Hz
• Best View Distance：>5m
• Life Time：100, 000hours
• Module Size：192mm*192mm
• Cabinet Material：Steel
• Cabinet Size：960mm*960mm
• Warranty：2years
• Delivery Time：15days
• Transport Package：Wooden Case or Flight Case, 1135mm*1235mm*550mm,
• Specification：P6 outdoor
• Trademark：QC
• Origin：China
• HS Code：8528591090
• Production Capacity：3000 Square Meter,Square Meters , Month
• Package size per unit product：110.00cm * 30.00cm * 116.00cm
• Gross weight per unit product：55.000kg

Basic Info.

Model NO. P6 mm Pixel Configuration 1R, 1G, 1B Display Function Video Display, Image & Text Display, Text Display, Market Display Average Power Consumption 800W/Sqm Pixel Density 27777dots/Sqm Scanning Mode 1/8 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ISO9001, CB, FCC Screen Size Custom Made Brightness 6000CD Applacation Outdoor Advertising Refresh Rate 1920Hz/3840Hz Best View Distance >5m Life Time 100, 000hours Module Size 192mm*192mm Cabinet Material Steel Cabinet Size 960mm*960mm Warranty 2years Delivery Time 15days Transport Package Wooden Case or Flight Case, 1135mm*1235mm*550mm, Specification P6 outdoor Trademark QC Origin China HS Code 8528591090 Production Capacity 3000 Square Meter/Square Meters / Month

Packaging & Delivery

Package size per unit product 110.00cm * 30.00cm * 116.00cm Gross weight per unit product 55.000kg

Product Description

Technical Parameters:

Pitch size	6 mm
Pixel configuration	1 Red, 1 Green ,1 Blue, SMD 3-in-1
Cabinet solution(W*H)	160 dots * 160dots
Pixel density	27777 dots/sqm
Cabinet size(W*H)	192 mm*192mm
Brightness(average)	≥6000 cd/ sqm
View angle(H/V)	H/V  160/140 degree
Power consumption	100 W/sqm ~ 1200 W/sqm
Net weight	<45 kg/sqm
Voltage	220V/110V±15% 50/60 Hz
Color scale	256~65536 degree /1.07 billion colors
Display mode	VGA 640X480-VGA 1600X1024
Life span	≥100,000 hours
Refresh frame frequency	≥1920 HZ/3840Hz
Exchange frame speed	>150 frames per second
Control distance	≤100M (Cat.5 without repeater) /500 M (multi-mode optical fiber)/20000m(single-mode optical fiber)
Operating temperature	-25°C~+60°C
Operating humidity	10%-95% RH
Software	LEDstudio
Best view distance	>5m
Communication port	VGA
Control mode	Synchronous,  real time with PC/video processor
Drive mode	Constant current driving
Protection of power supply	Overtemperature, overcurrent, overvoltage  etc.
Operating system	Windows series
Brightness adjustment	100 levels automatically or by hand
Drive mode	1/8 scan, constant current

Other products:
Indoor fixed LED screen: P1.53,P1.875,P2,P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P2.5,P2.976,P3, P3.91, P4, P4.8, P4.81, P5, P6
Outdoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Outdoor rental LED screen:P3, P3.91, P4, P4.8, P4.81, P5, P6, P8, P10
Small pitch LED screen: P1.25, P1.53
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P4, P5, P6, P8, P10
LED poster player: P1.875, P2.5, P3, P4, P5, P6, P8, P10

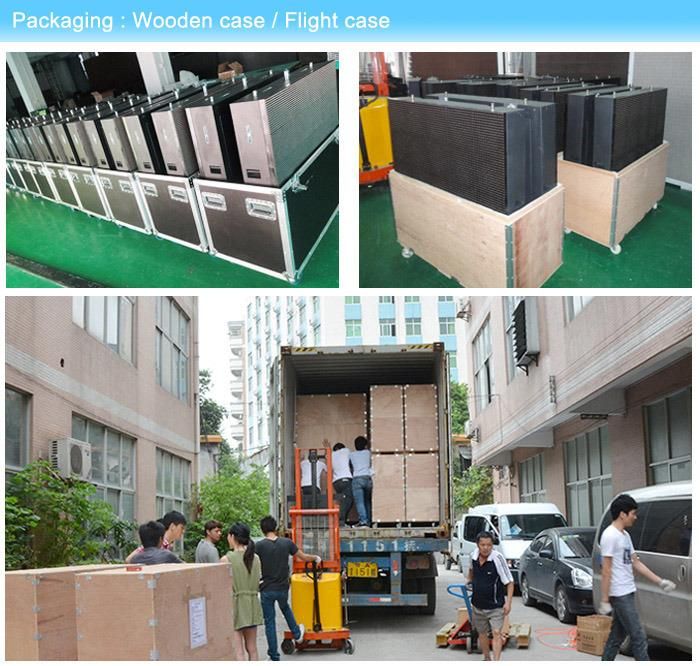

Packing & Shipping


Our Services
OUR COMPANY provides on site product installation, debugging and maintenance service for our LED display. Such as:

1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.

2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.

3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.

4) Under normal use and storage, Our Company will be responsible for the equipment.

2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time.  Any problems caused by natural factors or man-made, we will discuss with client to find solutions.

2) Our company can train the users based on the manual.  The training include system use, system maintenance and equipment protection


FAQ:
Why choose Guangzhou Qichuang Electronic & Technology Co., Ltd.

1),Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system and play a variety of information like video, word, flash, music, clock, graph etc.

2),High brightness and support brightness automatically adjustment.

3),Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon;

4),Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system;

5),Rich outdoor full color LED display screen engineering experience both in domestic and international market.

6),Well before, in,after-service.all for our customer reassurance.
