• Model NO.：LW-RI 3
• System Operating Platform：Win7,8etc
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, CCC
• Cabinet Size：576X576X80mm
• Weight：6.0kg,Panel
• LED Type：2020
• Compliant Standard：CCC,Ce,RoHS,FCC
• Scan：1,4 Scan
• Brightness：2500CD,M2
• Transport Package：Air Box & Carton Box & Wooden Box
• Specification：CCC, CE, RoHS, FCC
• Trademark：LED World
• Origin：Shenzhen Guangdong, China.
• HS Code：8528591090
• Production Capacity：2000sq. M,Month

NumbersTechnical indexesSpecificationSpecification1Pixel pitch3mm6mm2Module size192mm×192mm192mm X 192mm3Module resolution64×6432 X 324Module density111111dots/sqm27777dots/m25Pixel configurationRGB,3 in 11R1G1B6Red wavelength625±2nm625±2nm7Green wavelength525±2nm525±2nm8Blue wavelength470±2nm470±2nm9Colors167772161677721610Best viewing distance3m---15m≥6m11Horizontal viewing angle140°140°12Vertical viewing angle120°120°13Maximum power consumption1200W/sqm1200W/sqm14Average power consumption600W/sqm600W/m 215Brightness2500cd/sqm,adjustable2200-3500cd /m 216Gray scale16bits of per color16bits per color17Driving method1/4scanning1/8 or 1/16 scanning19Frame frequency60Hz60Hz20Refresh frequency300 Hz350 Hz21Working voltageAC220V/110V±10%AC220V/110V±10%22IP grade IP20-45 IP20-4523Working temperature-20°C~80°C-20°C~80°C24MTBFMore than 10,000 hoursMore than 10,000 hours25Life spanMore than 100,000hoursMore than 100,000hoursApplications:Business Organizationssuper market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.Financial Organizationsbanks, security company, insurance company, post office, hospital, school, etc.Public Placessubway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.Entertainmentsmovie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc.
Company profile
Since it was founded in 2009, our company has been committed to the production and development of SMD LED display screen , today, our company with rich experience and stable quality in the field of SMD screen has won many customers!
It is no doubt about the quality of our products, this has been got a lot of customer's affirmation, but this is not enough, Our perfect service has won the many customers long-term cooperation is our most proud of things.Our sales elite are  professional training, familiar with basic knowledge of product and display control system , once you have any questions about before or after sales, they will take out the solution as soon as possible, and give you the most reasonable suggestion, the greatest degree of saving your time.

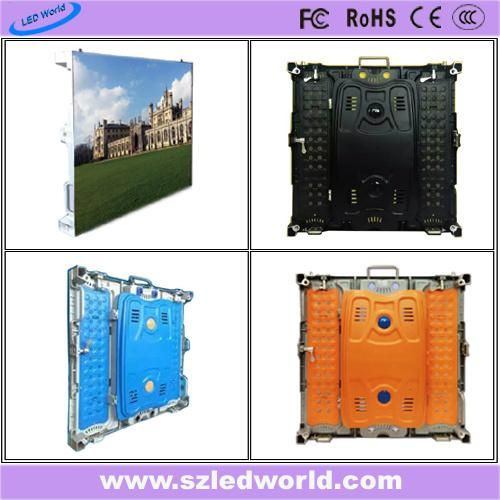

Product detail:

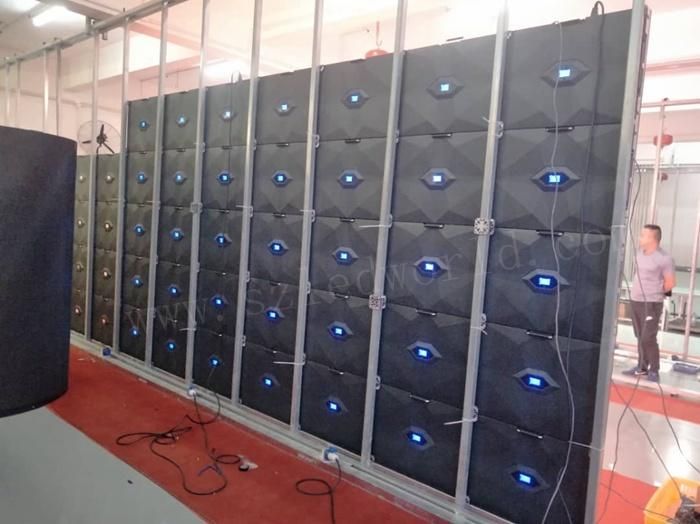

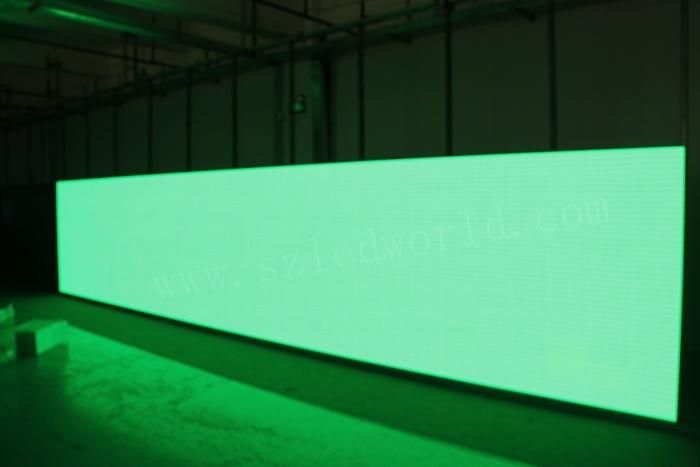

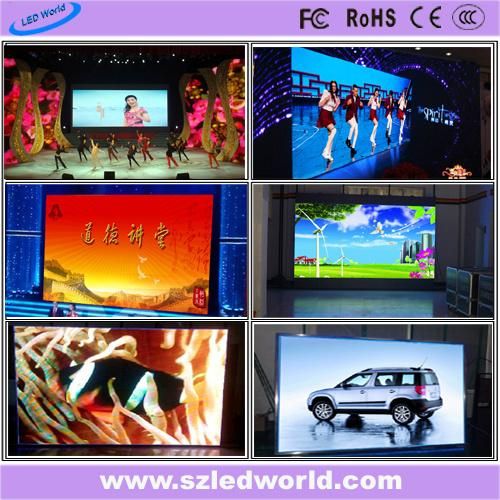

project case:

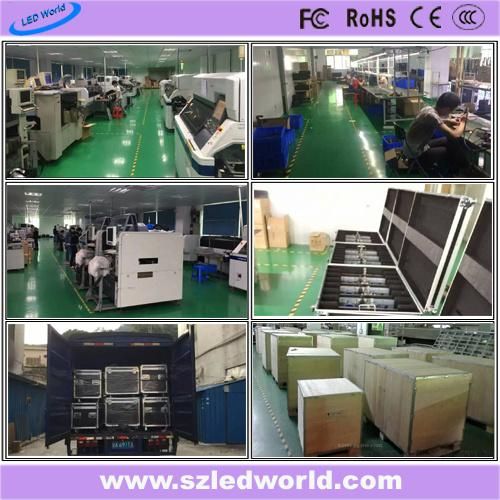

workshop and package:

Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China
5. Warranty time: 2years
6. Delivery time: 10-25 working days
