Cycloidal Reducer for Crusher, Sugar Cane Knives
Dongguan Hongshun Furniture Accessories Co., Ltd.- Application：Machinery, Industry
- Hardness：Soft Tooth Surface
- Installation：Horizontal Type
- Layout：Cycloidal
- Gear Shape：Bevel Gear
- Step：Single-Step
Base Info
- Model NO.：BLD
- Type：Circular Gear
- Single-Stage Transmission Ratio：7 - 87
- Twin-Stage Transmission Ratio：99 - 7569
- Combination of Multi-Stage Transmission：8041 - 658503
- Single-Stage Transmission Efficiency：0.85
- Win-Stage Transmission Efficiency：0.72
- Material：Cast Iron
- Manipulate Way：Robotics
- Manufacturing Method：Cast Gear
- Toothed Portion Shape：Planetary
- Changes Way：Planetary
- Transport Package：Plywood
- Origin：Jiangsu
- HS Code：8483409000
- Production Capacity：200000set,Year
Description
ModelPower P(kW)ratio
(i)Rotate speed
N(RPM)Output torque
T (N. m)09#-9#0.12 - 907 -65000017-155top to 30000
Features
- Highly Standard Modular Designed
- Quality material ensures the product reliability
- High Strength,Compact Dimension
- Long Service Life
- Low Noise
- High Efficiency
- Large radial loading ability
- Axial load ability of up to 5% of radial load
Application examples
- Belt conveyor drives
- Bucket elevator drives
- Agitator drives
- Hoisting gear drives
- Travelling gear drives
- Paper machine drives
- Dryer drives
- Water screw drives
Installation

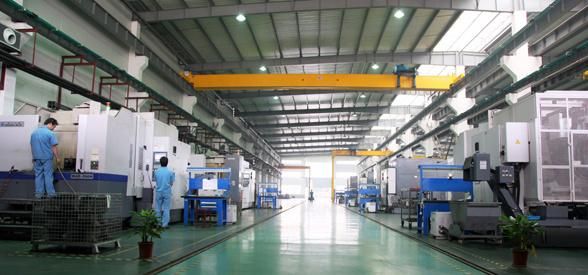

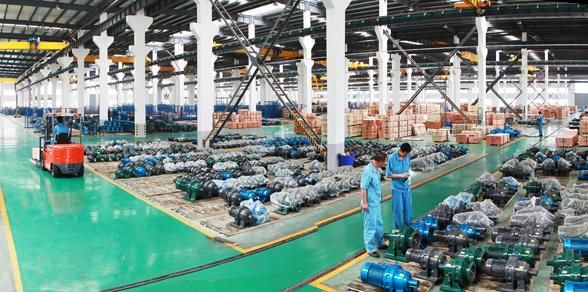

Plant
Office Block
Team
