• Model NO.：LM3014-WN120-WW-24V
• LED Supplier：Honglitronic,Osram,Samsung
• LED smaterial：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：10mm
• PCB material：Double-sided coated pure copper
• Adhesive Tape：9495 3000LSE 3M tape
• PCB thickness：2Oz(front 35um,back 35um)
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：Neutral Packing, OEM Packing Are Available
• Specification：CE, RoHS, FCC
• Trademark：LEOMAY
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000 Meter,Day

Basic Info.

Model NO. LM3014-WN120-WW-24V LED Supplier Honglitronic/Osram/Samsung LED smaterial packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 10mm PCB material Double-sided coated pure copper Adhesive Tape 9495 3000LSE 3M tape PCB thickness 2Oz(front 35um,back 35um) IP Grade IP20/IP60/IP65/IP68 Transport Package Neutral Packing, OEM Packing Are Available Specification CE, RoHS, FCC Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 10000 Meter/Day

Product Description

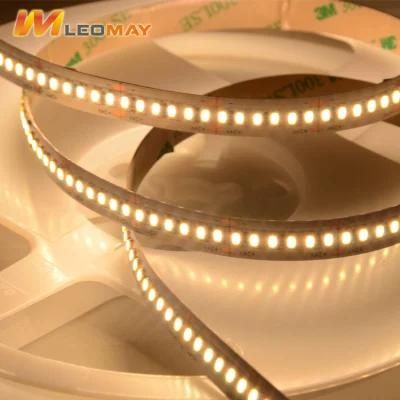

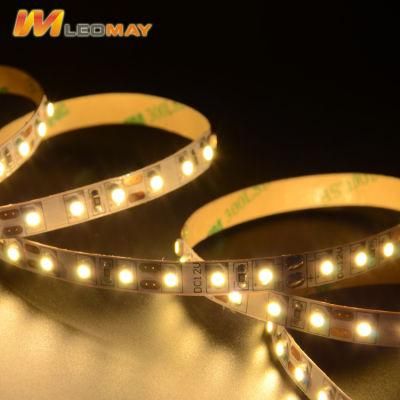

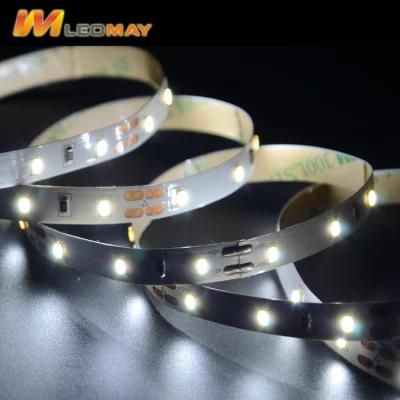

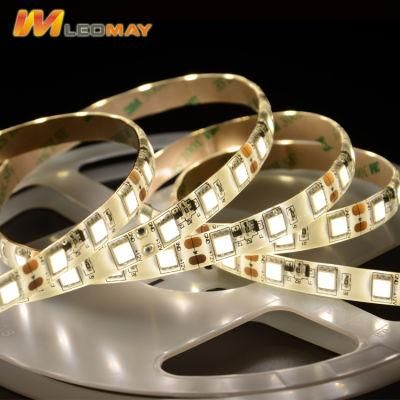

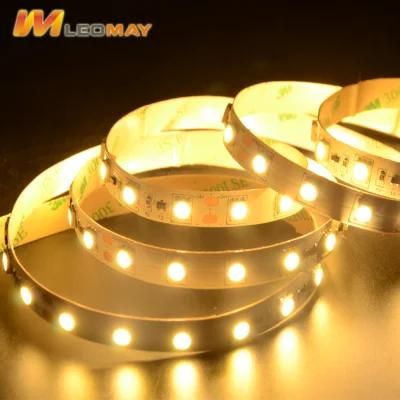

China Factory Price 5050/3014 IP20 Multi Color LED Backlight Strip

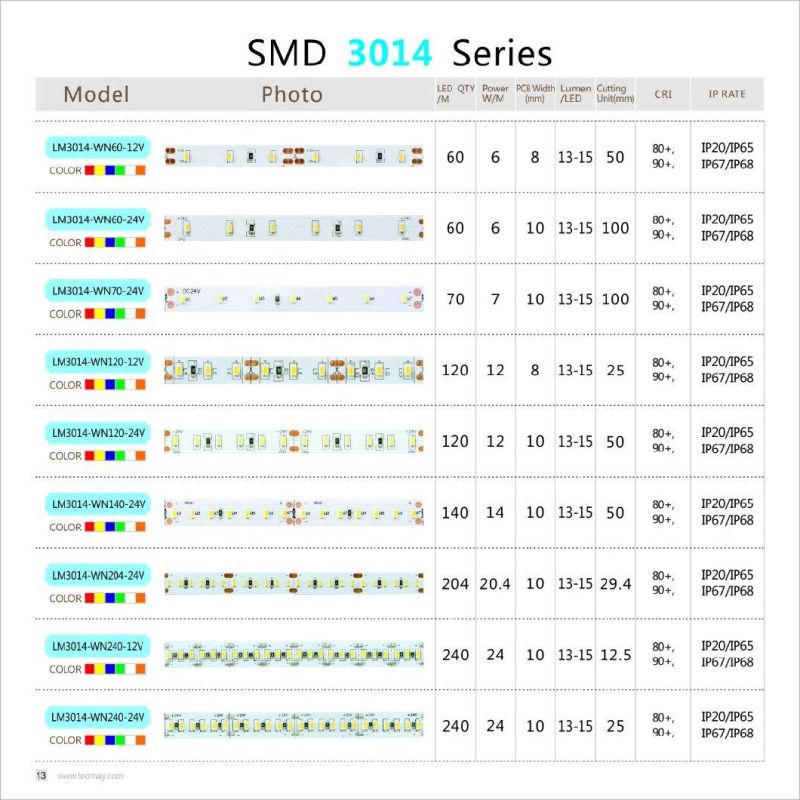

Model No.	LM3014-WN120-WW-24V
LED Qty	120leds/m
Rated Power(W)	12W/M
Voltage(V)	24V DC
PCB Width	10MM
PCB materials	2Oz Double-sided coated pure copper
LED Chip Brand	Sanan(Epistar optional)
LED's material	Packaged by 99.99% pure gold wire
LED Bins	3-Step/5-Step, same BIN for each order
LED Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Temperature	2200K, 2700K, 3000K, 3500K, 4000K, 6000K, 7000K

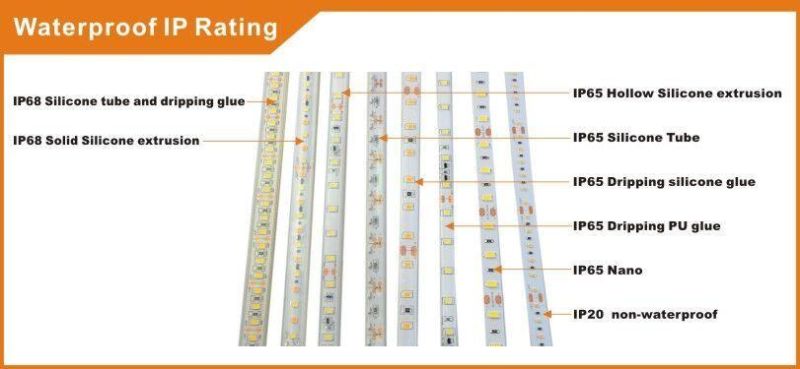

IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120°
Product Size(mm)	10*5000mm
Package(m/roll)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	6 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL, CE, RoHs, FCC
Warranty	3 Years

Features

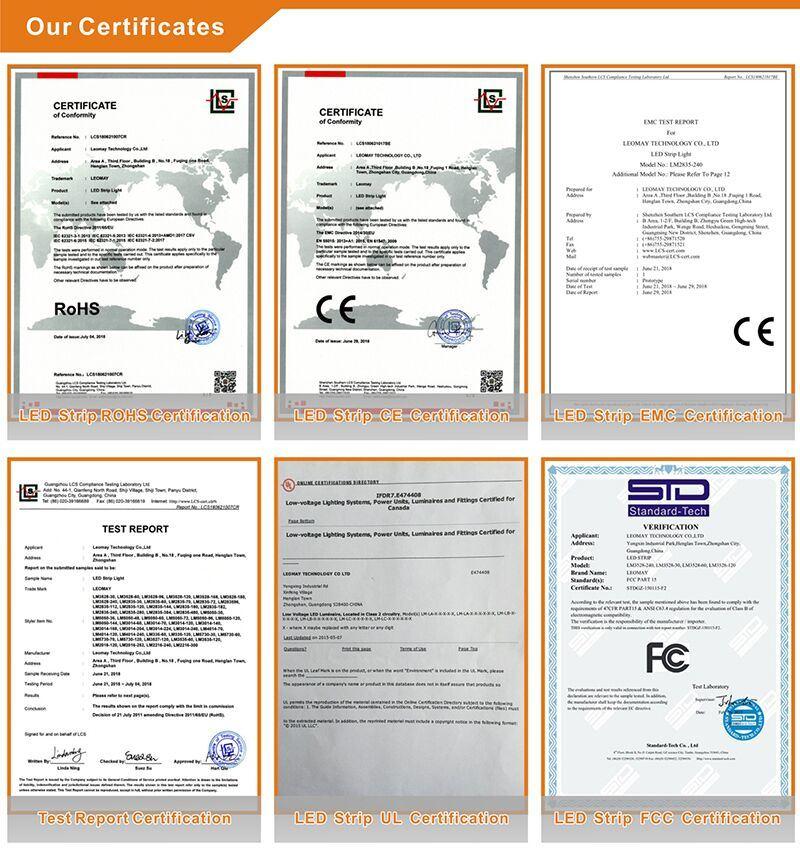

a. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.

b. Reliable SMD Source, Epistar. SMD 3014, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.

c. Operating low voltage ( DC24V) for human safety.

d. Energy saving and environmental conservation, long lifespan.



Our services

We can help All our Customer in Instaling, Design, and Accessory Free.

Our all customer know: our Connector, Install Cips, Wires, is free with Orders.

Any questions when using , we always fast replys with the professional methods.

The Shipping from us, very fast, because when we know the Normal prodcuts you often ordered.

We will do stock produce.

We are Very Honest and Careful factory direct sell the products.

So All products is tested very good and Packing very strong.

We are will be Your Most professional And cheapest, Fastest Suppier

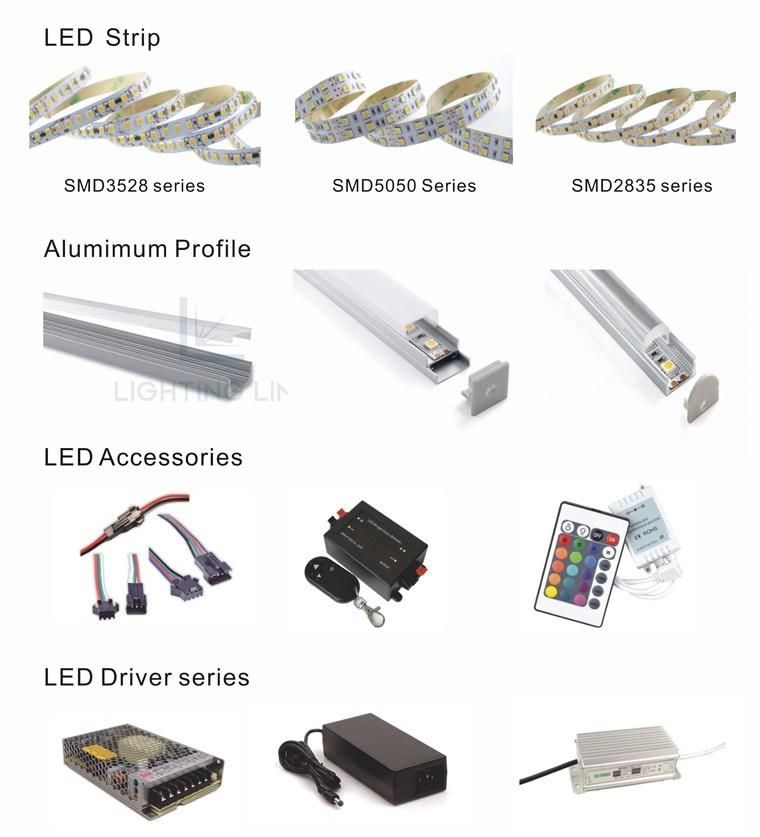

  Main Products




Applications

a. Indoor and outdoor decoration lightings.

b. Large scale backlight.

d. Window display lighting.

e. Building contour decorative lighting.

  Delivery&Package

 LED strip Normal length: 5meters/roll, in a anti-static bag.

Our Box Size for 80rolls 10MM width Led strip and 12MM width 50rolls per box

Size:46CM*35CM*25CM

50Rolls led strip in 1 Box, the weight: 10.5±0.5KG/BOX

We have Many customers in Different Place, and have the Cooperate Shipping Company

Very honest and good service many years cooperations.

We can provide the shipping company to Customers, or we will Pay for the shipping Company Instead!

Our shipping Way Including DHL International Express.







  Company Information

About Leomay

Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.

Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.

As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.





  FAQ

Q1: What is the Warranty for the LED strip?

A1: For the led strips, we have 2 years warranty. If any quality problems on our side occured in this period, we will take on the shipping cost and replacement.


Q2: What is colour temperature?

A2: Perfect-LED's LED Lighting offer LED strips in warm, natural, pure and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is, the warmer the light given by the LED:

Warm white = 2700K-3000K

Natural white = 4000K-4500K

Pure white = 6000K-6500K

Cool white = 9000K-17000K


Q3: What is CRI?

A3: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost. For LED strips ,the CRI is mostly 70-75Ra,and 80Ra with higher cost.But there are some suppliers write a high data to attract clients,please note.


Q4: What is the DC Voltage tolerance for our LED strips?

A4: The DC voltage tolerance is +/- 10%.


Q5: Do your LED strips emit UV light?

A5: No. But you should never point an LED light into your eyes. The light is very bright and could cause damage.


Q6:Is there cheap shipping cost to import to our country?

A6: For small order,express will be best.And for bulk order,sea ship way is best but take much time.

For urgent orders,we suggest via air to airport plus our ship partner send to your door.


Q7:Can we get support if we have our own market position?

A7: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
