40W Solar Street Light with APP Web Control System

Wuxi Box Imp & Exp Co., Ltd.
  • Light Source：LED Lamp
  • Lamp Body Material：Aluminum Alloy
  • Light Type：Solar
  • Color Temperature：2700K - 6500K
  • Power：40W
  • Technics：Hollow-carved

Base Info

  • Model NO.：RF906-02
  • Illumination Time：11h
  • Cell Type：Life Po4 Battery
  • Charging Time (H)：6
  • Usage：Garden, Street, Road Lighting, Countryside Lighting
  • IP Rating：IP66
  • Certification：CE, RoHS, TUV
  • Voltage：12,24V
  • With Light Source：With Light Source
  • Warranty：5 Years
  • Protocol：Lorawan,GPRS,4G
  • Ik：09
  • Type：All in One
  • with Remote Control：Yes
  • with PIR Sensor：Yes
  • with Microwave Sensor：Yes
  • with APP Control：Yes
  • Transport Package：Carton
  • Specification：980*455*180
  • Trademark：Neutral brand
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：500000PC,Year

Description

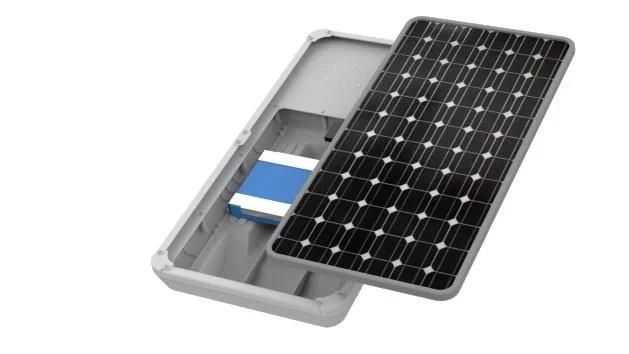

40W Solar Street Light with APP Web Control SystemLithium iron phosphate battery

Intelligent controller and sensor

Monocrystalline solar panel

Waterproof apron

Product parameters
ITEMRF-906-01RF-906-02RF-906-03RF-906-04RF-906-05
Solar Panel ParametersMonocrystalline 18V 40WMonocrystalline 18V 50WMonocrystalline 36V 60WMonocrystalline 36V 80WMonocrystalline 36V 100W
Battery ParametersLiFePO4 12.8V 18AHLiFePO4 12.8V 24AHLiFePO4 25.6V 16.5AHLiFePO4 25.6V 18AHLiFePO4 25.6V 22AH
System Voltage12V12V24V24V24V
LED BrandLumiledsLumiledsLumiledsLumiledsLumileds
Light DistributionII-S, II-M, III-MII-S, II-M, III-MII-S, II-M, III-MII-S, II-M, III-MII-S, II-M, III-M
CCT2200K~6500K2200K~6500K2200K~6500K2200K~6500K2200K~6500K
Charge Time6 Hours6 Hours6 Hours6 Hours6 Hours
Working Time2-3 Days
(Auto Control)		2-3 Days
(Auto Control)		2-3 Days
(Auto Control)		2-3 Days
(Auto Control)		2-3 Days
(Auto Control)
Protection GradeIP66, IK09IP66, IK09IP66, IK09IP66, IK09IP66, IK09
Luminous Efficiency170Lm/W170Lm/W170Lm/W170Lm/W170Lm/W
Operating Temperature-20ºC to 60ºC-20ºC to 60ºC-20ºC to 60ºC-20ºC to 60ºC-20ºC to 60ºC
Warranty5 Years5 Years5 Years5 Years5 Years
MaterialAluminumAluminumAluminumAluminumAluminum
Luminous Flux5100 lm6800 lm8500 lm10000 lm13600 lm
Nominal Power30W40W50W60W80W
As the Market Similar Solar Light Power40W50W-60W60W-70W80W100W

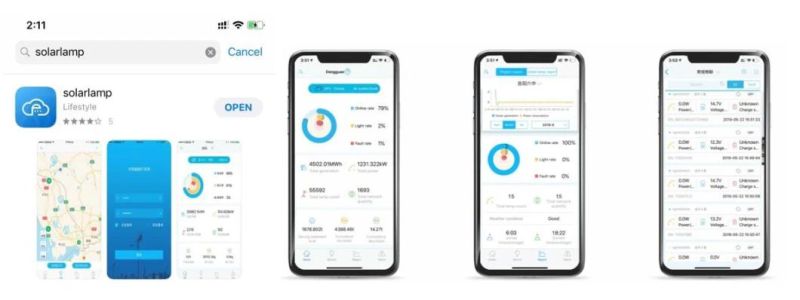

 Remote control accesses40W Solar Street Light with APP Web Control Systemwith App for both android and ios system

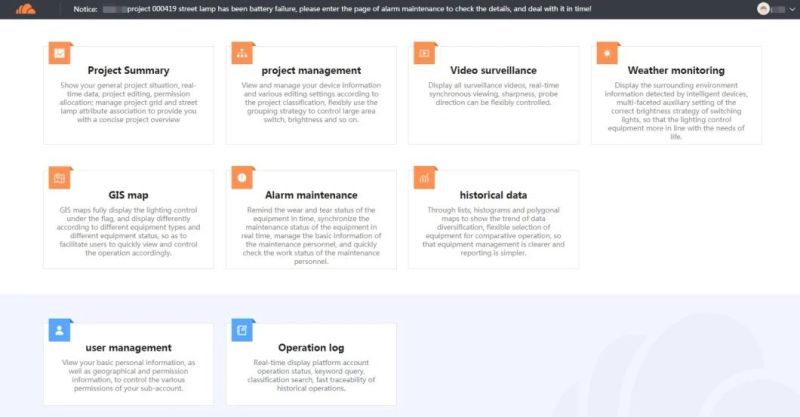

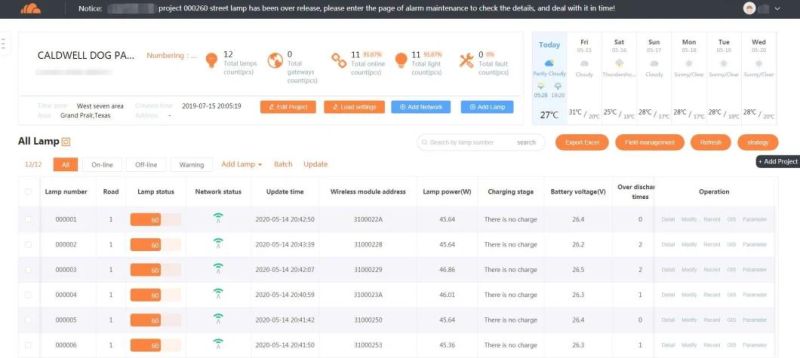

40W Solar Street Light with APP Web Control System40W Solar Street Light with APP Web Control Systemwith web system

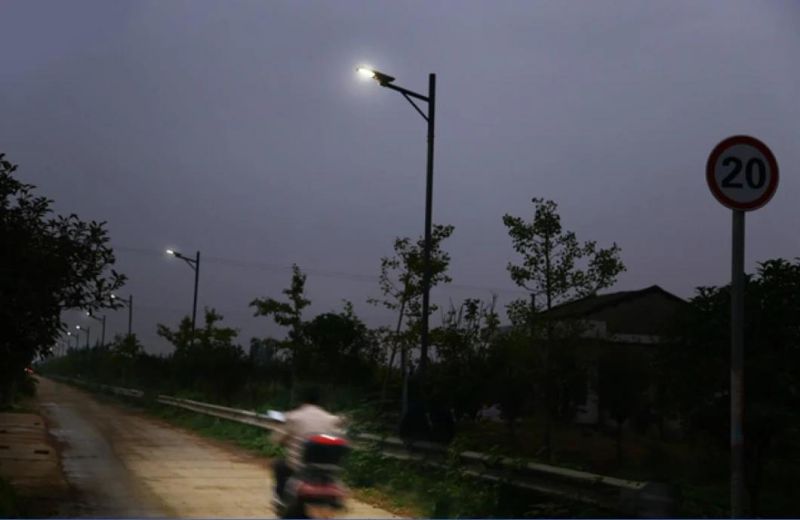

 Practical Application
40W Solar Street Light with APP Web Control System

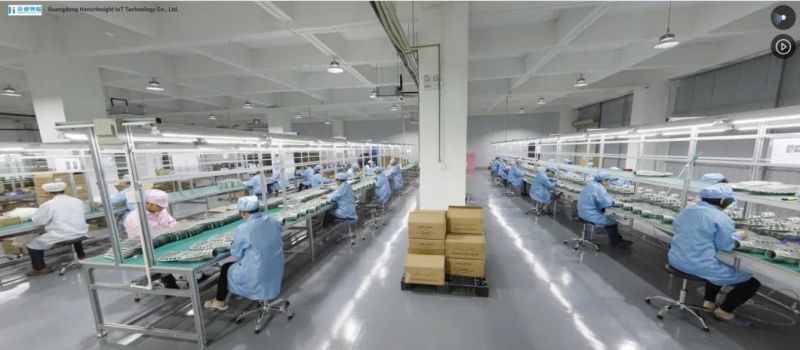

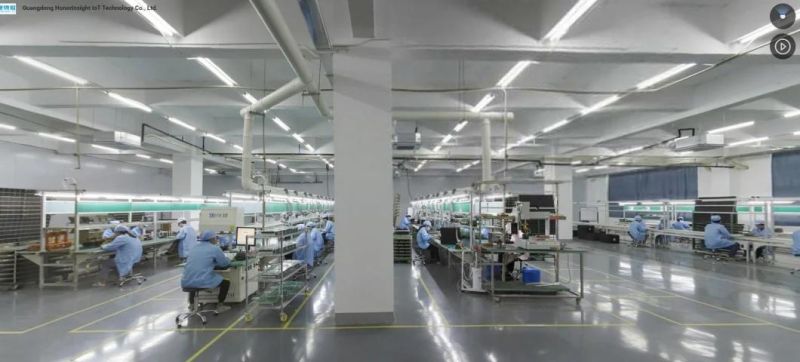

 Factory info40W Solar Street Light with APP Web Control System40W Solar Street Light with APP Web Control System
