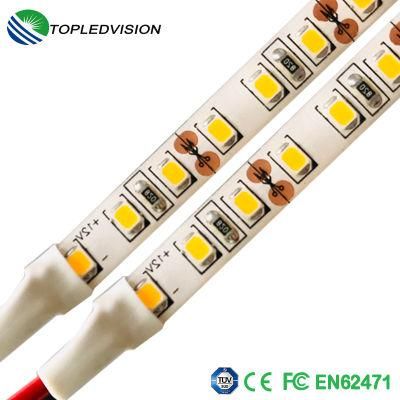

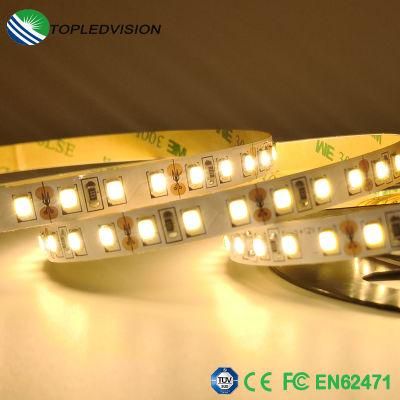

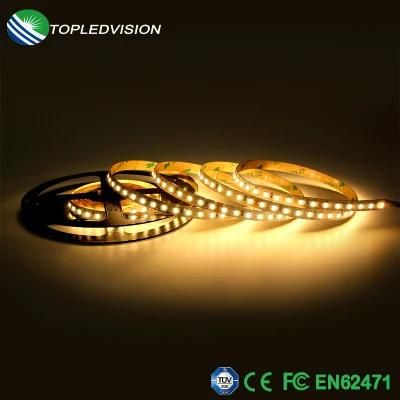

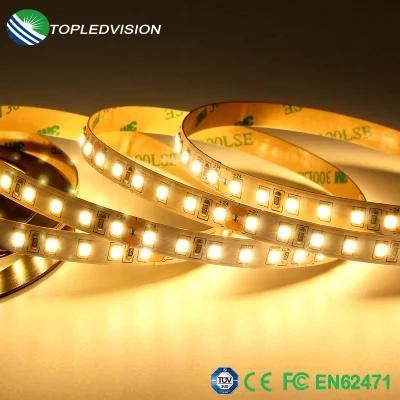

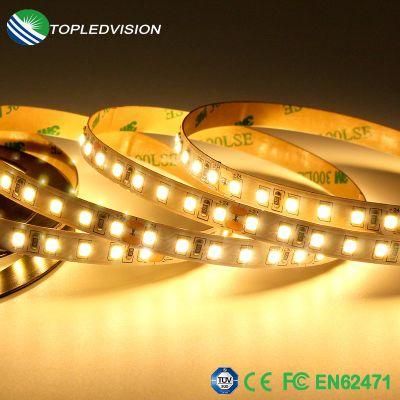

12V/24V 120LEDs 2835 CRI95 LED Strips with IEC/En62471
Dongguan Xukang Industrial Co., Ltd.- Certification：FCC, RoHS, CE, TUV, En62471, Lm-80
- Power：16watt,M
- Emitting Color：Warm White,Nature White,Cool White
- Voltage：12V, 24V DC

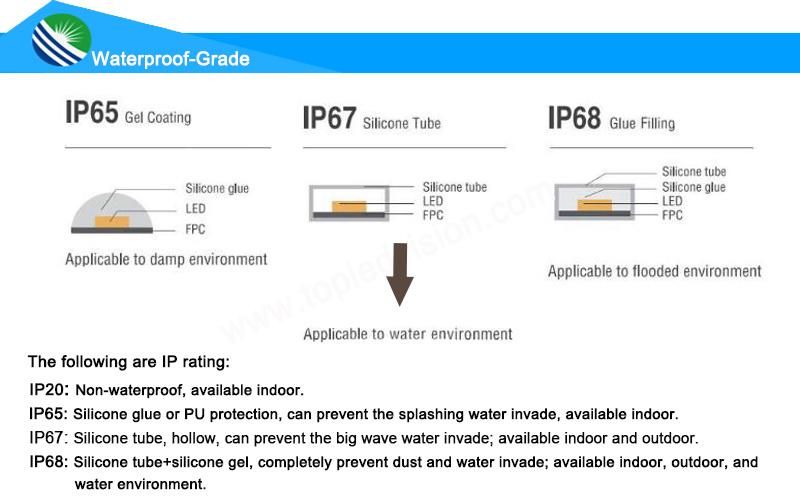

- IP Rating：IP20,IP65,IP67,IP68
- Type：Flexible LED Strip
Base Info
- Model NO.：TLV-FS2835Q120W-16W
- LED Source：High Quality SMD2835
- LED：99.99% Gold Wire and Red Copper Pad
- Model：Tlv-Fs2835q120W
- PCB：Electrolytic Copper Double-Sided Circuit Board
- LED Lumen：24-26, 26-28lm
- LED Quantity：120LEDs,M
- Watt：16W,M
- CRI：High CRI >95ra

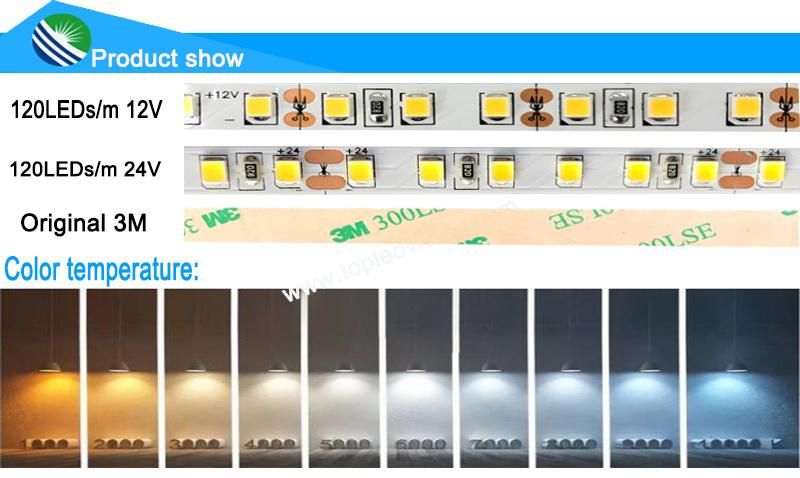

- Color Temp：2700K, 3000K, 4000K, 6000K
- Working Life：30000h
- Certifications：TUV, Ce, FCC, IEC,En62471, Lm-80
- Warranty：2-3 Years
- Packing：5mts,Reel, Gift Box Packing or Anti-Static Bag
- Usage：Commercial, Office, Kitchen, Bar
- Transport Package：5mts,Reel 100reel,Carton
- Specification：5000x8(10)x 1.3mm
- Trademark：topledvision
- Origin：Shenzhen
- HS Code：9405409000
- Production Capacity：100000PCS,Month
Description
TLV-FS2835Q120W-12V
| Suppliers | Ours | Cheaper |
| Wire | 99.99% gold wire | Alloy wire |
| Pad | Red coppper | Yellow copper/Iron |
| Led lumen | 24-26lm | 22-24lm |
| Light decline rate | 3-5% after 50000h | 10% after 30000h |
| Working life | 3-5years | 1-2years |
| Packing | White gift box | Aluminum foil bag |
| Certification | LM-80 | Unknow |
| High quality SMD LED Our SMD LED use 99.99%(Au) gold wire and red copper pad. 24-26lm led lumen, which is better dissipation, long lifespan and low light decline. SMD LED passed LM-80 testing standard, less than 5% lumen down after 5000H working. |
| High quality double-side PCB We use Electrolytic copper as PCB materrial, the electrolytic copper is equipped with a dual circuit board , which is better heat dissipation and more stable use. |
| Good color consistency and reliable quality We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch. |
| Suppliers | Ours | Cheaper |
| Wire | 99.99% gold wire | Alloy wire |
| Pad | Red coppper | Yellow copper/Iron |
| Led lumen | 24-26lm | 22-24lm |
| Light decline rate | 3-5% after 5000h | 10% after 3000h |
| Working life | 3-5years | 1-2years |
| Packing | White gift box | Aluminum foil bag |
| Certification | LM-80 | Unknow |
Product features description:
High luminous,better flexibility
a.use quality 24-26lm SMD led as light source when have more than 1200lm per meter led strip.
b.white ,red,green,blue,yellow and other single color option,CRI>80ra
c.the led strip with better flexibility by use smaler smd led and resistance and roled copper FPC.
Good reliability ,long working lifespan
a.90-95% working current of standard is safe for led strip and keep the high lumen efficiency.
b.12V,24V DC working voltage and low current which has less heat for a long strip.
c.loss than 3% light decline rate after 50000hours continuously working.

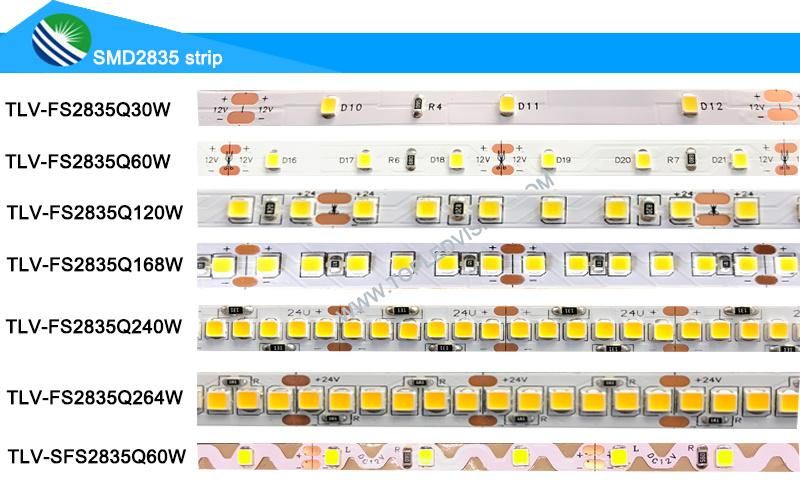

| Model | Led quantity | Output | Power | PCB Width |
| TLV-FS2835Q30W | 30leds/m | 12/24V DC | 6W | 8mm |
| TLV-FS2835Q60W | 60leds/m | 12/24V DC | 12W | 8mm |
| TLV-FS2835Q120W | 120leds/m | 12/24V DC | 16W | 8mm |
| TLV-FS2835Q168W | 168leds/m | 12/24V DC | 18W | 10mm |
| TLV-FS2835Q240W | 240leds/m | 24V DC | 20w | 10mm |
| TLV-FS2835Q264W | 264leds/m | 24V DC | 22w | 10mm |
| TLV-SFS2835Q60W | 60leds/m | 12V DC | 12w | 6mm |
Applications:
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.

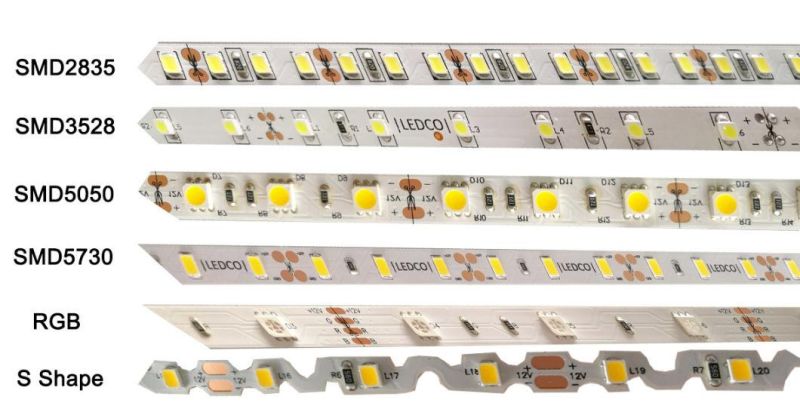

Other types of led strip for your reference:
Packaging and shipping :
1. Packaging: 5m/roll, box packing (132x132x15mm), 100 reels per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
| Q1: Do you have free sample? A1: Yes, we can offer you free samples, but you pay the shipping cost. |
| Q2: What is your minimum order quantity? A2: Usually MOQ is 50m, but we also accept small order for trail. |
| Q3: What's your delivery time? A3: Samples can be finished within 3-5 days, and bulk order is about 10-15 days according to quantity. |
| Q4: What's your delivery ways as usual? A4: Normally, we send the products by Express, Air or Sea transportation. |
| Q5: What's the payment term? A5: We accept T/T, PayPal or Western Union. |
| Q6: Do you offer OEM customized services? A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you. |
