• Model NO.：SD-04-A2323-6
• OEM：Yes
• Length：230cm
• Catheter Od：2.3mm
• Coated Plastic：with or Without
• Needle Extension Length：4mm 6 mm
• Metal End Cap：Yes
• Transport Package：PP Bag+Carton
• Specification：230 cm * 2.3mm
• Trademark：Soudon
• Origin：China
• HS Code：9018903090
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. SD-04-A2323-6 OEM Yes Length 230cm Catheter Od 2.3mm Coated Plastic with or Without Needle Extension Length 4mm 6 mm Metal End Cap Yes Transport Package PP Bag+Carton Specification 230 cm * 2.3mm Trademark Soudon Origin China HS Code 9018903090 Production Capacity 100000PCS/Month

Product Description

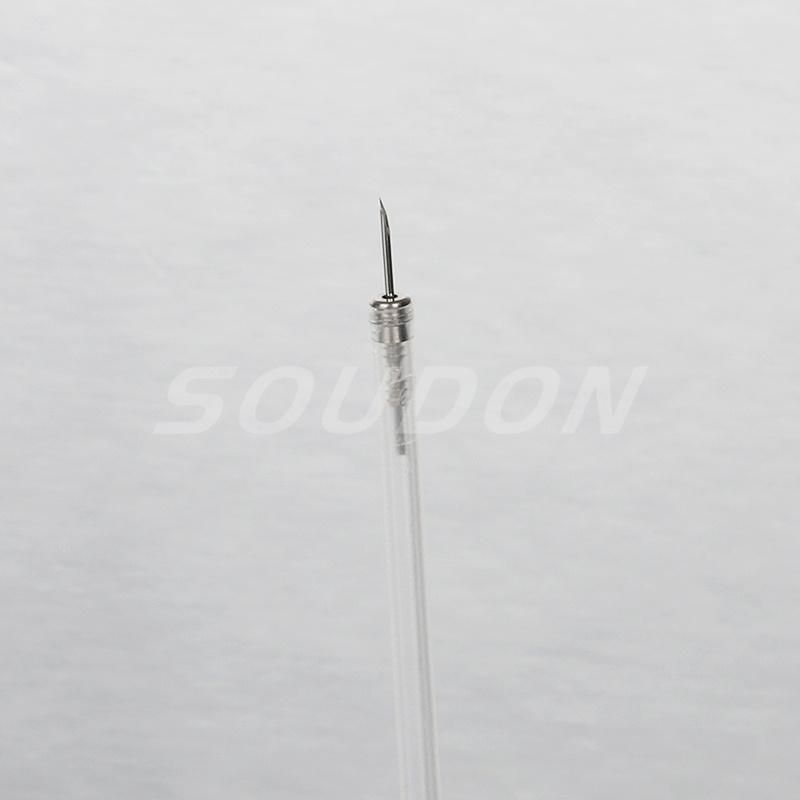

ESD Supplies Disposable Medical Injection Needle with Eo Sterilization for EndoscopeThe Single Use Endoscopic Injection Needle used with endoscope, suitable for submucosal injection in digestive tract.

Features:

Tip Angle 30 degrees -- sharp puncture.
Transparent inner tube - blood return can be observed.
Step needle -- keep the needle in the middle of the outer tube to improve the bending performance; Increase the inner diameter of the inner tube to increase the injection flow.
Star inner tube - small push resistance and smooth push.
One key back needle design -- one hand operation, convenient and fast.

Main Specification:


Part No.	Catheter OD (mm)	Effective Length (cm)	Model Needle (G)	Needle Extension Length (mm)	Metal End Cap
SD-04-A2323-4 *	2.3	230	23	4	TYPE A Without metal end cap
SD-04-A2323-6 *	2.3	230	23	6	TYPE A Without metal end cap
SD-04-A2325-4	2.3	230	25	4	TYPE A Without metal end cap
SD-04-A2325-6	2.3	230	25	6	TYPE A Without metal end cap
SD-04-A1823-4	2.3	180	23	4	TYPE A Without metal end cap
SD-04-A1823-6	2.3	180	23	6	TYPE A Without metal end cap
SD-04-A1825-4	2.3	180	25	4	TYPE A Without metal end cap
SD-04-A1825-6	2.3	180	25	6	TYPE A Without metal end cap
SD-04-B2323-4	2.3	230	23	4	TYPE B With metal end cap
SD-04-B2323-6	2.3	230	23	6	TYPE B With metal end cap
SD-04-B2325-4	2.3	230	25	4	TYPE B With metal end cap
SD-04-B2325-6	2.3	230	25	6	TYPE B With metal end cap
SD-04-B1823-4	2.3	180	23	4	TYPE B With metal end cap
SD-04-B1823-6	2.3	180	23	6	TYPE B With metal end cap
SD-04-B1825-4	2.3	180	25	4	TYPE B With metal end cap
SD-04-B1825-6	2.3	180	25	6	TYPE B With metal end cap

About our Factory:

Products quality always is our priority concerns. Introducing our professional team into our R&D, manufacturing and QA process, we proudly announced that 'the quality of our products, you can always trust'.

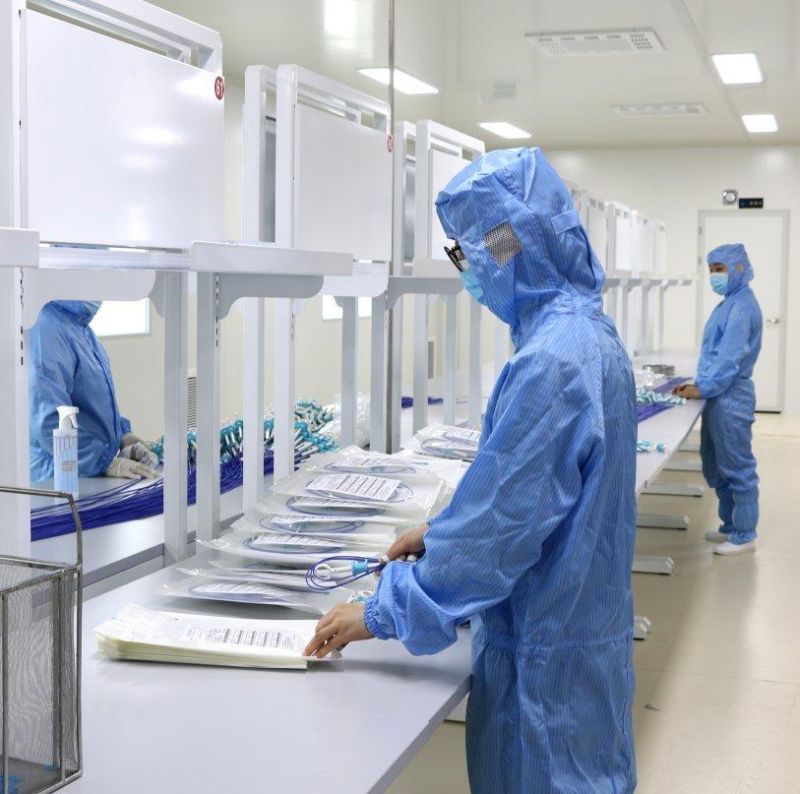

• 2000+Sq. 100,000 Grade Cleaning Workshop.
• Our team with 10+ years professional experiences of medical instrument manufacturing.

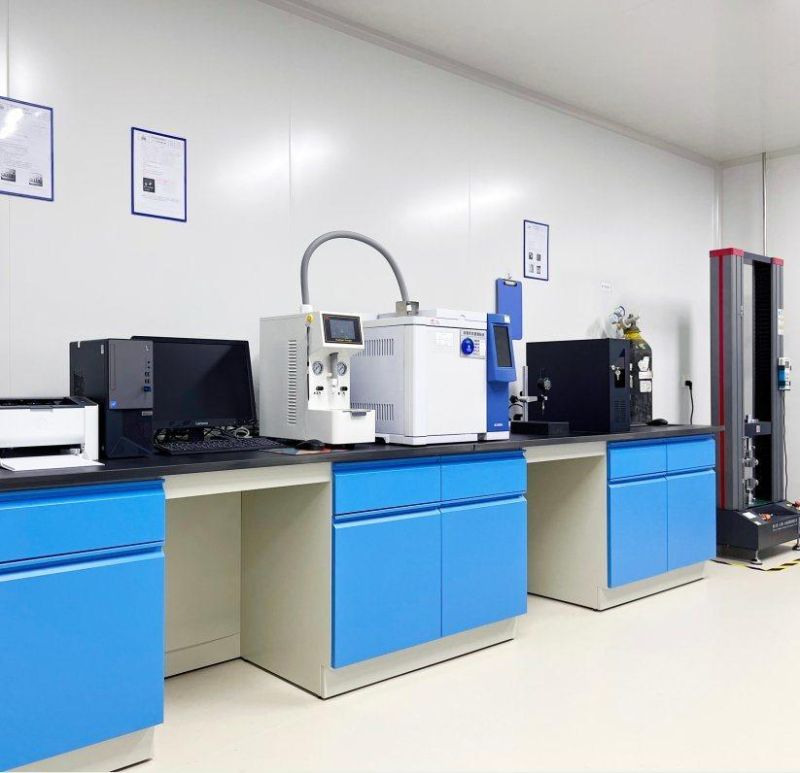

• Physical and chemical laboratories with advanced instruments, ensuring the ultra quality of each product.
