government Supplier 60W Solar Street Light Lithium Battery
Chongren Longtime International Co.- Light Source：LED Light
- Color Temperature(CCT)：Cool White
- Lamp Body Material：Aluminum Alloy
- Lamp Power：80W
- Power Supply：AC
- Average Life：5500h
Base Info
- Application：Highway, Square, Garden
- IP Rating：IP65
- Certification：CE, RoHS, CCC, UL, ISO, FCC, EMC, GS
- Voltage：220V
- Lamp Source：LED Lamp ,Sodium Light,Metal Halide Lamp
- Shape：Round ,Conical,Octagonal,Polygonal
- Height：3m 4m 5m 6m 7m 8m 9m 10m 11m 12m
- Material：Q235
- Transport Package：Plastic Foam
- Specification：CE SGS ROHS FCC ISO
- Trademark：DX (Dingxin)
- Origin：China
- HS Code：73089000
- Production Capacity：50000PCS,Month
Description
Detailed Specification for each PartsLED: 50W
Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant
LED Power-------------------------50W
LED Lighting Efficiency----------6000LM
Body Size-----------------------540*296*60mm
Lamp Efficiency--------------------->92%
Central Illuminance--------------->30LX
CT---------------------------5000-7000 (White)
Ra-------------------------------------->75%
Power Factor------------------------>0.95
IP----------------------------------------65
Working Temperature----------- -40°C---+60°C
Lifespan-------------------------->50000 Hours
G.Weight-----------------------------5.5KG
Solar Gelled Battery
120Ah
Nominal Voltage------------------12V
Number of cell ----------------------6
Design Life --------------------------5-8 years
10 hour rate(12.0A,10.5V) -----------120Ah
Fully Charged battery 77°F(25°C)----4mΩ
Discharge -----------------------------20~60°C
Charge ------------------------------- -10~60°C
Storage ------------------------------ -20~60°C
Size:--------------------------- 406*172*210mm
Weight: --------------------------------32.5Kgs. Solar Panel: 100W
Adding Aluminum Frame, Tempered Glass.
A-class. Silicon Type---------------------------------Poly
Size-----------------------------990*704*35mm
Cells---------------------------------------60
N Weight--------------------------------8.5KG
Vmp---------------------------------------17.2V
Imp---------------------------------------5.81A
Voc---------------------------------------21.6V
Isc----------------------------------------4.63A
Efficiency: -------------------------------≥15.5%
FF(%)-----------------------------------70-72%
Operating temperature-----------40°C to +80°C GI Pole System
8Metre Pole Height-----------------------------------8M
Material----------------------------------Q235,
Top Diameter-----------------------------80mm
Bottom Diameter-------------------------185mm
Pole Thickness----------------------------3.5mm
Painting:--------------------------Wanted Colour
8M Height Pole,Steel, Q235,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H Solar Controller
15A/24V Controller Intelligent Micro-computer Controller
Automatic Light Control and Time Control System
IP Level -----------------------------------IP68
Size--------------------------------81*60*22mm
N. Weight------------------------------0.16KG
Working Temperature:-20°C to 60°C
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after 11-12 Hrs later. Battery Box
Material: Engineer Steel, Hang on the pole. Cable, and Fittings Cables From controller to Lamp to
Solar panel, solar batteries, controller.
Armoured cable, include eather-protective cable glands
hot galvanized street light post/ good looking street lighting poles/customized powdered painting /3m 4m 5m 6m 8m 9m 10m 12m
WE ARE MANUFACTURER SINCE 2000
Experience: Our company was set up in 2000, having over 14 years of production experience in galvanized street light poles.
Production Capacity: We manufacture galvanized street light poles from 3M-35M at the capacity of 20,000 poles per month.
Production lines: For galvanized street lighting poles we carry on vertical production to get good control of quality and cost
PAKAGAING
Bulb wrappings for street lighting poles for FCL goods, felt wrapping first and then bulb wrappings for LCL street light poles.
SPECIFICATION FOR POLE
Material: High-quality steel Q235/SS400 from BAOSTEEL Group
Welding Technique:Automatic submerged arc welding
Surface Treatment:Hot dip galvanizing and powder painting
Welding Standard: GB11345 Grade II
Thickness of Zinc Coating :≥ 86um
Adhesive Force of Zinc Coating: GB2694-88
Anti-wind Capacity: 36.9m/s
Anti-corrosion Lifetime: ≥20 years
Coating Layer Thickness : ≥100um
Adhesive force :GB9286-880 Hardness ≥2H
Steel Pole Height Options:3.5m~15m
Street Lighting Poles Type Options: Conical, polygonal
Delivery Time
Generally 20 working days for 100 galvanized steel light poles.

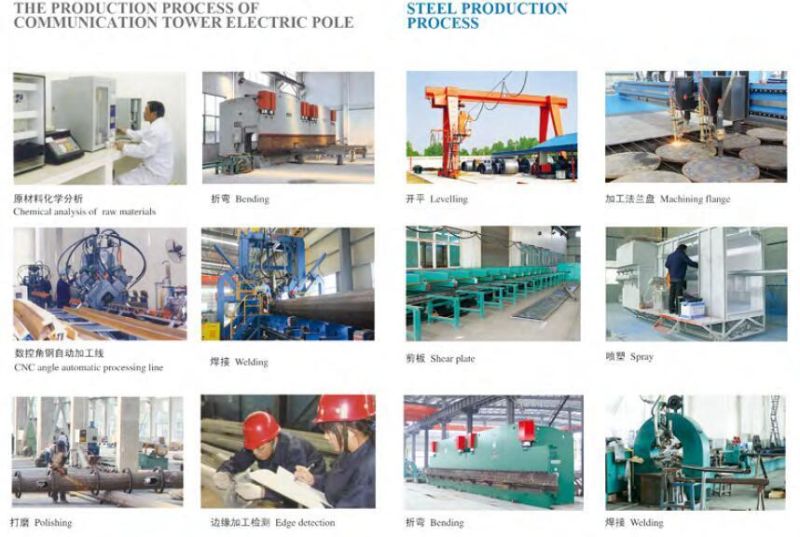

We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line
Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant
LED Lighting Efficiency----------6000LM
Body Size-----------------------540*296*60mm
Lamp Efficiency--------------------->92%
Central Illuminance--------------->30LX
CT---------------------------5000-7000 (White)
Ra-------------------------------------->75%
Power Factor------------------------>0.95
IP----------------------------------------65
Working Temperature----------- -40°C---+60°C
Lifespan-------------------------->50000 Hours
G.Weight-----------------------------5.5KG
Solar Gelled Battery
120Ah
Number of cell ----------------------6
Design Life --------------------------5-8 years
10 hour rate(12.0A,10.5V) -----------120Ah
Fully Charged battery 77°F(25°C)----4mΩ
Discharge -----------------------------20~60°C
Charge ------------------------------- -10~60°C
Storage ------------------------------ -20~60°C
Size:--------------------------- 406*172*210mm
Weight: --------------------------------32.5Kgs.
Adding Aluminum Frame, Tempered Glass.
A-class.
Size-----------------------------990*704*35mm
Cells---------------------------------------60
N Weight--------------------------------8.5KG
Vmp---------------------------------------17.2V
Imp---------------------------------------5.81A
Voc---------------------------------------21.6V
Isc----------------------------------------4.63A
Efficiency: -------------------------------≥15.5%
FF(%)-----------------------------------70-72%
Operating temperature-----------40°C to +80°C
8Metre
Material----------------------------------Q235,
Top Diameter-----------------------------80mm
Bottom Diameter-------------------------185mm
Pole Thickness----------------------------3.5mm
Painting:--------------------------Wanted Colour
8M Height Pole,Steel, Q235,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H
15A/24V Controller
Automatic Light Control and Time Control System
IP Level -----------------------------------IP68
Size--------------------------------81*60*22mm
N. Weight------------------------------0.16KG
Working Temperature:-20°C to 60°C
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after 11-12 Hrs later.
Solar panel, solar batteries, controller.
Armoured cable, include eather-protective cable glands
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, UK, Canada, Germany, Spain, Greece, Italy, Sweden, France, Portugal, Cyprus, Romania, Croatia, Middle East, New Zealand, Fiji, Norway, Belgium, France, Italy, Australia, Turkey, Jordan, Iraq, UAE, India, Pakistan, Bangladesh, Qatar, Yemen, Singapore, Philippines, Cambodia, Nigeria, Congo, Mexico, etc.
hot galvanized street light post/ good looking street lighting poles/customized powdered painting /3m 4m 5m 6m 8m 9m 10m 12m
WE ARE MANUFACTURER SINCE 2000
Experience: Our company was set up in 2000, having over 14 years of production experience in galvanized street light poles.
Production Capacity: We manufacture galvanized street light poles from 3M-35M at the capacity of 20,000 poles per month.
Production lines: For galvanized street lighting poles we carry on vertical production to get good control of quality and cost
PAKAGAING
Bulb wrappings for street lighting poles for FCL goods, felt wrapping first and then bulb wrappings for LCL street light poles.
SPECIFICATION FOR POLE
Material: High-quality steel Q235/SS400 from BAOSTEEL Group
Welding Technique:Automatic submerged arc welding
Surface Treatment:Hot dip galvanizing and powder painting
Welding Standard: GB11345 Grade II
Thickness of Zinc Coating :≥ 86um
Adhesive Force of Zinc Coating: GB2694-88
Anti-wind Capacity: 36.9m/s
Anti-corrosion Lifetime: ≥20 years
Coating Layer Thickness : ≥100um
Adhesive force :GB9286-880 Hardness ≥2H
Steel Pole Height Options:3.5m~15m
Street Lighting Poles Type Options: Conical, polygonal
Height (m) | Diamention (mm) | Thickness (mm) | Flange size (mm) |
| 6 | 60/140 | 2.75 | 240*240*12 |
| 7 | 60/170 | 3 | 280*280*12 |
| 8 | 70/180 | 3 | 280*280*14 |
| 9 | 70/170 | 3.5 | 300*300*16 |
| 10 | 70/170 | 3.5 | 300*300*16 |
Delivery Time
Generally 20 working days for 100 galvanized steel light poles.
We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line
