• Model NO.：S10
• Fixed：Fixed
• Color：Customized
• Certification：Carb
• Customized：Customized
• Condition：New
• Carcase Material Option：Particle Boar , MDF
• Door Material Option：MDF, HDF, Melamine
• Shelf Pins Option：Plastic , Metal
• Connection Option：3in1 or 2in1
• Outside Finish：Matching Paint
• Inside Finish：Matching or UV Clear
• Door Finish：Lacquer Paiting.
• Transport Package：Flat Pack
• Specification：Customized
• Trademark：CABINEXT
• Origin：Fuzhou China
• HS Code：9403400090
• Production Capacity：10000PCS,Month

1.Construction: Frame, full overlay, 1/4" reveal on the side and 1/2" reveal on top & bottom.2.Material:   1  Door&drawer front:  3/4"thickness Solid Russian birch, shaker style, 2 3/4" stiles & rails   2  Face frame:  1 1/2"x3/4" Solid Russia birch   3 The carcass:All with CARB P2 standard plywood with wood veneer.                         A).Side panel,floor, top :1/2"plywood,                        B).Shelves;5/8"plywood, 10 1/2" depth for base cabinet , 10 1/2"depth for wall cabinet                        C).Back panel: 1/4" plywood with 3" x 1/2" frame.                        D).Drawer box: 5/8" solidwood with 1/4" plywood floor.dovetail joint   4 Hardware:  A). DTC soft closed under mount glide                          B). DTC soft closed hinge                          C). Handles are excluding3.Finish: Box-UV clear coating for interior, UV coating for exterior(same color as door).Face Frame &Door: All PU painting
Carcase Comparasio

Material	Feature	Thickness	Density
Partical board	Best choice for project, normal moisture resitant, low cost	16mm/18mm/25mm	620-660kg/m³
HMR board	High moisture resitant, widely used for humid area (Austrilia/ Island country)	16mm/18mm/25mm	620-650kg/m³
Plywood	Excellent nail-holding, not easy deformation, 100% water proof	5mm/16mm/18mm	570-630kg/m³
MDF	Widely used for door panel, flatness, would be molding	5mm/16mm/18mm/25mm	680-720kg/m³

The Plywood with CARB 2 Certificate
All the plywood we used in cabinets are passed CARB 2 certificate, which guarantee our cabinets eco-friend, not easy deformation,100% water proof.

Solid Wooden Door & Frame
We use Russia Birch solid wood to make frame and door. Besides keep good quality, also make cabinets more nice.

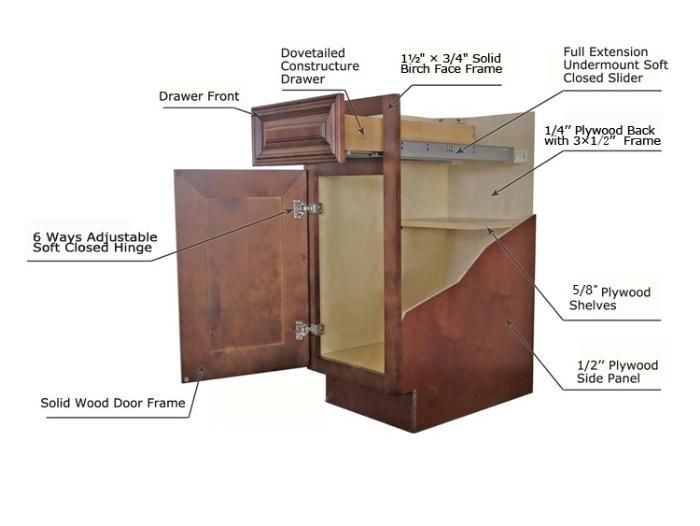

Face Frame Cabinets Construction

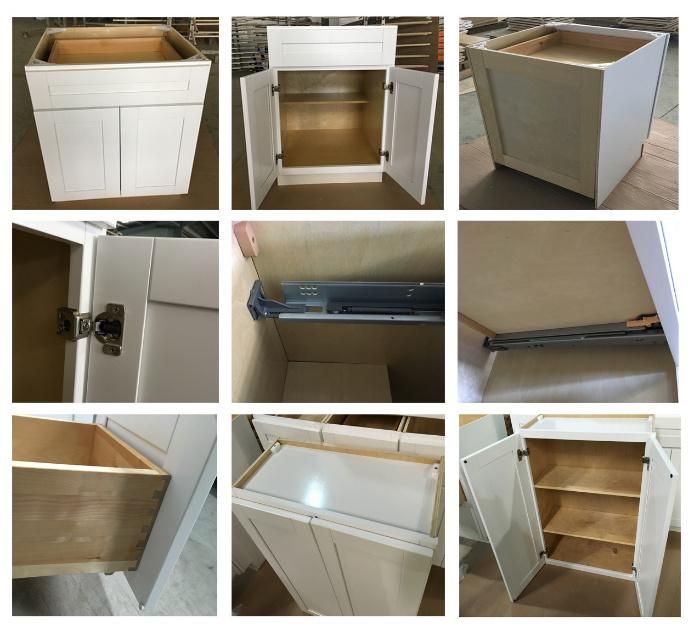

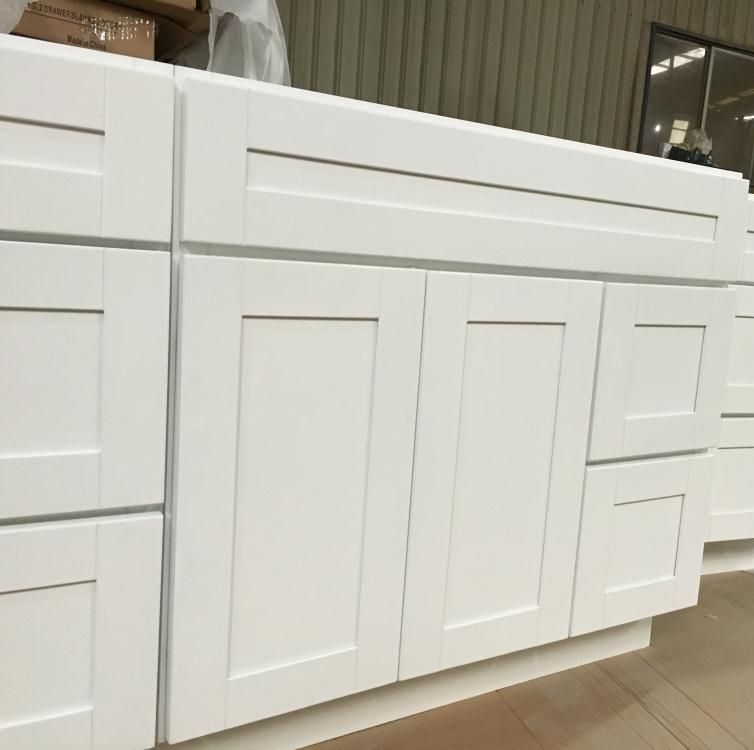

Real Products Show

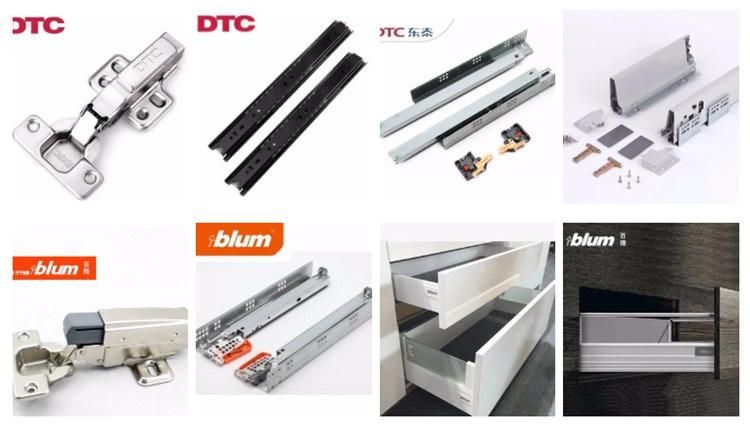

Hardwares









FAQ

Q: What is normal production time of orders?

A: Normally production of the product is 3 weeks to 6 weeks depending on the quantity ordered the timing of the order.

Q: Can I print our brand/logo on the product/packaging?

A: Yes, please send us your artwork, printing charge is subject to the order quantity. Some are free of charge.

Q: How can I get samples promptly?

A: For small quantity of sample order, we we'll send samples through your courier or airfreight by freight collect, otherwise, we will send samples by sea in LCL shipment upon your request, seafreight is a lot cheaper than courier and airfreight.
