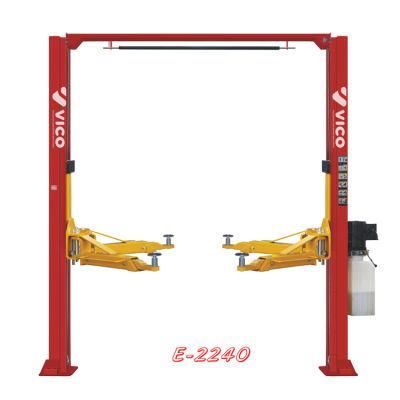

Double Sides Manual Release 2-Post Car Lift
Shenzhen E-Fuel Technology Ltd- Type：Four Cylinder Hydraulic Lift
- Lifting Capacity：4T
- Driving Type：Hydraulic
- Certification：CE, ISO, GS
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Planer-type
Base Info
- Model NO.：double sides manual release
- Shearing Lift Type：Ultrathin Type
- Condition：New
- Brand：Captain
- Design：Four Post
- Height：1800mm

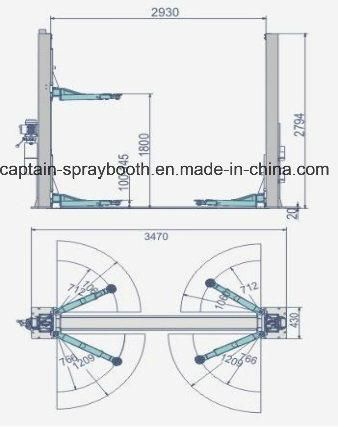

- Column Heigh：2794mm
- Lifting Time (Loaded)：55s
- Lowering Time (Loaded)：40s
- Column Width：2930mm
- Motor Power：2.2kw
- Transport Package：Export Container ,Pallet ,Disassembly with Carton
- Specification：CE, SGS, ISO
- Trademark：Captain,OEM
- Origin：Jiangsu, China.
- Production Capacity：196sets,Month
Description
Self weight: 600kgs Total width: 3445mm Oil pressure: 21MPa Motor power: 2.2kw

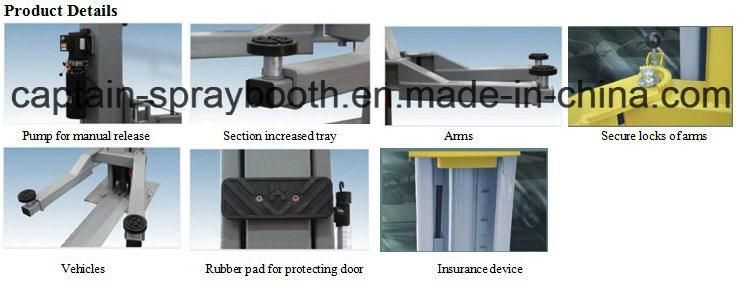

Features:1.Antioxidant, environment-friendly electrostatic powder spray coating;2.Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.3.Three kinds of release for choice, manual two sides release, manual single side release, electrical release.
4.Rubber pad for protecting door from scratch.5.Safety guard to protect toes.
6.Rubber support with 3 phases to adjust height.
7.Limit switch to make more safe.8.The arms adopt 2 stages or 3 stages design, larger range adjustment, suitable for different vehicle chassis.
Features:1.Antioxidant, environment-friendly electrostatic powder spray coating;2.Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.3.Three kinds of release for choice, manual two sides release, manual single side release, electrical release.
4.Rubber pad for protecting door from scratch.5.Safety guard to protect toes.
6.Rubber support with 3 phases to adjust height.
7.Limit switch to make more safe.8.The arms adopt 2 stages or 3 stages design, larger range adjustment, suitable for different vehicle chassis.
For 2-post car lift, we have 2 kinds of arms, symmetrical arm and unsymmetrical arms.
