P10mm Outdoor LED Display Billboard/Panel Display for Advertising

Danyang Yun Kai Metal Products
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：10mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：220W , m²

Base Info

  • Model NO.：10mm
  • Pixel Density：10000 dot , m²
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Module Size：160X160mm
  • Module Resolution：16X16dots
  • Cabinet Size：960X960X150mm
  • Cabinet Resolution：96X96dots
  • Screen Brightness：7000nits
  • Protection Grade：IP65
  • Compliance：Ce
  • Controller：Nova, Linsn
  • Maintenance：Rear Service
  • Transport Package：Plywooden Case
  • Specification：960x960mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

No.ParameterSpecification1Pixel Pitch10mm2Module size160mm*160mm3Module pixel16dots*16dots4Cabinet size960mm*960mm*150mm5Cabinet resolution96dots*96dots6Pixel Density10000pix/sqm7LED TypeDIP3468Viewing Angle(H)120°,(V)60°9Brightness≥7500cd/sqm10Drive Method1/4 scanning11Driving ICMBI512412Color Depth409613Refresh Rate≥1920 Hz14Frame Rate≥60Hz15Brightness AdjustmentManual control by software/Auto control16Cabinet Type and MaterialSteel Iron17Cabinet Weight≤60kg/sqm18VoltageAC 220/110V±10%,50Hz19Avg. Power Consumption220W/sqm20Max. Power Consumption650W/sqm21Service AccessRear maintenance22Protection GradeFront IP65,Rear IP5423Operating Temp/Humidity-30ºC~60ºC, 10~95%RH24Control modesynchronization with PC25Operating SystemWINDOWS(98/2000/XP/Vista)26Storage Temp/Humidity-40ºC~60ºC, 10~95%RH27Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV28MTBF≥10000hours29Lifetime(Normal Temp)≥100,000Hours

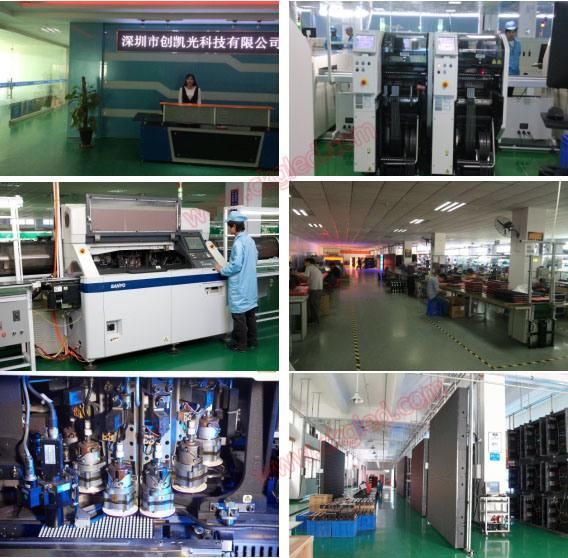

WORKSHOP:

P10mm Outdoor LED Display Billboard/Panel Display for Advertising

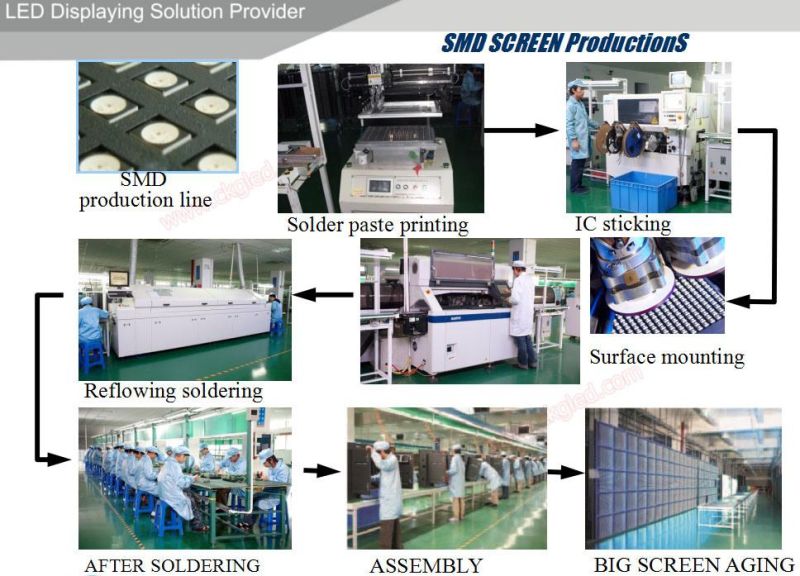

PROCESS:

P10mm Outdoor LED Display Billboard/Panel Display for Advertising

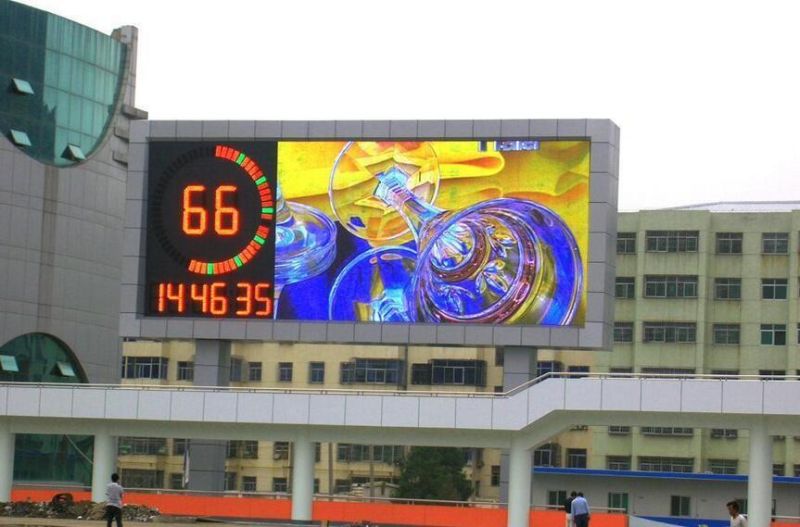

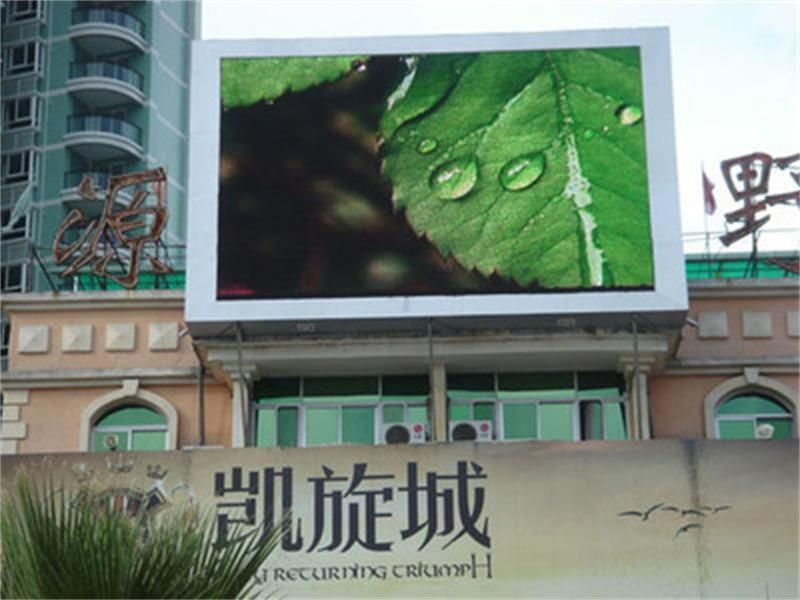

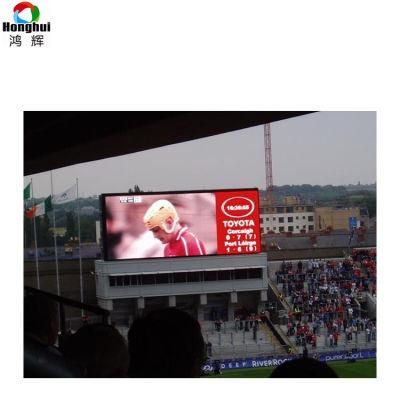

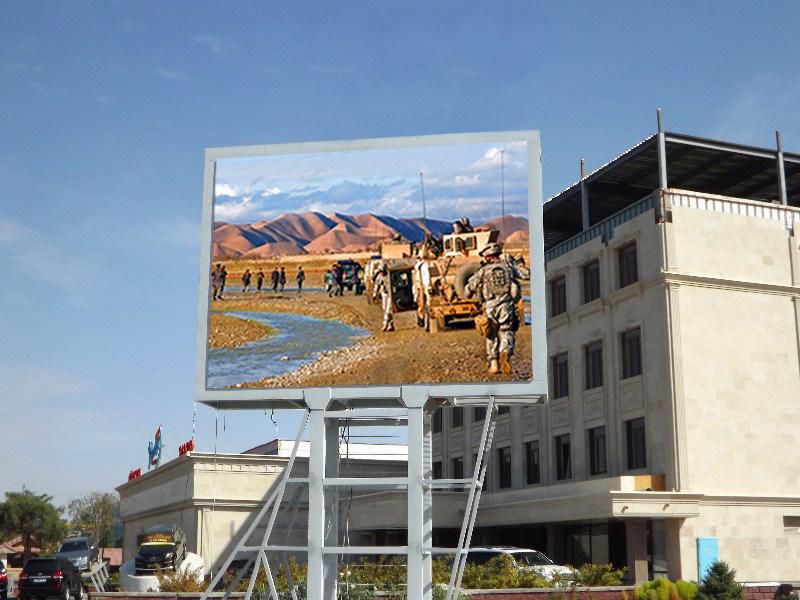

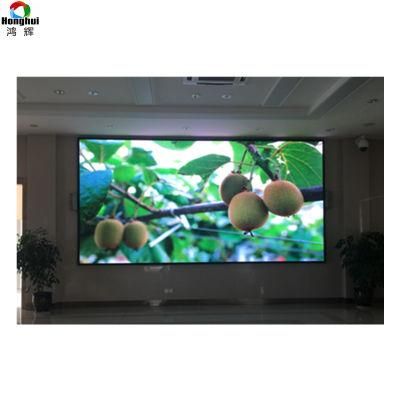

Product photos:

P10mm Outdoor LED Display Billboard/Panel Display for Advertising
P10mm Outdoor LED Display Billboard/Panel Display for Advertising
P10mm Outdoor LED Display Billboard/Panel Display for Advertising
P10mm Outdoor LED Display Billboard/Panel Display for Advertising

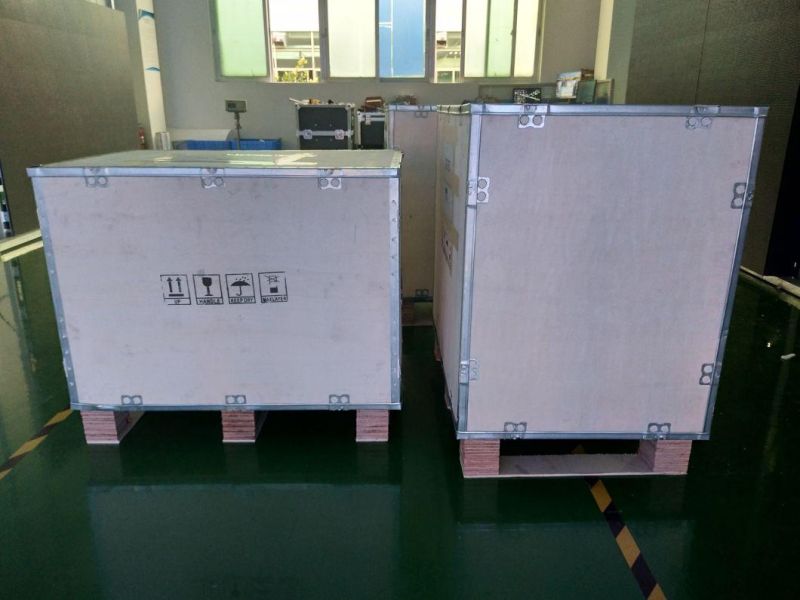

Package:

P10mm Outdoor LED Display Billboard/Panel Display for Advertising

Certificates:

P10mm Outdoor LED Display Billboard/Panel Display for Advertising
