• Model NO.：P10
• Certification：CCC
• Warranty Period：2years
• Deliver Time：15-20 Days
• Transport Package：Carton Box
• Specification：650mm*340mm*350mm
• Trademark：FWS
• Origin：Shenzhen China
• HS Code：9405409000
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. P10 Certification CCC Warranty Period 2years Deliver Time 15-20 Days Transport Package Carton Box Specification 650mm*340mm*350mm Trademark FWS Origin Shenzhen China HS Code 9405409000 Production Capacity 2000PCS/Month

Product Description

P10 Semi-outdoor LED Screen Technical Parameter

Item	Parameter
Pixel Pitch	10mm
Resolution of Module	32×16dots
Module Size	320×160mm
Led Package	DIP Oval 546 Lamp
Pixel Configuration	1R1G1B
Module Weight	0.59kgs/pcs
Pixel Density	10,000dots/sqm
Brightness (White Balance)	1800 nits(cd/sq.m)
Scan Mode	1/4 Scan
The best viewing distance(m)	>=10M
The best viewing angle:	110deg.
Module Maximum Power	20W
Max. Power Consumption	400W/sq.m
Avg. Power Consumption	100-250W/sq.m
Working Voltage	5V
Power Supply	AC 110/220V
Waterproof Grade	IP65
Refresh Rate	300Hz/S
Frame Rate	Hz/S≥ 60
Gray Scale	256 grade
Display Function	Texts
Input Signal	RS232/485, USB,Ethernet
Defective Dot Rate	<0.0001
Life Span	hours≥100,000
MTBF	hours≥5,000
Operating Temperature	-20°C~+60°C
Working Humidity	10%-90%RH
Control System	Asynchronous or Synchronous
Warranty	2 Year

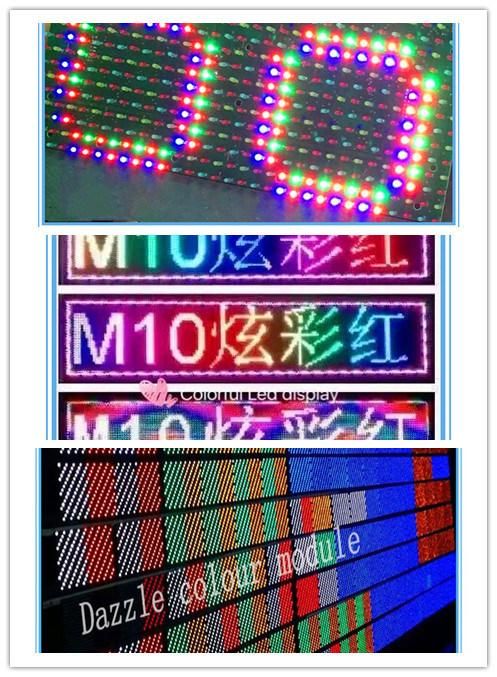

Effect Sho

Advertising LED displays,  Stadium perimeter LED screen,  Mobile led display for mobile media,  shopping mall LED billboard for logo showing , bank & stock exchange LED message signs for rates showing , train & bus station , airport ,  telecommunication LED video wall , Stage performances ect.

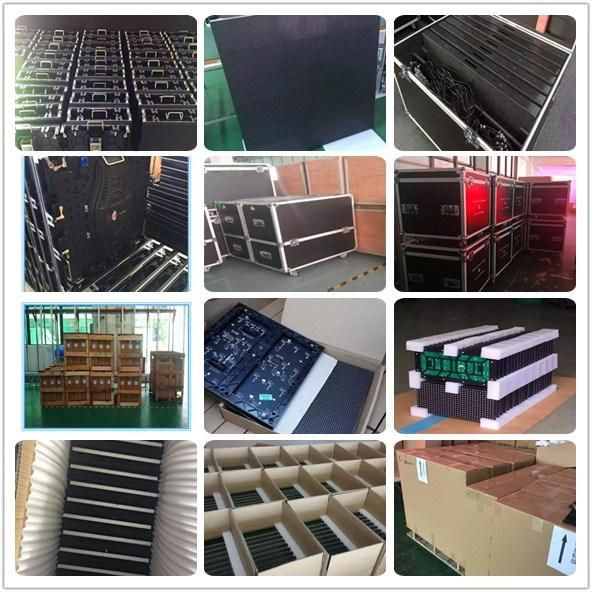

Packaging&shipping

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
