Outdoor 160X160 320X160 320X320 Module P10 Advertising LED Display Screen
Hangzhou Awesome Imp&Exp. Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：220W , m²
Base Info
- Model NO.：OX-P10S
- Pixel Density：10000 Dots,M2
- Scanning Mode：1,2 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL
- Cabinet Material：Steel,Aluminum
- Cabinet Weight：35kg,M2 (Aluminum)
- Brightness：>6500 Nits
- Refresh Rate：1920-3840Hz
- Repair Access：Front Service
- Grey Scale：16 Bits
- Driver IC：Mbi5124
- Connector：Invisible
- Power Supply：MW
- LED Brand：Nationstar,CREE
- LED Chip：Epistar,CREE
- Control System：Nova
- Transport Package：Plywood Cases
- Specification：960x960mm 1280x960mm
- Trademark：LEDventure
- Origin：China
- HS Code：8528591090
- Production Capacity：4000m2,Month
Description
Overview
LEDventure Project Cases
- Front access toplace modules, powers, cards etc
- High brightness options for outdoor viewing
- Stable driver IC solution
- Standard Cabinet 1280x960mm
- Long life span
- Cable invisible
- Cost effective solutions
2. Product Detailed Images
Product ParametersOX Series Outdoor Front Service LED Display Screen Pixel Pitch 3.91mm/4.81mm/5mm/5.33mm/6mm/6.67mm/8mm/10mm/16mm/20mm Module 240x240mm 250mmx250mm 256x256mm 320x320mm Cabinet 1280x960mm (Optional) Brightness >5500 nits
Product Description
1. Basic information

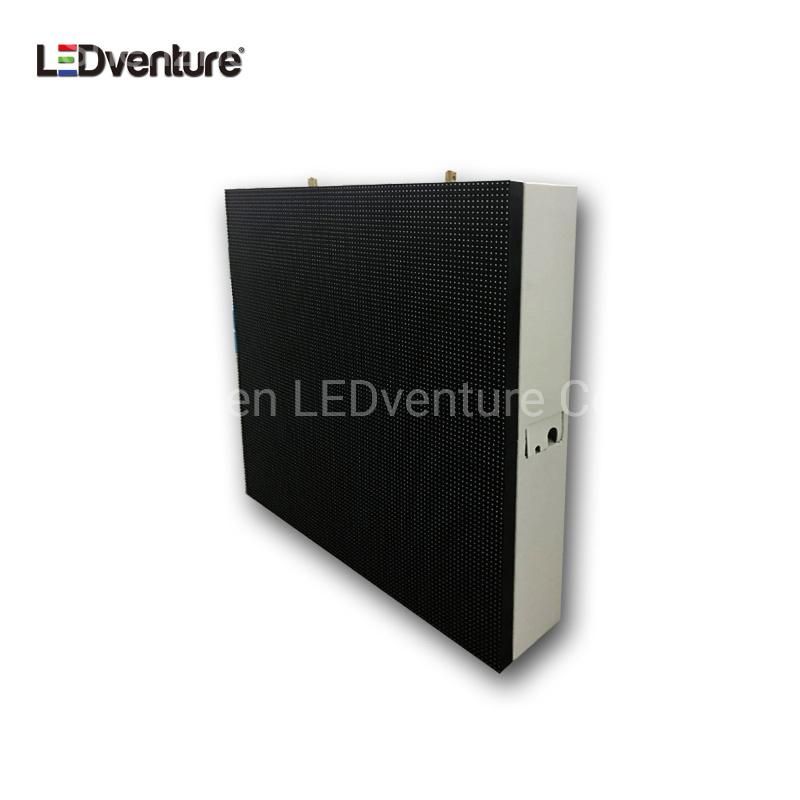

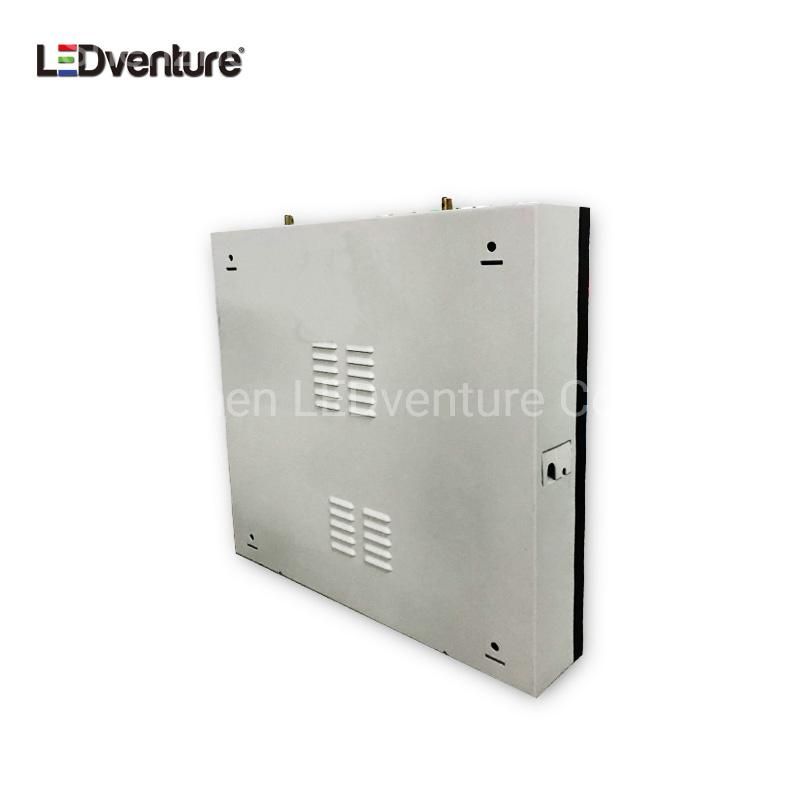

OX-P10S Outdoor Front Access Front Service LED Billboard is very popular option for outdoor commercial advertising. Just need very small space for installation, saving costs also saving human efforts. This series product is not limited by technology, same as regular cabinets, small size as a few square meters, big as thousands square meters are no problems, also, we can provide customers gold radio 4:3 or 16:9 resolutions.- Front access toplace modules, powers, cards etc
- High brightness options for outdoor viewing
- Stable driver IC solution
- Standard Cabinet 1280x960mm
- Long life span
- Cable invisible
- Cost effective solutions
2. Product Detailed Images
Product Parameters

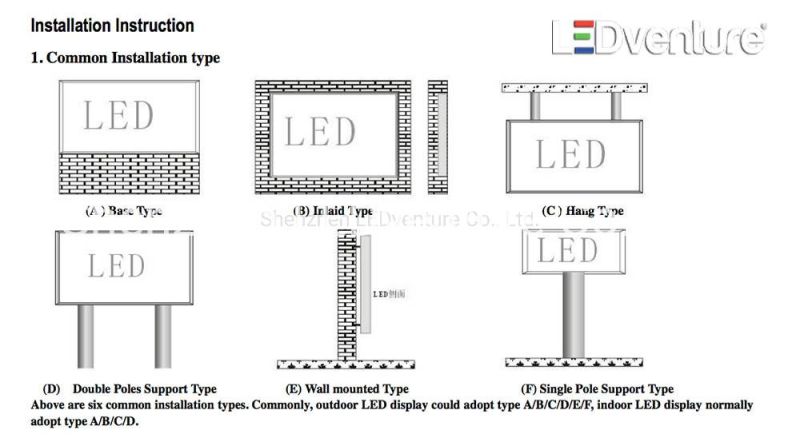

Our OX-P10S outdoor front service LED Display screen installation usually fixed on the structure, pillar type, mounted on the building etc, it doesnot need much space for reparing.
A complete set of Ph8mm Ph10mm Ph16mm Outdoor front access front service LED Display screen, including led modules, power supplies, cabinets, control system, etc, LEDventure provide a whole compete solutions for customers.
Our OX-P10S outdoor front service LED display screen quality pass CE, EMC, UL FCC tests, meet the standard of the local market requires.
