• Model NO.：Accessories
• P.C.D：335,285.75
• OEM No：Jd,16t
• Max Payload：28ton
• Size：16000kg
• Brand Name：Jinda
• Place of Origin：Shandong, China
• Color：Customer Demands
• Certificate：ISO,Ts16949
• Axle Beam：Square 150*150mm
• Finish：Galvanished
• Track：1840mm
• Brake Size (mm)：420*200
• Package：According to Customer Requirements
• Parts：Axles
• Product Name：Semi Trailer Parts American Fuwa Axles
• Transport Package：Carton
• Specification：420mmX180mm
• Trademark：JINA
• Origin：China
• Production Capacity：5000,Month

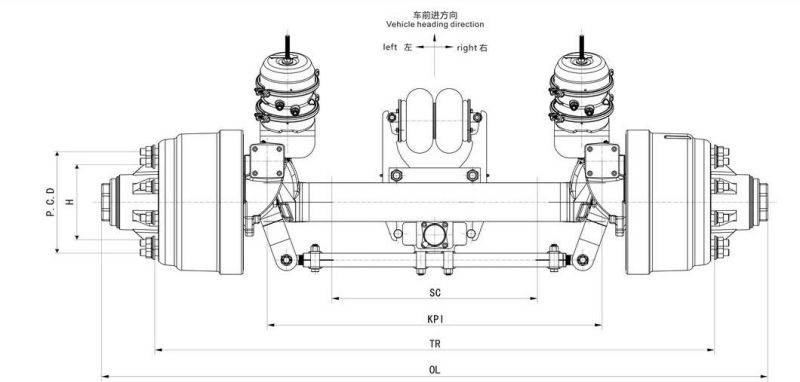

  Model

 Capacity

   (kg)

 Brake size

   (mm)

Track

(mm)

Axle Tube

(mm)

StudsPCD

Total length

(mm)

BearingLH/10.5T 10500  S420*1801820round 127*12710*M22*1.5335~2165

InnerIIM518445/10

OuterIIM518445/10



LH/13T 13000  S420*1801840square 150*15010*M22*1.5335~2185LH/14T 14000  S420*2001840square 150*15010*M22*1.5335



~2185

LH/16T 16000  S420*2201850square 150*15010*M22*1.5335~2205LH/20T 20000  S420*2201850square 150*15010*M24*1.5335~2252



Remarks:1.Track can be customized according to customer requirements

                2.Axle can install ABS system
