• Model NO.：6301-2NSL
• Inner Diameter：17-110mm
• Accuracy Class：P4,P2
• Sealing Type：Sealed or Not
• Rolling Body：Ball Bearings
• The Number of Rows：Single
• Spherical：Non-Aligning Bearings
• Outer Dimension：35-280mm
• Transport Package：Cases and Pallets or as Customer′s Requirment
• Specification：high quality
• Trademark：ZYS
• Origin：Luoyang, Henan, China
• HS Code：8482102000
• Production Capacity：40000,Month

Basic Info.

Model NO. 6301-2NSL Inner Diameter 17-110mm Accuracy Class P4/P2 Sealing Type Sealed or Not Rolling Body Ball Bearings The Number of Rows Single Spherical Non-Aligning Bearings Outer Dimension 35-280mm Transport Package Cases and Pallets or as Customer′s Requirment Specification high quality Trademark ZYS Origin Luoyang, Henan, China HS Code 8482102000 Production Capacity 40000/Month

Product Description

Deep groove ball bearing 6301-2NSL supplying for American users

General information of ZYS deep groove ball bearing
ZYS deep groove ball bearing consists of an outer ring, an inner ring, a group of steel balls and a group of cages. There are two types of deep groove ball bearings: single row and double row. Deep groove ball structure is also divided into seal and open structure. The open type means that the bearing has no sealing structure. The sealed deep groove ball is divided into dust-proof seal and oil-proof seal. The dust-proof seal cover is made of steel plate, which only serves as a simple way to prevent dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent grease overflow in the bearing.


Working principle of ZYS deep groove ball bearing
It mainly bears radial load, and also can bear axial load and radial load at the same time. When it only bears radial load, the contact angle is zero. When the deep groove ball bearing has a large radial clearance, it has the performance of angular contact bearing and can withstand large axial load. The friction coefficient of the deep groove ball bearing is very small, and the limit speed is also very high.
Characteristics of ZYS deep groove ball bearing
ZYS Deep groove ball bearings are suitable for high speed operation, and they are very durable without frequent maintenance. This kind of bearing has the characteristics of small friction coefficient, high limit speed, various sizes and forms; they are used in precision instruments, low noise motor, automobile, motorcycle and general machinery and other industries. It is one of the most widely used bearing in mechanical industry. It mainly bears radial load, and also can bear a certain amount of axial load.

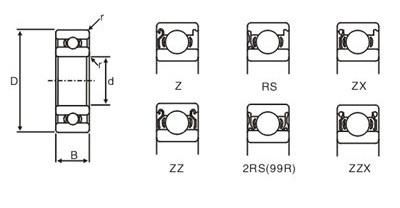

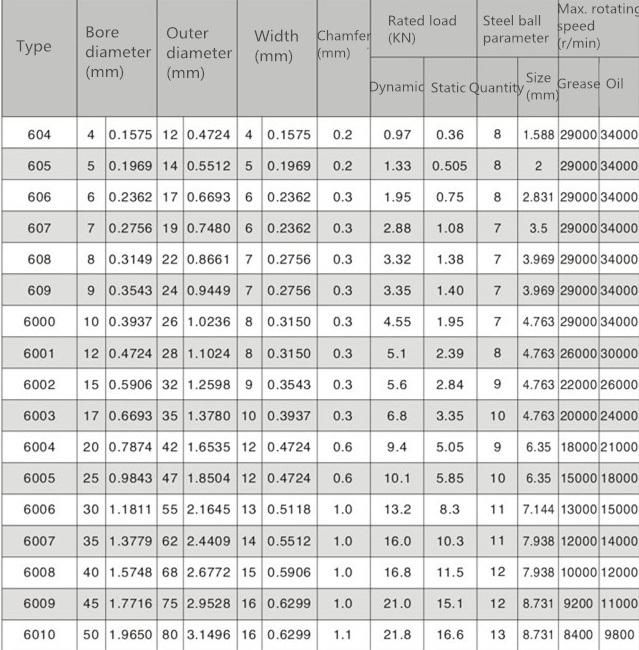

Technical parameter of ZYS deep groove ball bearing

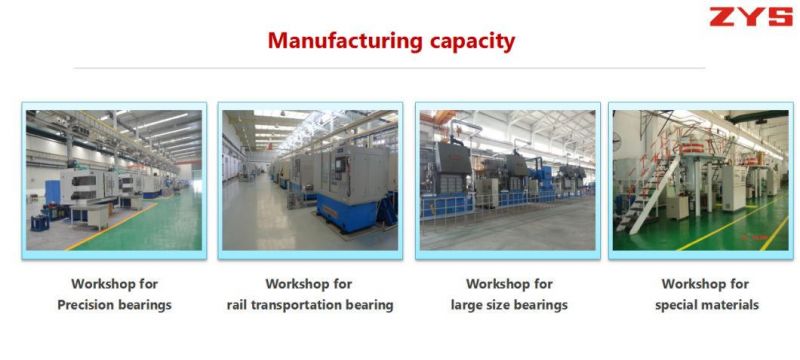

ZYS MANUFACTURING CAPACITY


ZYS Quality assurance

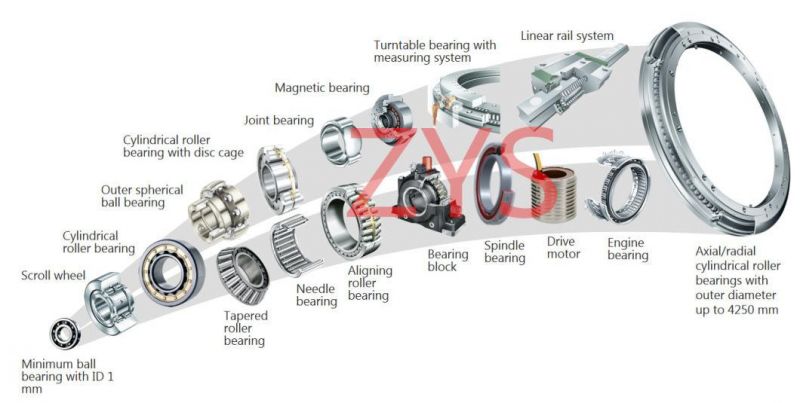

ZYS bearing products

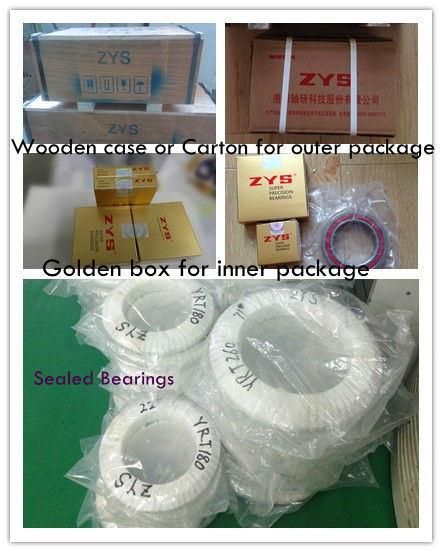

ZYS Packing :




FAQ:

Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.

Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.


Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail to zysdong@gmail.com for more information.

Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.

Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.

Q: Is sample avaiable?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
