• Model NO.：RCC0GX06B-DJ
• Input Voltage：24V
• Rated Current：300mA,M
• Typical Power：7.2W,M
• Wavelength/Color Temperature：3000K
• Lumen：400lm
• Color Rendering Index：80
• Luminous Efficiency：56lm,W
• Transport Package：DHL
• Specification：52*37*26CM
• Origin：Shenzhen
• HS Code：9405409000
• Production Capacity：5000000

Basic Info.

Model NO. RCC0GX06B-DJ Input Voltage 24V Rated Current 300mA/M Typical Power 7.2W/M Wavelength/Color Temperature 3000K Lumen 400lm Color Rendering Index 80 Luminous Efficiency 56lm/W Transport Package DHL Specification 52*37*26CM Origin Shenzhen HS Code 9405409000 Production Capacity 5000000

Product Description

Areas of application:

-Landscape lighting, facade lighting, steps, bridges, roads, shape, etc.

Product main benefits:

-High quality 2835 SMD LED

-Calendaring copper processing for FPC,

-more stronger and reliable -Uniform lighting, dot free

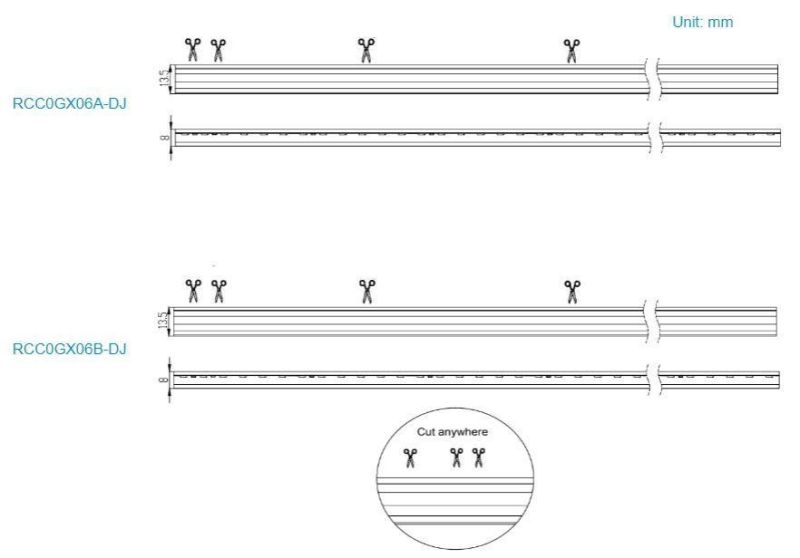

-Single led per unit, cut freely

-Excellent weather and corrosion resistance

-2700K-6500K, other color available

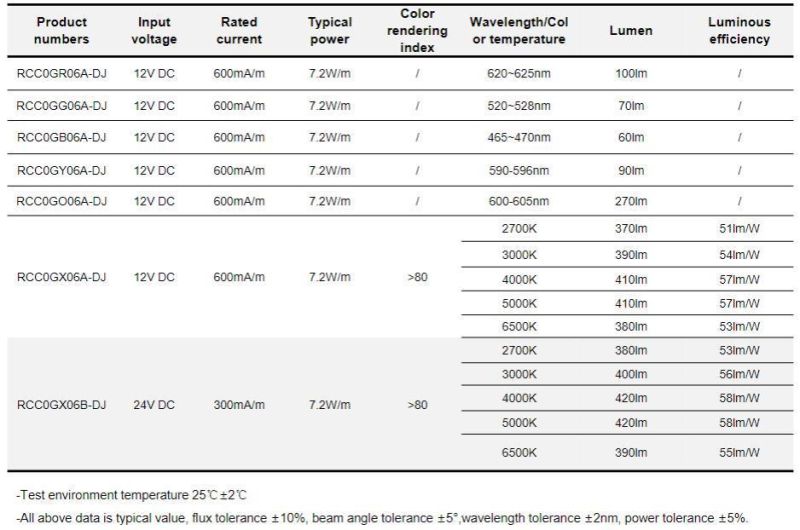

Photometrical data:



Supplementary Product Information:

-Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and norms.

-Installation by qualified electrician only.

-Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%.

-Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.

-Do not fold it in case any damage of LED beads.

-Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.

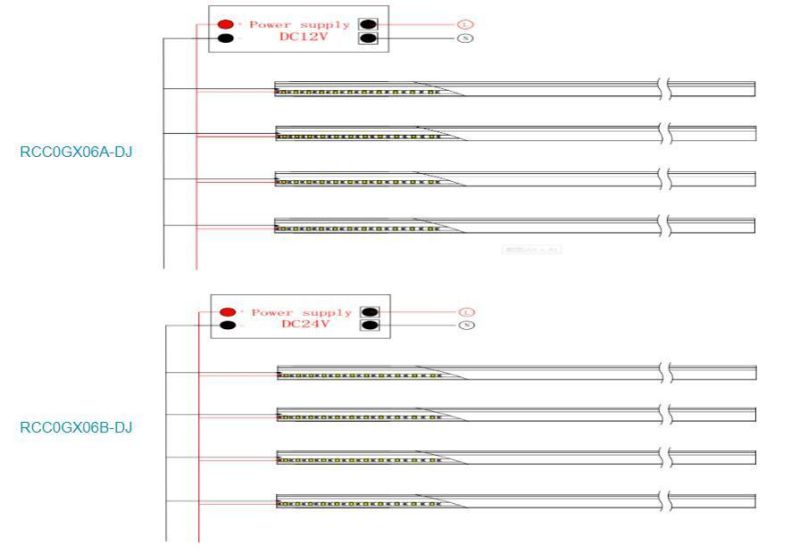

-Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.

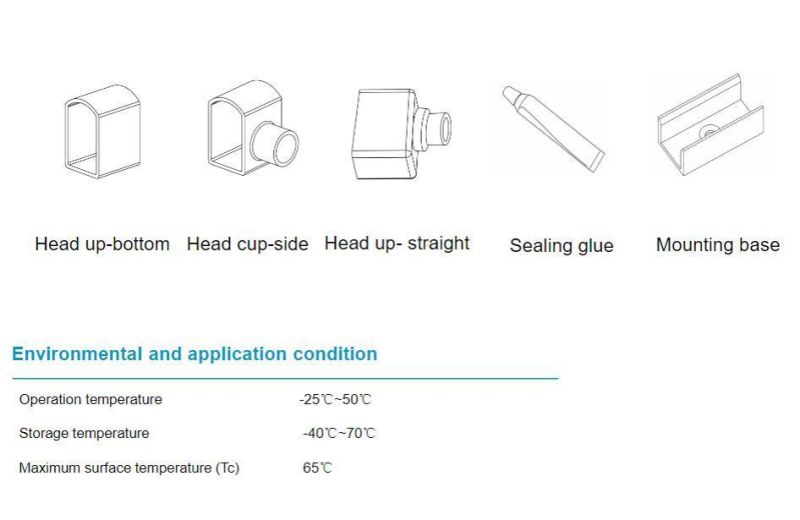

-LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 °C ~ + 40 °C.Storage temperature: -25 °C ~ + 60 °C/60%RH.

-Please use the strips without waterproof within indoor environment with humidity less than 70%.

-Please be careful during operation. Do not touch the AC power supply in case of electric shock.

-Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.

-Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).

-Must have extra power supply if the working length exceeds the maximum run length.

-The joints of extended strips should be deal with waterproof when using waterproof products.
