Impact Strength Steel Ball for IEC Testing Equipment
Abely Cosmetic Co., Ltd- Type：Impact Testing Machine
- Weight：0-100kg
- Transport Package：Wooden Case
- Specification：Impact Strength Steel Ball
- Trademark：ZLTJC
- Origin：Guangzhou, Guangdong, China
Base Info
- Model NO.：ZLT-GQ
- HS Code：9031809090
- Production Capacity：Preapre Every Time!
Description
Basic Info.
Model NO. ZLT-GQ HS Code 9031809090 Production Capacity Preapre Every Time!Product Description

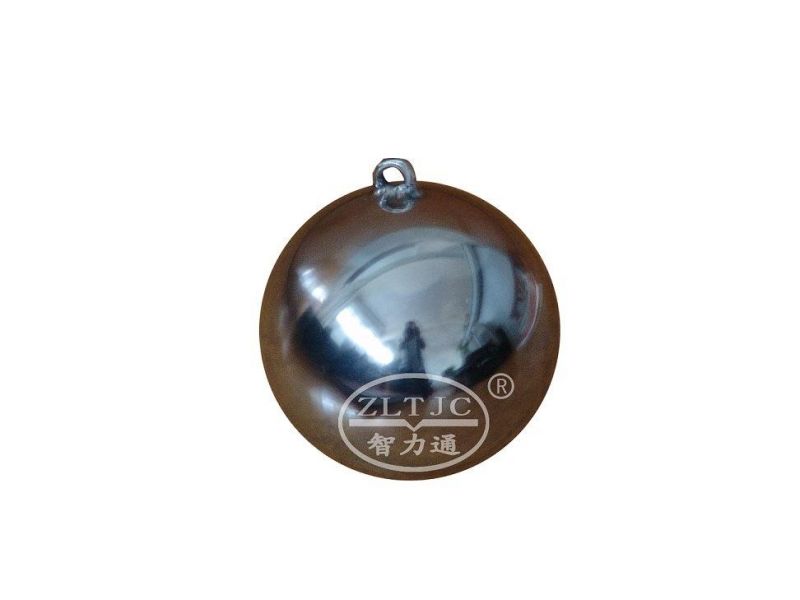

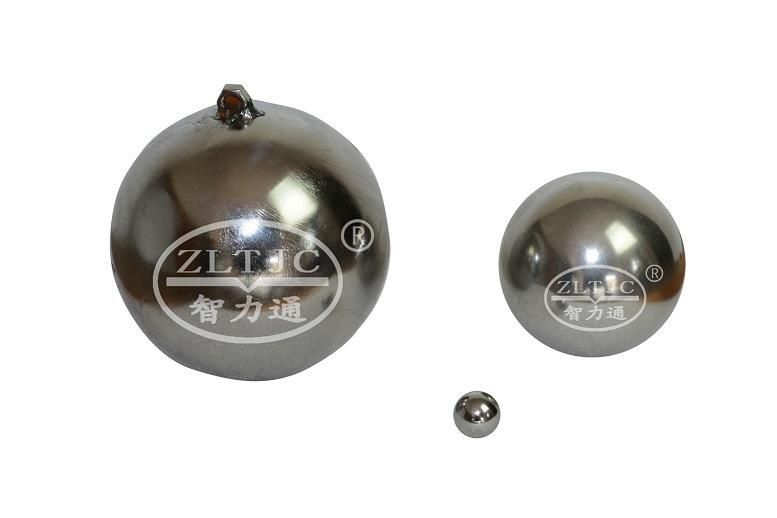

Impact Strength Steel Ball:Product details:
To determine the mechanical strength and the impact strength by pendulum test resp, by drop test. Material: Steel ball hardened.
| Model | ZLT-GQ1 | ZLT-GQ1A | ZLT-GQ2 | ZLT-GQ3 | ZLT-GQ4 |
| Diameter | 50.8±0.2mm | 50.8±0.2mm | 50±0.2mm | 38.1±1mm | 63.5±5mm |
| Mass | 535±25g, without the thread bore | 535±25g, with 1 thread bore M4 | 500±25g, with 1 thread bore M4 | 226±10g | 1040±25g |
| Conform to | UL | UL | IEC60335,IEC60950 |
