• Model NO.：SMLN-30W
• Illumination Time：12h
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：12
• Usage：Garden
• IP Rating：IP65
• Certification：CE, RoHS, IEC Soncap
• Voltage：12,24V
• With Light Source：With Light Source
• OEM/ODM/Customized：Available
• Warranty(Year)：10 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• CRI (Ra>)：95
• Working Lifetime(Hour)：100000
• Beam Angle：150*70°
• Working Mode：Full Power and Dim Mode
• Lighting Area：100m2
• Lighting Time：Over 3 Nights
• Controller：MPPT
• Back up Days：3 Days
• Maintenance：8 Years Free Maintenance
• Mounting Height：7m
• Transport Package：Carton, Pallet
• Specification：SMLN-30W
• Trademark：Sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：200000

Basic Info.

Model NO. SMLN-30W Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 12 Usage Garden IP Rating IP65 Certification CE, RoHS, IEC Soncap Voltage 12/24V With Light Source With Light Source OEM/ODM/Customized Available Warranty(Year) 10 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 95 Working Lifetime(Hour) 100000 Beam Angle 150*70° Working Mode Full Power and Dim Mode Lighting Area 100m2 Lighting Time Over 3 Nights Controller MPPT Back up Days 3 Days Maintenance 8 Years Free Maintenance Mounting Height 7m Transport Package Carton, Pallet Specification SMLN-30W Trademark Sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 200000

Product Description

1.2000 cycle Li-ion battery,10 years  life.
2.Support more than 10 rainy days with the best technology
3.210lm/W super bright led chip

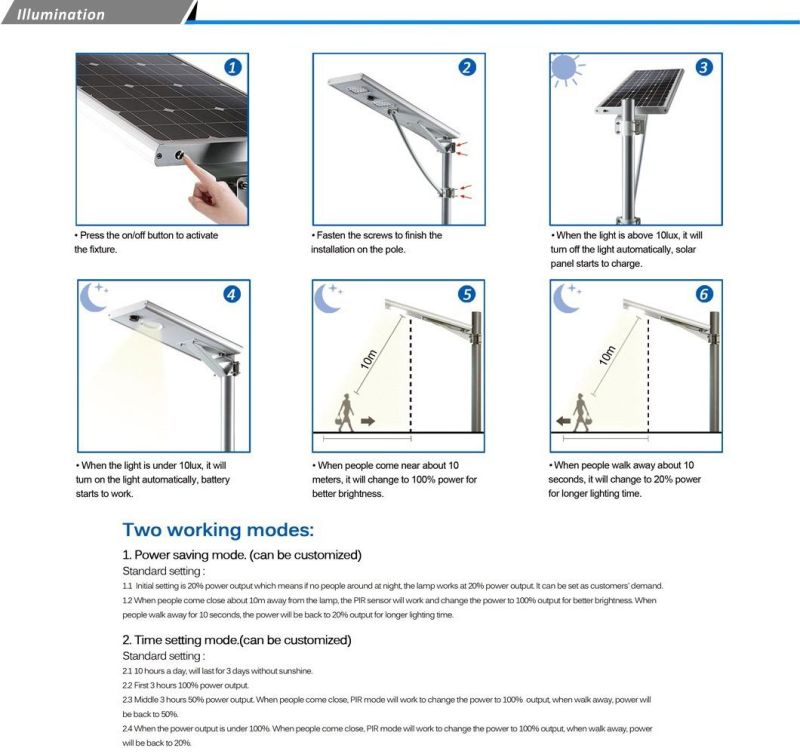

4. 3 Lighting Mode for choosing, motion sensor for energy saving.
5.Detachable design of battery pack and led chip,easy to maintenance.
6. All in one design with patent,Aluminum alloy case,Waterproof IP65.
7.Turn on at dusk and tun off at dawn automatically.

Model NO.	SMLN-30W	Battery Type:	LiFePO4 24Ah/12.8V
Power:	30W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	886*450*140mm
Viewing Angle:	120	Packing Dimension:	940*510*200mm
Working temperature :	-20 ~ +70ºC	Product Weight	17KG
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	6-7 m
Solar Panel:	18V 60W Mono-crystalalline	Warranty:	3 years
