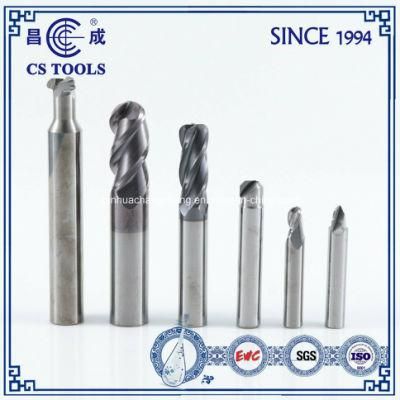

Solid Carbide Taper Ball Nose End Mill with Coated

Shandong Welink Packaging Co., Ltd.
  • Coating：Coating
  • Tooth Form：Spiral Tooth
  • Tooth Space：Sparse Tooth
  • Structure：Integral
  • Material：Tungsten Steel
  • Type：Face Milling Cutter

Base Info

  • Model NO.：Taper Ball Nose End Mill
  • Performance Classification：Economical CNC Machine Tools
  • Wc Mean Grain Size：0.2-0.8um
  • Trial/Sample Order：Accepted
  • Flexural Strength：2500-4000n,mm2
  • Material Composition：89% Carbide, 10%Co and 1% Ot
  • Export Market：Global
  • Raw Materiai：Carbide Alloy
  • Transport Package：Air
  • Specification：SGS
  • Trademark：Hiboo
  • Origin：Changzhou Jiangsu China
  • HS Code：8207709000
  • Production Capacity：50000PCS,Mouth

Description

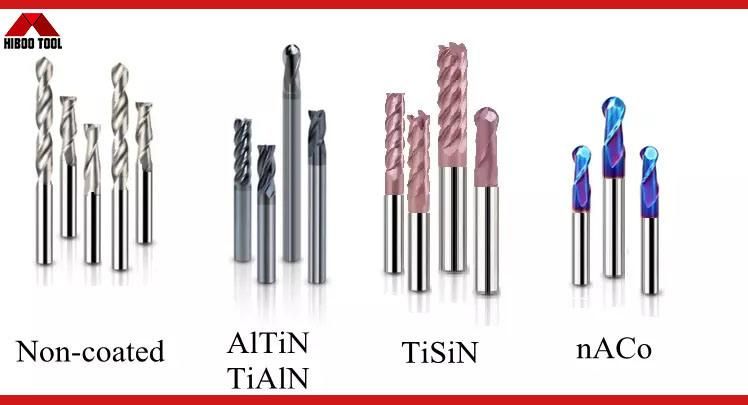

Super coating of carbide corner radius end mill Item AlTiNTiAINTiSiNHELICAHardness(HV)3500330035003000Thickness(μM)2.5-32.5-330.5-4Oxidation Temp(°)90080015001100Friction Coffients0.40.40.450.25ColorAnthracitePurple-grayBronzecopperSelect raw material according to the HRC of the work piece HRCMeterialMG Grain Size(μm)CO(%)Flexural Strength(N/mm²)50°YG10.20.710332055°Taiwan Chunbao0.610.3380060°Taiwan Chunbao0.412420065°AF3080.383700Solid Carbide Taper Ball Nose End Mill with Coated

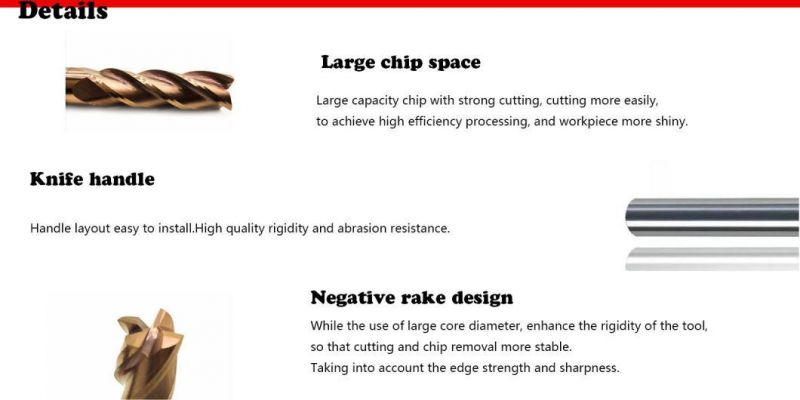

Advantage of solid carbide end mill
1. Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high -wearing feature.
2. Reduce the rudding coefficient & save the processing time, Specializing in high speed cutting of CNC milling machine.
3. Wide range of application: Suitable for copper, castiron, carbon steel, stainlees steel, Non-ferrous material and Heat-treated steel processing.
4. The shank and helix angle can be customized according to customers' requirements.
Solid Carbide Taper Ball Nose End Mill with Coated

Product feature introduced
. Materials: 100% Raw Material
. Composition: 88% Carbide, 12% Co
. Micro grain: 0.4um
. Hardness of Rod Material (HRA): 91-94
. Types: quare/ball nose/radius carbide end mill
. Flute No.: 2/3/4 flutes
. Free Service: OEM
. Applications: Good wear resistance, suitable for alloy, cast iron, copper, common mould steel

Application and usage
Applicatrion: Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc.
Usage: Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.

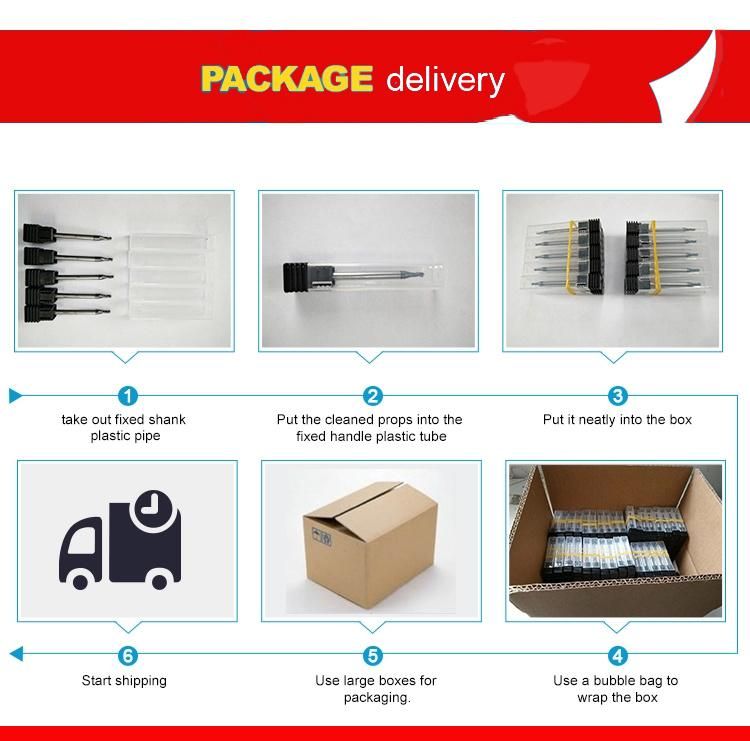

Package
(1)One plastic pipe pack one piece, 10 pieces per group.
(2)Use the air bubble paper to encase the plastic paper.
(3)White parts for protect the flute of cutters.
(4)Laser brand and demensions on the body of cutters, print labels.
(5)Put the goods encased with air bubble paper into the carton.
(6)Other packing will be accepted according to your needs.
Solid Carbide Taper Ball Nose End Mill with Coated
