P3.33 Wireless Control 4G WiFi GPS Taxi Top LED Sign
Qingdao Dinghui Refrigeration System Supply Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP67
- Pixel Pitch：3.33
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display, Mobile Advertisement
- Average Power Consumption：180W , m²
Base Info
- Model NO.：p3.33
- Pixel Density：91818
- Scanning Mode：1,8 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL
- Size：1010*399*109mm
- Weight：14 Kg,PC
- Brightness：More Than 5000CD
- Control System：Andriod+4G+Ap+WiFi+GPS+8GB Flash
- Control Way：Asynchronies with PC,Mobile,Lab Top,Pad
- View Angle：V140 H140
- Transport Package：Plywooden Case
- Specification：one plywooden case contain 5 pc
- Trademark：NVD
- Origin：China
- HS Code：8531200000
- Production Capacity：5000PC , Month
Description
Basic Info.
Model NO. p3.33 Pixel Density 91818 Scanning Mode 1/8 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Size 1010*399*109mm Weight 14 Kg/PC Brightness More Than 5000CD Control System Andriod+4G+Ap+WiFi+GPS+8GB Flash Control Way Asynchronies with PC/Mobile/Lab Top/Pad View Angle V140 H140 Transport Package Plywooden Case Specification one plywooden case contain 5 pc Trademark NVD Origin China HS Code 8531200000 Production Capacity 5000PC / MonthProduct Description

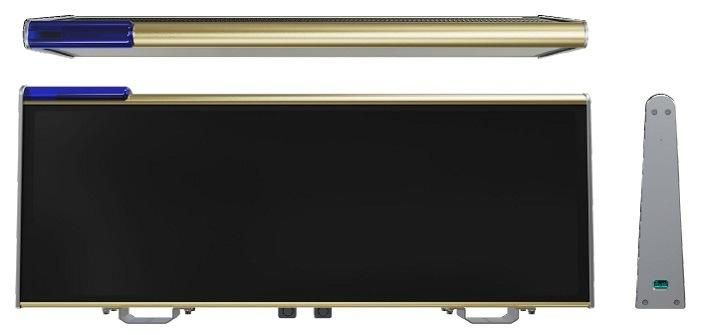

P3.33 Car top double face LED Display
Specification
| Item | TAXI-P3.33 |
| Pixel pitch (mm) | 3.33 |
| LED type | SMD |
| Pixel density | 91818 |
| Module dimension (W*H) | 480*320mm |

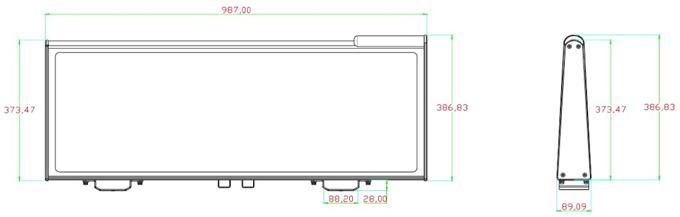

| Cabinet dimension (W*H*D) | 1010*399*109mm |
| Cabinet resolution (W*H*s) | 384*128*2 pixels ( double face) |
| Cabinet weight | 14kg |
| Cabinet material | Aluminium |
| Access | Front access |
| Ingress protection | IP65 |
| Brightness | >=5000 |
| Viewing angle | V140° H140° |
| Contrast ratio | 5000:1 |
| Max.power | 250W |
| Ave.power | 150W |
| Input voltage | DC12V |
| Driving method | 1/8 |
| Refresh rate (HZ) | 7680 |
| Gray scale (Bit) | >16 |
| LED lifespan (Hrs) | 100000 |
| Operation temperature (ºC) | -30~60 |
| Storage temperature (ºC) | -40~80 |
| Working humidity (RH) | 15%~95% |
| Storage humidity (RH) | 15%~85% |
| Control PC | Windows, Andriod, Mac OS, Chrome |
| Control way | Asynchronies with PC/Mobile/Lab top/PAD |
| Control system | Andriod+4G+AP+WiFi+GPS+8GB Flash |
Light and thin Slim and light architecture, cabinet weighs only 14kg; The thinnest part of the cabinet measures only 3.8cm, aerodynamic design results in low wind load.
Exclusive design on outdoor , High Ingress protection
Wireless and remote control, smart play list Ingress protection rating up to 56, together with the transparent PC cover to protect diodes, Taxi roof LED display is totally weatherproof and shockproof. The power module embedded under the aluminum alloy, heat generated inside can be conducted through it. Noveled taxi roof LED display also featuring electrostatic prevention and lighting protection to make it more durable for the long-term usage.
Front access, effortless maintenance Track design, slidable angle
Cabinet is accessible and serviceable from the side while module can be accessed from front, making the maintenance to be finished instantly and effortlessly.

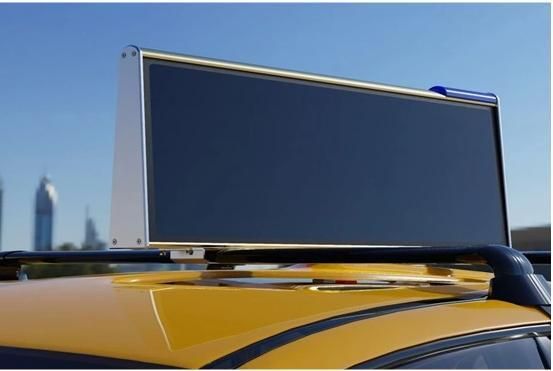

LED display is fixed on the car by a track on it and the position of the display is slid able to make the display more flexible and content more readable.
Auto rightness, save power consumption
Brightness is adjustable based on different time and environment by the built brightness sensor .During daytime , the brightness is automatically increase up to Maximum brightness . During nighttime, brightness is automatically decrease to save energy.

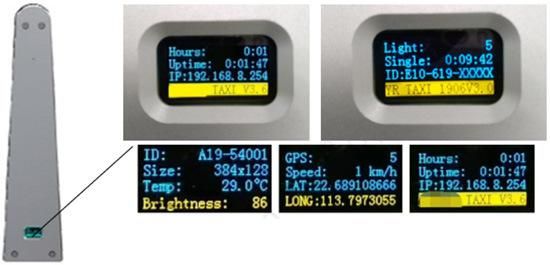

OLED display real-time information
GPS: Speed,Longitude,Latitude,Altitude,GPS Number
Display: Brightness,Temperature,Total time,Uptime
Controller: Card ID,IP,Pixels
