AR11 40 78 High Limiting Speed Needle Roller Thrust Bearing Used In Automobile Drive Trains
Hefei Pacesetter for New Material., Ltd- Rolling Body:Roller Bearings
- The Number of Rows:Single
- Outer Dimension:22mm-105mm
- Material:Bearing Steel
- Spherical:Non-Aligning Bearings
- Load Direction:Thrust Bearing
Base Info
- Model NO.:AR11 40 78
- Separated:Separated
- Structure Type:Needle Roller Thrust Bearings
- Suitable Washer:LS, AS, WS
- Features:Single Direction, AXK with Axial Bearing Washer
- Vibration:Z1V1 Z2V2 Z3V3
- Cage Type:Steel Cages
- Application:Automotive
- Certification:ISO9001:2008
- Transport Package:Neutral Packing Bearing
- Specification:0.225KG
- Trademark:HENGLI, LZ
- Origin:China
- HS Code:84823000
- Production Capacity:500000 Pieces,Year
Description
(KN)Limited
SpeedMassdDBEbEaCCorpmkgAR4.5 10 22 1022.04.5012.218.56.5614.32124000.007AR5 12 26 1226.05.0014.822.910.1623.60104000.011AR5 15 28 1528.05.0016.824.911.2027.2092000.011AR5 17 30 1730.05.0018.826.912.0031.2084000.013AR7 20 35 2035.07.0022.031.517.6043.2072000.022AR7 25 42 2542.07.0027.737.320.4056.0060000.031 AR7 25 522552.07.0029.047.026.0097.6052000.070AR7 30 47 3047.07.0032.742.321.2061.6052000.036 AR81206 3052.011.7532.847.038.4093.6050400.085 AR9 30 603060.09.0033.553.536.80129.6044800.113AR8 35 53.4 3553.48.0037.847.827.0475.2044000.052 AR81207 3562.012.7538.654.852.80132.0042400.132 AR9 35 683568.09.0039.060.640.80155.2039200.144AR9 40 60.4 4060.49.0042.854.836.80103.2040000.070 AR81208 4068.014.0043.661.865.60167.2038400.169 AR11 40 784078.011.0044.070.056.80212.0033600.225AR9 45 65.4 4565.49.0047.859.839.20114.4036000.077 AR81209 4573.014.5048.666.868.00180.0034400.197 AR14 45 854585.014.0049.077.065.60272.0030400.350AR9 50 70.4 5070.49.0052.864.840.80125.6032000.082 AR81210 5078.015.5053.671.874.40204.0032000.234 AR14 50 955095.014.0054.086.086.40344.0027200.448AR10 55 78.4 5578.410.0058.572.548.80162.4030400.125 AR81211 5590.018.0059.882.099.20284.0028800.381 AR14 55 10555105.014.0060.296.2100.00424.0024800.537
About Us
HENGLI Machinery Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings.
Our specialized manufacturer of Spherical Roller Bearing & Cylindrical Roller Bearing, LUAN Rolling Bearing Co., Ltd was
established in 1970 and is accredited by the Chinese Ministry of Machine Building.
We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products such as
Needle Roller Bearings, Cam Follower Bearings, Thrust Bearings, Spherical Plain Bearings, Rod Ends Bearings, Ball Joint
Bearings, Tapered Roller Bearings, Wheel Hub Bearings and Non-Standard Bearings.
Q1 - What is our advantages?
A - Manufacturer - Do it only with the Best;
-Your Choice make different.
Q2 - Our Products
A - Spherical Roller Bearing, Cylindrical Roller Bearing, Needle Roller Bearing, Cam Followers, Thrust Bearing
- Spherical Plain Bearing, Rod End, Ball Joint, Wheel Hub, Tapered Roller Bearing

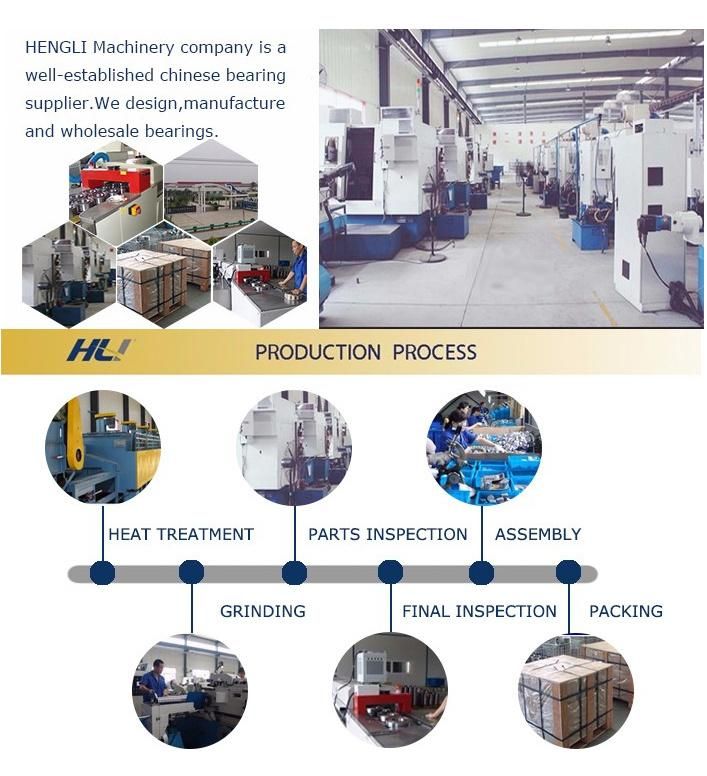

Q3 - Process of our production
A - Heat Treatment - Grinding - Parts Inspection - Assembly - Final Inspection - Packing
Q4 - How to customize bearing(non-standard) from your company?
A -We offer OEM,Customized(Non-standard) service and you need to provide drawing and detailed Technical Data.
Q5 - What should I care before installation?
A - Normally, the preservative with which new bearings are coated before leaving the factory does not need to be
removed; it is only necessary to wipe off the outside cylindrical surface and bore, if the grease is not compatible
with the preservative, it is necessary to wash and carefully dry the bearing.
-Bearings should be installed in a dry, dust-free room away from metal working or other machines producing
swarf and dust.
Q6 - How to stock and maintenance my bearings right?
A - Do not store bearings directly on concrete floors, where water can condense and collect on the bearing;
-Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidity
or sudden and severe temperature changes that may result in condensation forming;
-Always put oiled paper or, if not available, plastic sheets between rollers and cup races of tapered roller bearings.
