• Model NO.：RPLT-6000
• Lumen：4*110000
• Mast：3-Section 9m
• Dimension：4500*1350*1700mm
• Transport Package：Plywood Pallet,Plwood Case,Cartons
• Specification：ISO9001: 2000, CE
• Trademark：Robust Power
• Origin：China
• HS Code：94054090
• Production Capacity：250set,Month

Basic Info.

Model NO. RPLT-6000 Lumen 4*110000 Mast 3-Section 9m Dimension 4500*1350*1700mm Transport Package Plywood Pallet/Plwood Case/Cartons Specification ISO9001: 2000, CE Trademark Robust Power Origin China HS Code 94054090 Production Capacity 250set/Month

Product Description

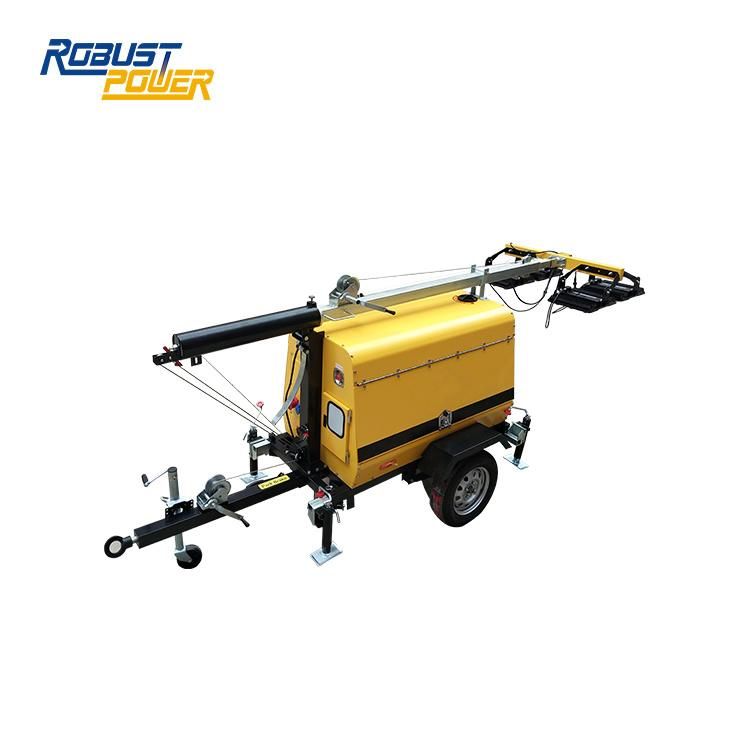

Diesel generator set powered light tower(RPLT-6000K) use Kubota water-cooled diesel engine matching with alternator.

Model number	RPLT-6000K
Mast
Maximum extension of mast	9m(Hydraulic)
Elevation	Hydraulic
Raising/Lowing mast	Button(Hydraulic)
Stages	6
Turning angle	360 degree
Lamp
Total power of lamps	4x1000W
Type of lamp	Metal halide
Light capacity	6x110000 lumen
Voltage	230Volt
Frequency	50Hz
Lifetime of lamo	5000hours
Working temperature	≤ 85
Connection protection index	IP54
Tilted angle of Light bar	130 degrees electrical waving
Characteristics of the generator
Model	RD-10K
Generator set power	8KVA/8KW
Engine model	Japan KUBOTA D1105-BG
Engine speed	50Hz 3000rpm        60Hz 3600rpm
Intake system	Natural Aspiration
Type	Vertical 4 cycle liquid cooled diesel
Alternator Model	MEGATON MWL 18AFS1
No. of cylinders	3
Continuuous power for 50Hz(1500rpm)	8.4KW/11.3HP
Type	Burushless, self-excitation
Voltage regulation	Automatic
Frequency	50HZ
Fuel tank capacity	100L
Continue running time	50Hours
Fuel consumption at 100% load	2.0L/Hours
Trailer type
Road trailer with hitch ball
Dimension(LxWxHmm)
Storage	2650mm*1400mm*3250mm
working	2650mm*2400mm*9390mm
