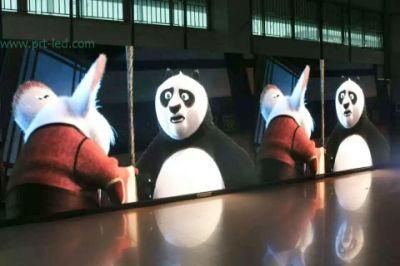

HD Indoor Full Color P3 LED Screen for Video Display
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：3mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：111111dots,Sq.M
- Scanning Mode：1,16 Scan
Base Info
- Model NO.：P3 indoor
- System Operating Platform：Win XP,Win 2000,Win7,8
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP43
- Certification：CE, RoHS, CCC, FCC
- Cabinet Size：768X768mm,576X576mm
- Cabinet Material：Steel Iron
- Module Size：192X96mm
- Module Resolution：64X32dots
- LED Type：SMD2121 Black
- Transport Package：Flight Case or Wooden Case
- Specification：CE, FCC. ROHS, 3C
- Trademark：PRT
- Origin：Shenzhen
- HS Code：8528591090
- Production Capacity：2000sq. M,Month
Description
P3 SMD2121 Indoor full Color LED Screen SpecificationPixel pitch 3mm Pixel Configuration 1R1G1B LED component SMD2121 black Size of module 192mm x 192mm/192mm x 96mm Resolution of module 64x64/64 x 32 Size of cabinet 576mm x 576mm x 150mm or 768x768x150mm Resolution of cabinet 192x192 Material of Cabinet Aluminum/Iron Weight of Cabinet 15KGS/30kgs Brightness >1200cd/sq.m Density 111111dots/sq.m Best viewing angle 140 /140 Pixel Configuration 1R1G1B Best viewing distance 3-50M Maximum power consumption 1200W/sq.m Average power consumption 640W/sq.m Driving method 1/16 scan Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >3000Hz IP grade IP31 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Distance(without relay)
Single-mode optic fiber: 10KM
