Parallel Shaft Gear Box Helical Gear Foot Mounted Reduction Gearbox 1: 40 Ratio Gearbox

Shinylink (Shanghai) Industrial Inc.
  • Application：Machinery
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Layout：Parallel
  • Gear Shape：Helical Gear
  • Step：Double-Step

Base Info

  • Model NO.：F
  • Type：Gear Reducer
  • Input Power：0.12~200kw
  • Permissible Torque：110nm~18000n.M
  • Voltage：380-440V
  • Color：Customized
  • Unit Package：Standard Plywood Case Package ,Also Can as Client
  • Ratio：4.3-273
  • Warranty：1 Year
  • Material：Cast Iron
  • Output Torque：200n.M-18000n.M
  • Input Speed：1400rpm
  • Output Speed：Based on Ratio
  • Mounting Position：Foot Mounted. Flange Mounted
  • Input Form：Motor, Motor Flange, Input Solid Shaft
  • Output Form：Hollow Shaft Output
  • Gear Set：Helical Gear Unit
  • Transport Package：Wooden Case,Carton,Pallet
  • Specification：ISO, CE, SGS
  • Trademark：AOKMAN DRIVE
  • Origin：China
  • HS Code：8483409000
  • Production Capacity：5000PCS,Year

Description

Output Shaft Dia.Input Shaft Dia.Power(kW)RatioMax. Torque(Nm)Solid ShaftHollow ShaftF3825mm30mm16mm0.18~3.03.81~128.51200F4830mm35mm16mm0.18~3.05.06~189.39400F5835mm40mm19mm0.18~5.55.18~199.70600F6840mm40mm19mm0.18~5.54.21~228.99820F7850mm50mm24mm0.37~114.30~281.711500F8860mm60mm28mm0.75~224.20~271.923000F9870mm70mm38mm1.1~304.68~276.644300F10890mm90mm42mm2.2~456.20~255.257840F128110mm100mm55mm7.5~904.63~172.3312000F158120mm120mm70mm11~20012.07~270.1818000
Installation:
Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted
Lubrication:
Oil-bath and Splash Lubrication
Cooling:
Natural Cooling

Services during selling1.Pre-check and accept products ahead of delivery.2. Help clients to draft solving plans.After-sale services1.Assist clients to prepare for the first construction scheme.2. Train the first-line operators.3.Take initiative to eliminate the trouble rapidly.4. Provide technical exchanging.

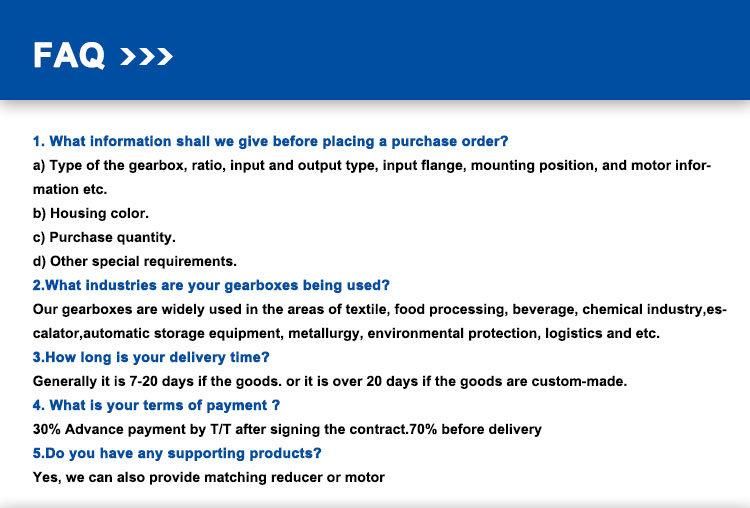

FAQ:

Parallel Shaft Gear Box Helical Gear Foot Mounted Reduction Gearbox 1: 40 Ratio Gearbox

If you have specific parameters and requirement for our gearbox, customization is available.
