• Model NO.：P4.81
• Pixel Density：15625 DOT,Square
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Warranty Period：2years
• Deliver Time：15-20 Days
• Drive Type：Constant Drive
• Modle Size：256mm*128mm
• Brightness：7000-7500 Nit ,Sqm
• Life Span：100000 Hours
• Package Mode：SMD 3535
• IP：IP65
• IC：Import IC
• Cabinet：1024 X 1024X175 mm
• Transport Package：Die-Casting Aluminum
• Specification：1024 x 1024 x 175mm
• Trademark：FWS
• Origin：Shenzhen
• HS Code：8528591090
• Production Capacity：20000 Sqm ,Month

LED LampTypeSMD3535BrandEpistarArrangement1R1G1BChip parametersRed (620-625nm) IV:(800-960mcd)Chip parametersGreen (520-525nm) IV:(1350-1650mcd)Chip parametersBlue (470-475nm) IV:(330-400mcd)LED ModulePixel Pitch8mmModule Size256×128mmModule Resolution32×16=512(Dots)Module Weight0.35kgLED CabinetPixel Density15625 Dots/sqmFrame Frequencyno less than 60 frame/secCabinet Resolution128×128=16384(Dots)Input VoltageAC110-220V±10%, 50/60HzCabinet Dimension(W*H*D)1024×1024×175mmOutput VoltageDC-5V, 40A/60A/80AModule Quanty /Cabinet4×8=32(Pcs)Color Grayscale16bitGray Scale per Color65536 levelCabinets MaterialSteelColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight42kgBrightness Adjustment256 color levels, can be adjusted manually and automatically optionalBrightness>7500cd/sqmMTBF( mean time between failures)5000 hoursViewing Angle120(Horizontal), 120(Vertical)Life-span100, 000 hoursNearest Viewing Distance11mProtection Level(front/back)IP66/IP54Power Consumption (Max)1000 w/sqmMalfunction Dot Rateless than 0.0001Power Consumption (Average)300 w/sqmWorking Temperature-30^oC~50^oCDisplay FunctionText, Graphics, VideoHumidity15%~85%Refresh Rate>800HzDrive Mode/Driver PositionConstant driving 1/4 Scan, Combined diver boardControl SystemControl ModeSynchronization/AsynchronizationInput SignalAVI/MPG/MPEG/TXT.etcControl SystemSending Card, Receiving Card, Receiving HUBPC Operating SystemMicrosoft Windows 10 ,Windows 7 and XPSoftwareLED Studio(FWS-linsn)Communication TypeNet cable; 3G, WIFI(Sold separately)LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, GermanCertificateCE, ROHS, FCC, ISO9001, TUVControl Card InputDVI, USB, RJ45, HDMI(Sold separately)

LED Module

Features:
1) IP 66 waterproof rate, all outdoor environments available.
2)High brightness, clear image can be showed even in strong sunshine. The brightness can automatic adjust according to the ambit circumstance, so it can avoid light pollution at the night and save energy.
3) High quality drive IC and led lamp ensure stable play system and long lifespan.
4) Synchronous and asynchronous control system available, customized according to your requirement.
5) Several broadcast formats support, such as AVI/MPG/MPEG/TXT etc. Network cable, Wi-Fi and 3G remote control help you change advertising content easily.
6)The width and height proportion of each cabinet are designed for optimal display effect. The size of cabinet also can be customized according to your requirement.
7)Any installation structure available, such as pillar structure, wall mounted structure and flood stand structure etc.
8)Lifetime free maintenance and offer online technical service.

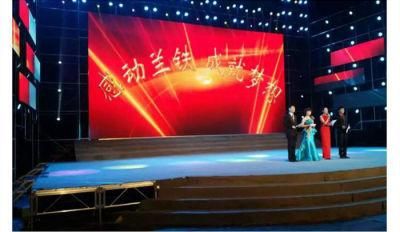

Case





Our Clients

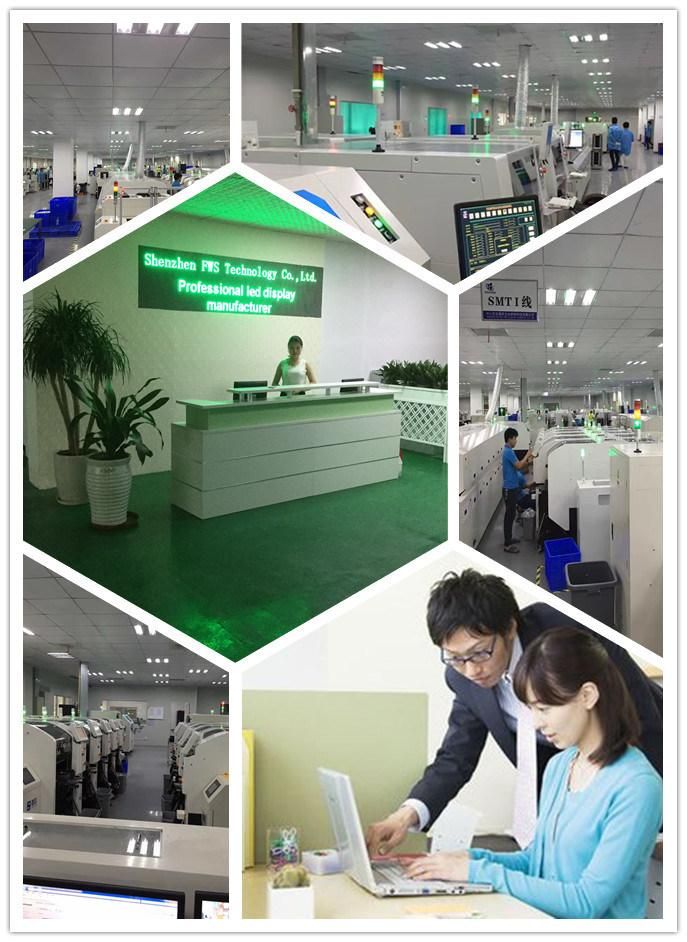

Our Factory
