Bended Pins Custom 7 Segment LED Display with RoHS From Expert Manufacturer
Dandong Dedan Trade Co., Ltd.- Tube Chip Color：Single Color
- Display Function：Numbers and Some Alphabets
- Scanning Mode：Static Scan
- Display Type：Segment LED Display
- Application：Shopping Guide, Meters and Instruments
- Certification：RoHS, Reach
Base Info
- Model NO.：LD3917A,B
- Outline Dimensions：11.2X13.5X7.8mm
- Digit Height：0.39 Inch(9.9mm)
- Emitting Color：Single Color
- Dp Number：1PC
- Digit Number：1 Digit
- Chip Matrial：4-Element
- Transport Package：EPE Foam and Carton
- Specification：RoHS, REACH
- Trademark：LIGHTKEY
- Origin：China
- HS Code：8531200000
- Production Capacity：1000000PCS,Year
Description

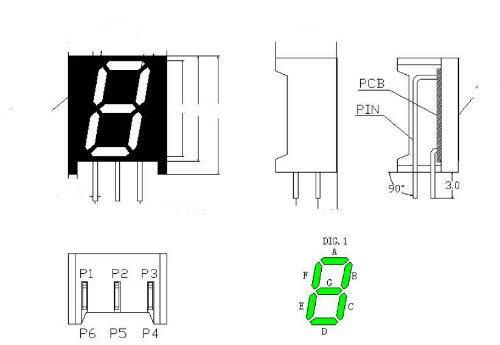

Package Dimensions
Available Options
ABSOLUTE MAXIMUM RATINGS (Ta = 25PARAMETERSYMBOL MAXIMUM RATING UNIT Power Dissipation PD 65 mW Peak Forward Current
(1/10 Duty Cycle, 0.1 ms Pulse Width)IPEAK 140 mA DC Forward Current IF 25 mA Reverse Voltage VR 5 V Operating Temperature Range Topr / Tstg -40°Storage Temperature Range Topr / Tstg -40°Solder temperature 1/16 inch below seating plane for 3 seconds at 260°ELECTRICAL OPTICAL CHARACTER AND CURVES (Ta = 25Application
https://lightkeyled.en.made-in-china.com/product-group/coWmkijOEUVP/7-Segment-LED-Display-catalog-1.html

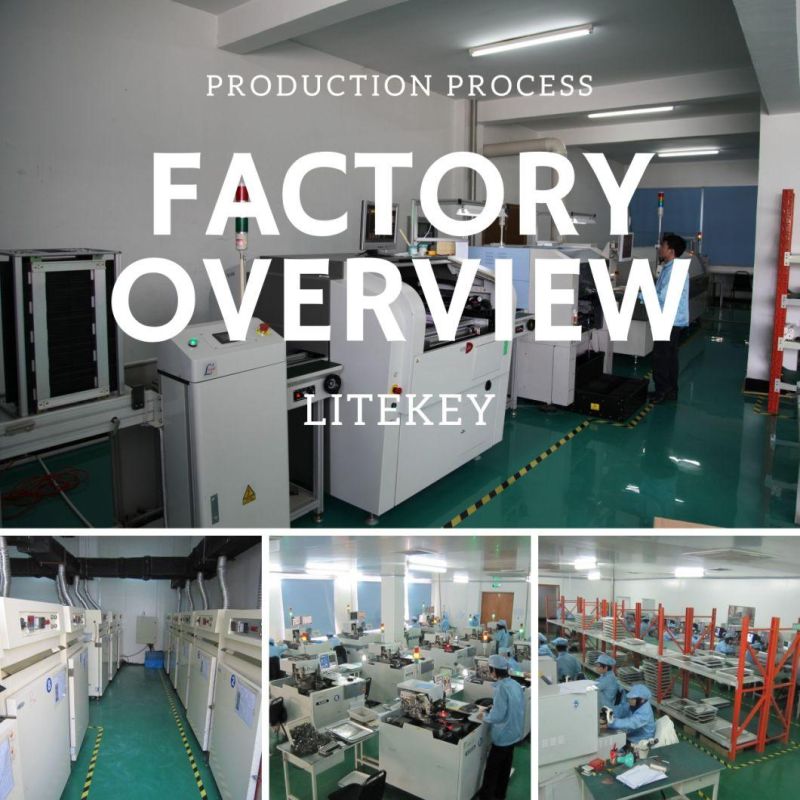

Factory Overview
Our Services/Why choose Us
1. Professional service: replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.

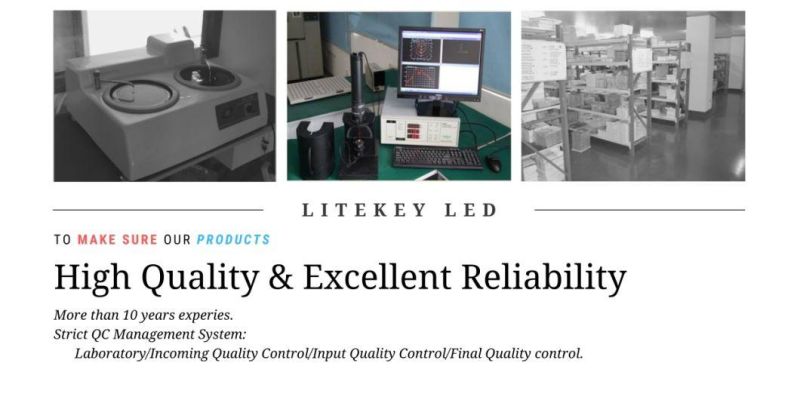

4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.
