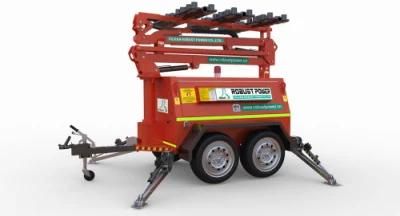

6~8kw LED Light Tower Generator Outdoor Portable Lighting Tower
Hebei Rongyuan Plastic Products Co., Ltd.- Light Source：LED COB CREE
- Engine：Kubota 6-8kw
- Transport Package：Plywood Case,Carton,Plywood Tra
- Specification：4500*1350*1700mm
- Trademark：Robust Power
- Origin：China
Base Info
- Model NO.：RPLT-6800led
- HS Code：94054090
- Production Capacity：300 Sets Per Month
Description
Technical specificationsGENERATOR Engine Kubota D1105-BG Diesel Engine Type 3 cylinders,in line,water cooled Prime Power 6.7kW / 50Hz 8.4kW/60Hz Engine Aspiration Natural Alternator Stamford PI044F/4pole,Brushless,excitation Voltage 120,220,230,240V Insulation H Fuel Tank Capicity(L) 100 L Fuel Consumption 2.0 L/h Maximum Working Hours 50 Control system GU3303 Digital controller Engine Shutdown Protection Low oil press,over speed,over current,high temperature detection,low fuel level Ayxiliary Sockets 2 Lighting Total Power Of Lamps 4x480W Type Of Lamp led flood light Housing Materials aluminium Lumen 4*67200lm Lifetime Of Lamp 50000 hours Working Temperature ≤85°C led ip IP68 Mast Type 6~7-Sections Telescoping mast 8~9M Total Height Top 9M Rotation 360 degrees Operate For Elevation Hydraulic Trailer Tow Hitch Ring/ball hitch Stabilier Supports 4*Manual 4*Hydraulic Tire Size 13 inch Brakes Manual DIMENSION & WEIGHT Dry/Net Weight 930/890 kg Extended Dimension(LxWxH) 4500*1350*1700mm Shipping Package Iron Pallet 2100*1300*2400mm Carton 520*520*400mm Container Load(20GP/40HQ) 6/12 sets Color White/Yellow/Optional

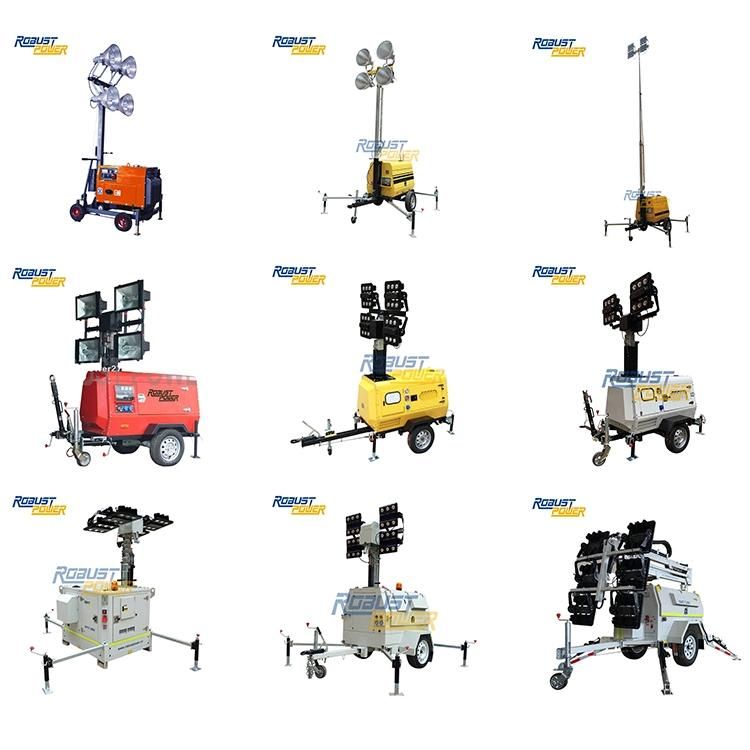

Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
