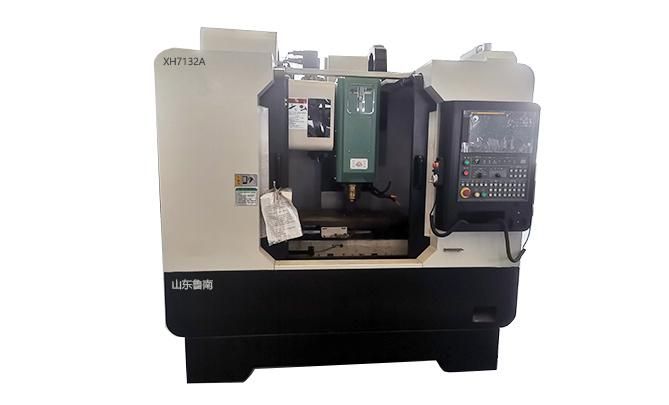

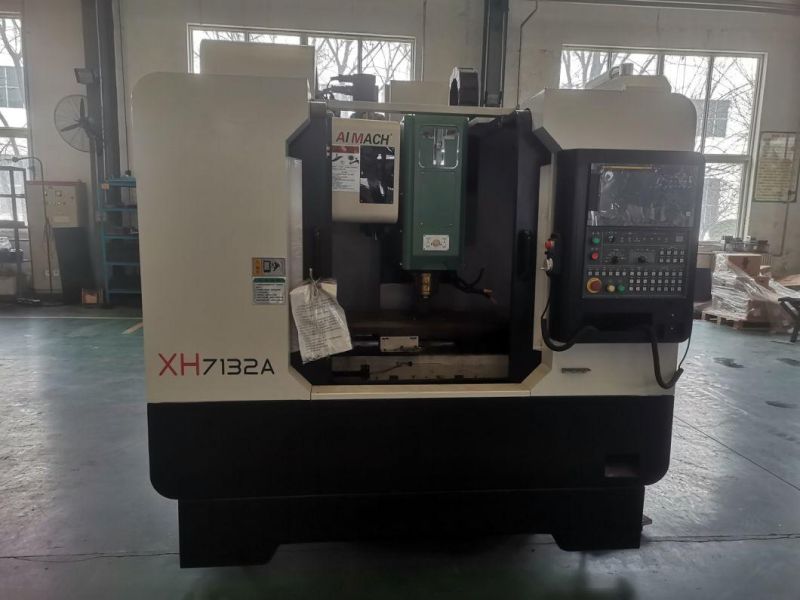

Xh7132A Linear Guide Way CNC Milling Machining Center Type
Chengdu MIND IOT Technology Co., Ltd.- After-sales Service：Quickly Feed Back on Time
- Warranty：One Year Warranty
- Transport Package：Steel Pallet with Ply Wood Cover
- Specification：800x320
- Trademark：SDLN
- Origin：Tengzhou
Base Info
- Model NO.：XH7132A
- HS Code：8457101000
- Production Capacity：1000 Sets
Description
ITEMSUNIT XK7132A Work area X-axis travel MM 500 Y-axis travel MM 320 Z-axis travel MM 400 Spindle nose MM 120-520 Spindle center to column rail surface MM 360 Worktable Table size MM 800×320 T-slot size MM 3-14-100 Max.loading capacity of table KG 350 Spindle Spindle speed range R/MIN 60-6000 Spindle nose taper BT30 Main motor KW 5.5/7.5 Feeding Rapid feeding of X,Y axis M/MIN 18 Rapid feeding of Z axis M/MIN 18 Feeding speed MM/MIN 1-5000 Rail Type 3-axis linear guide Accuracy Positioning accuracy X/Y/Z MM 0.008/0.008/0.008 Re-positioning accuracy X/Y/Z MM 0.005/0.005/0.005 Magezine tool Tools number (standard/option) Pcs 10/20 Max.diameter of tools MM φ60/φ100 Max.length of tools MM 200 Max.weight of tools KG 5 ather Net weight KG 2400 Overall dimension MM 1600×1840×2110
