High Brightness P10 Outdoor LED Display Screen LED Billboard

Freezer Spacer
  • Tube Chip Color：Full Color
  • IP Rating：IP65,IP54
  • Pixel Pitch：10mm
  • Pixel Configuration：DIP346
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：300W , m²

Base Info

  • Model NO.：P10 Outdoor LED Display
  • Pixel Density：10000DOT,M2
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, FCC
  • Cabinet Size：960mm*960mm
  • LED Lamp：Nationstar,Epistar,Kinglight
  • Driving IC：Mbi5124
  • Brightness：5500-8000CD,M2
  • Display Contrast：2500:1
  • Frame Rate：60Hz,S
  • Service Life：100000h
  • Use Voltage：AC 90-240V
  • Operating Voltage：DC5V
  • Maximum Power Consumption：800W,M2
  • Transport Package：Carton,Case
  • Specification：320*160mm
  • Trademark：Honghui
  • Origin：Shenzhen, China
  • HS Code：8528591090
  • Production Capacity：350000

Description

     smd3535 scrolling outdoor p10 led display1HD small pixel LED displayP1.5625 /  P1.667/  P1.923/  P2             2Hot rental LED displayP3 /P3.91 /P4 /P4.81 /P5.95 3Outdoor fixed LED displayP4/P5 /P6 /P8 /P10 /P16 /P204LED Control SystemNova Star / LINSN /Colorlight /Listen 5LED Nation Star /Epistar /Kinglight6IC MBI5124 IC 7Power supply Meanwell / G-energy 8Cabinet kind Iron /Aluminum /Die-casting /Fiber Aluminum            1Pixel Pitch 10 mm 2Cabinet Size 960*960mm / 800*800 mm /1280*1280MM3Pixel density 10,000 dots/m2 4Color temperature6000K--8000K5Viewing angleH:140;V:1406Dead LED lamp rate≤0.1‰7Non-Flatness<0.2mm8Module interval<0.2mm9Packaging Gross Weight(KG)50 kg (Estimated data)10Packaging dimension1m*1m*1.15 m (6cabinet in one case)11Maximal power/m2 P10 : 800 W/m212Brightness adjusted256 grade by auto-optic/color &8 grade by hand13Input signalRF,S-video,RGB,RGBHV,YUV,YC&Composition,etc14Life-span ≥1 00,000 hours15MTBF 5,000 hours16Frame frequency25 - 60 Hz / s17Refresh rate≥2,000 Hz  / s18Signal input (with video processor)HDMI, DVI, VGA, RF, S-Video, RGB,
RGBHV, YUV, YC&Composition, etc.19Control Distance120 m (no repeating); Optical fiber
transmission: 0.5km- 10km20Systems Operating PlatformWindows XP, Win 7

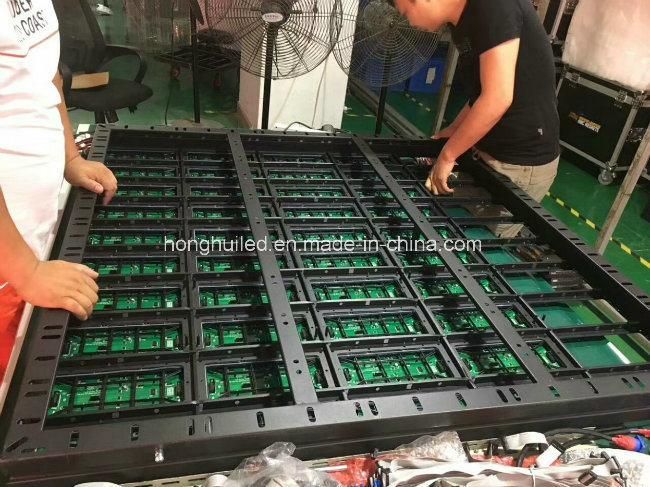

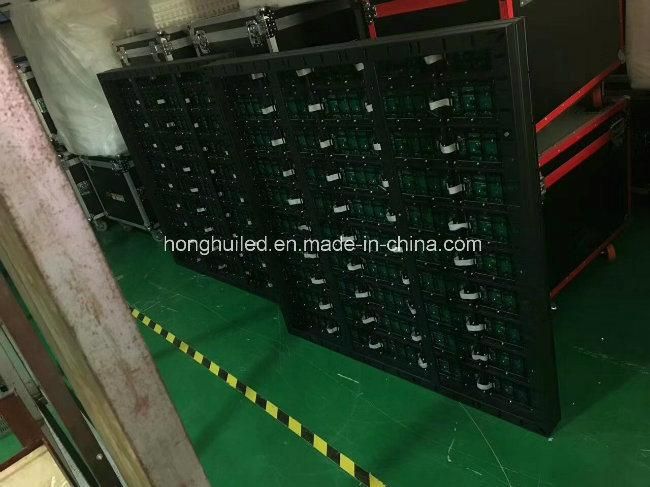

2.Product Details:
High Brightness P10 Outdoor LED Display Screen LED Billboard

High Brightness P10 Outdoor LED Display Screen LED Billboard

3.Functions and Advantages
1. High refresh rate: With NOVA STAR  control system, no scanning line when photographed
2. High gray level: 256 RGB  each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp  Nationstar and high refresh MBI5124 IC.
5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing  time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer .

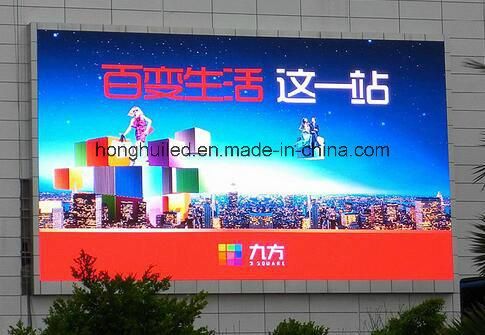

4.Application:
High Brightness P10 Outdoor LED Display Screen LED Billboard

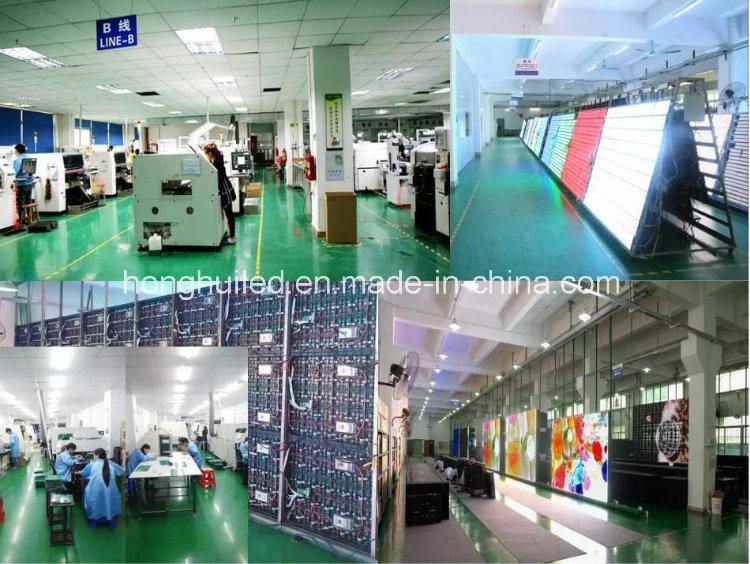

5.Our Factory and Our Service :
High Brightness P10 Outdoor LED Display Screen LED BillboardA96 Hours Serious Testing Time B72 Hours Display Testing TimeC24 Hours Module Testing Time D24 Hours After-sales online Service E12 Hours  LED Inquiry Response TimeF8 years Professional LED display factory G5 years Excellent Domestic Big Government LED Designer H3 years Expanding International  Trade Experience

6.CERTIFICATE :
High Brightness P10 Outdoor LED Display Screen LED Billboard


7.FAQ :
Question 1: How can I trust your HONGHUI LED factory ?
Answer : Yes, when you talk with us now , we are here . We do led since 2009 ,it is over 8 years . In the past 8 years , we delelop so well. Tomorrow and future , we will largely expand our LED market, you will see it .
Welcome to try our LED sample quality .
We do have100% confidence in our LED product .
Quesiton 2: If I need led very urgently ,how fast can you finish the goods ?
Answer:How fast you want ?Three days ?One week ? Definite shipping date ?
We produce LED everyday .We have some led modules in stock .
Put the most urgent and important order at the first place .
You are important to us .Surely to establish first-time good relationship .
We do must finish it at FAST ROCKET TIME.
Q3:Is it easy to install this led display ?
Answer : If you are new to LED ,we will help you to know led from ZERO to Professional .
We have installation manual book and professional engineering team to guide you .
To help you better understand LED is to make us get your earlier trust .
If you knew LED before,we can learn from each other.
We could be Future Shaking-hands  Partners .
Our engineering team remote help is ready for you 24-hours .
