7.5mm Cut Unit 8mm Width 528LEDs/M LED Flexible COB Strip

Qingdao Haochen Packing Co., Ltd.
  • Certification：FDA, GS, SAA, FCC, CCC, LVD, UL, EMC, CE
  • Power：10W,M
  • Emitting Color：White
  • Voltage：12V
  • IP Rating：IP66
  • LED Quantity：528LEDs,M

Base Info

  • Package：5m,Roll
  • Color：2700K,3000K,4000K,5000K,6500K

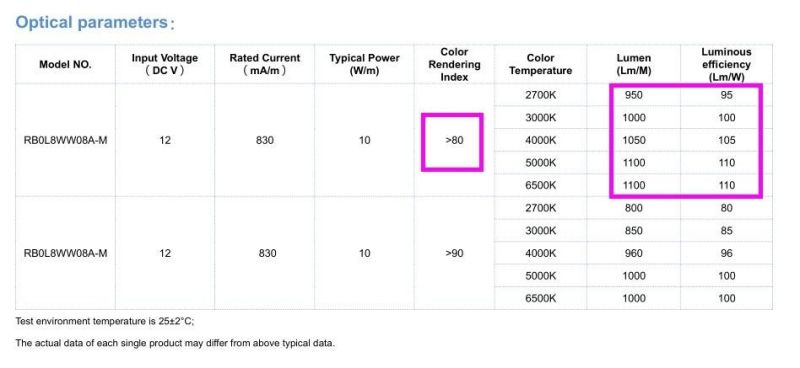

  • Aluminous Flux：950-1100lm,M
  • Length：5m
  • Warranty：3 Years
  • Delivery Time：5days
  • Shipping：DHL,UPS,FedEx, by Sea, by Air
  • Rated Current：830mA,M
  • Cut-Able Unit：7.5mm
  • LED Pitch：1.89mm
  • Luminous Efficiency：95-110lm,W
  • Width：8mm
  • IP：IP54,IP65,IP66,IP67,IP68

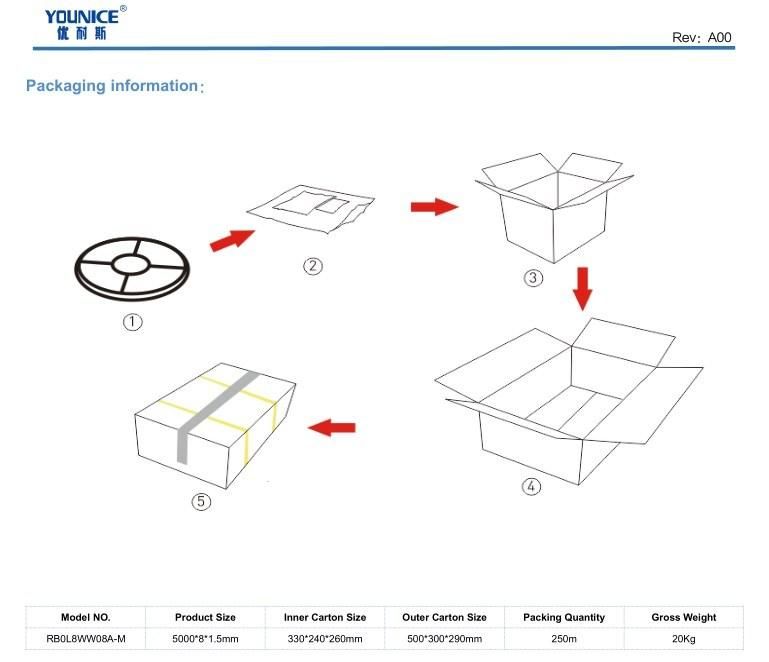

  • Transport Package：5m,Roll(Anti-Static Bag), 250m,CTN, Gw20kg
  • Specification：5M,roll(Anti-static bag), 250m,ctn, GW20kg
  • Trademark：OEM , Younice
  • Origin：Shenzhen, China
  • HS Code：9405409000
  • Production Capacity：100000m,Day

Description

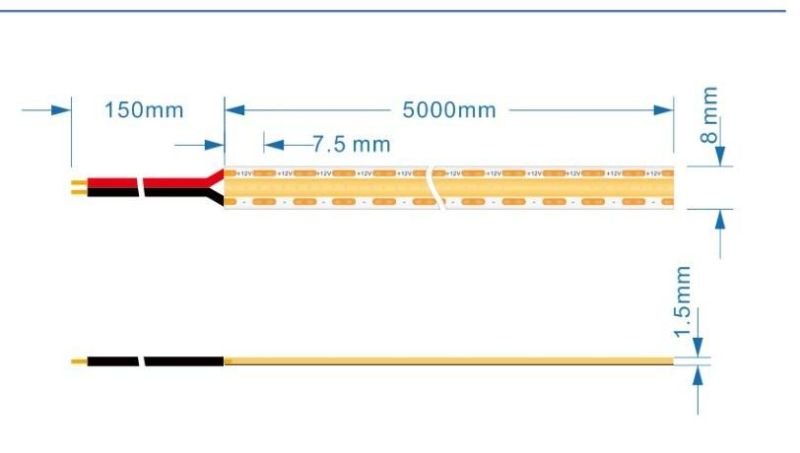

Product size5000*8*1.5 mmCut-able unit7.5mmChips Pitch1.89mmLED quantity580LEDs/mMin. bend diameterØ20 mmMounting solution3M tapeOperating ambient-25ºC~45ºCStorage Environment-25ºC~60ºC / 60% RH
