• Model NO.：P2.5
• Pixel Configuration：1R,1G,1B
• Pixel Density：160000dots
• Scanning Mode：1,32 Scan
• System Operating Platform：Windows Series
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Meeting Room
• IP Rating：IP31
• Certification：CE, RoHS, CCC
• Screen Size：Custom Made

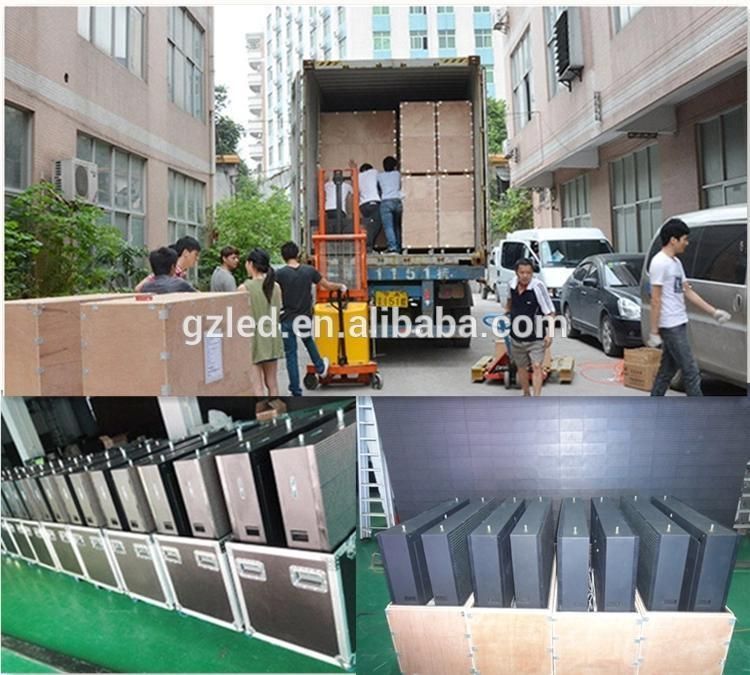

• Transport Package：Wooden Case or Flight Case
• Specification：320*160mm
• Trademark：QC
• Origin：China, Guangzhou
• HS Code：8528591090
• Production Capacity：3000 Square Meter, Month
• Package size per unit product：75.00cm * 30.00cm * 80.00cm
• Gross weight per unit product：45.000kg

Basic Info.

Model NO. P2.5 Pixel Configuration 1R,1G,1B Pixel Density 160000dots Scanning Mode 1/32 Scan System Operating Platform Windows Series Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide, Meeting Room IP Rating IP31 Certification CE, RoHS, CCC Screen Size Custom Made Transport Package Wooden Case or Flight Case Specification 320*160mm Trademark QC Origin China, Guangzhou HS Code 8528591090 Production Capacity 3000 Square Meter/ Month

Packaging & Delivery

Package size per unit product 75.00cm * 30.00cm * 80.00cm Gross weight per unit product 45.000kg

Product Description

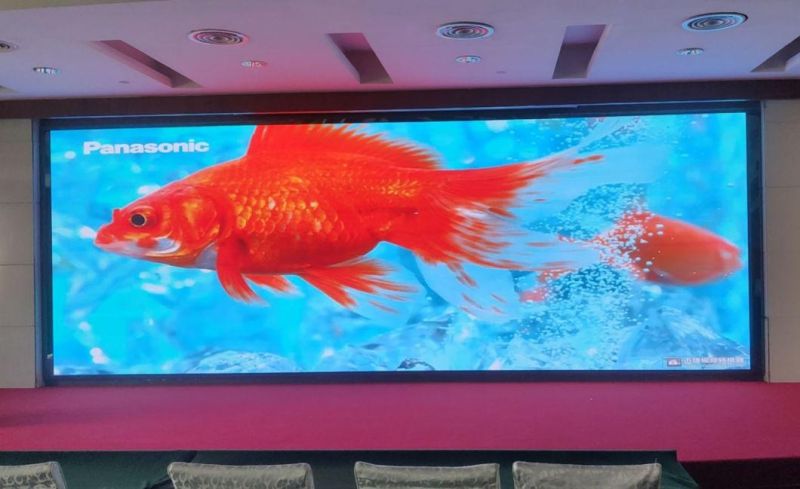

Live Concert Screen P2.5 Indoor LED Display Screen

Technical parameters

No.	Specifications
1.	Product	P2.5 Indoor full color LED Screen
2.	LED chip	Sanan
3.	Physical Pixel Pitch	2.5mm
4.	Physical Pixel Density	160000dots/m 2
5.	Pixel composition	1Red, 1Green,1Blue
6.	Moduel Size	320mm*160mm
7.	Moduel resolution	128dots*64dots
8.	Cabinet thickness	< 100mm
9.	Bracket of cabinet	Easy to install onto the LED cabinet and unistall .
10.	Brightness	≥ 1200nits
11.	Colors	1.07 Billion
12.	Viewing angle	Horizontal ≥160°,   Vertical  : ≥  160°
13.	Viewing distance	8m -150m
14.	Module cover	For protect LEDs.
15.	Scan frequency	≥1920 Hz There will be one receive card in each cabinet  ,so that the LED display won't sparked .Also it is very easy to move and connetct
16.	Video Frame Rate	≥150 fps
17.	Color temperature	6500°K to 9500°K adjustable
18.	Control method	Controlled by PC, synchronous display
19.	Life span( half brightness)	≥100,000 hours
20.	Weight	less than 30Kg  /sqm
21.	IP rate	IP31
22.	Lowest power consumption	50W/sqm
23.	Peak power consumption	1000W/sqm
24.	Input voltage	AC220V/50Hz ±10%    or  AC110V/60Hz ±10%  or AC380V/60Hz ±10%
25.	Operating Environment	Temperature:-25degree~+60degree     Humidity:10%~95%RH
26.	Operating system	Windows  Serials
27.	Type of video signal	S-video, composite video ,RGB ,VGA ,DVI

Other products:
Indoor fixed LED screen: P1.53,P1.875,P2,P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P2.5,P2.976,P3, P3.91, P4, P4.8, P4.81, P5, P6
Outdoor fixed LED screen: P2.5, P3, P4, P5, P6, P6.67,P8, P10
Outdoor rental LED screen:P3, P3.91, P4, P4.8, P4.81, P5, P6, P8, P10
Small pitch LED screen: P1.25, P1.53
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P4, P5, P6, P8, P10
LED poster player: P1.875, P2.5, P3, P4, P5, P6, P8, P10



FAQ
 1. Experienced & Professional:
16-year manufacturing experience on LED displays, professional workman ship & design.

 2. Best raw materials:
Taiwan Sanan LED chip,high quality,high brightness and long life span.

 3. Competitive price:
 100% factory price, competitive and reasonable price.

 4. Strict quality control:
The quality of our display is excellent. We use the materials of high quality suppliers in the world, strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.

  5. Quality guarantee:
All our LED display screens is more than 100,000 hours life span.

 6. Long warranty:
Two- year warranty, any quality problem during warranty time will be handled .

7. Prompt & Professional service:
Any inquires will be replied within 24/7 hours and you'll get helpful suggestions from us.

Your questions
Q1: LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P1.25, P2, P3 P4.....P8,P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.

Q2: What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.

Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.

Q4: How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.

Q5: What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.

Q6: Can I order a sample?
A: Yes, your sample orders are welcome, after checking our quality and service, we are confident that you will come back for your future orders.



After-sales services

1. Free guarantee repair (including labor and material): free for repair service in Quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period.

2. Responding time: upon receiving user's notification, we ensure 24/7 hours after-sales technical support.

3. Spare parts: necessary spare parts are provided together with products to
customers.When your screen have problem, please call us, email us, or through the Skype, Wechat, WhatsApp, QQ etc to tell us the detailed fault information (if the fault could be presented by pictures, please take pictures and send them to us as possible as you can),Our after-sales service engineers will offer technical support and guidance based on your description.

A. Real-time communication service
We can provide customer services through TM, Email, Skype,Wechat,WhasApp, QQ etc.

B. Remote control service
We can operate the customer's computer remotely via Internet, to install and set up software for customers, and to dispose of the technical fault of LED display system software.

C. Post Service
Under warranty, customers could send the defective components back to us; we will repair them and return to you as soon as we can.

The shipping cost from the buyer to the supplier is covered by the User. The shipping cost from supplier to the Buyer will be paid by the supplier.
