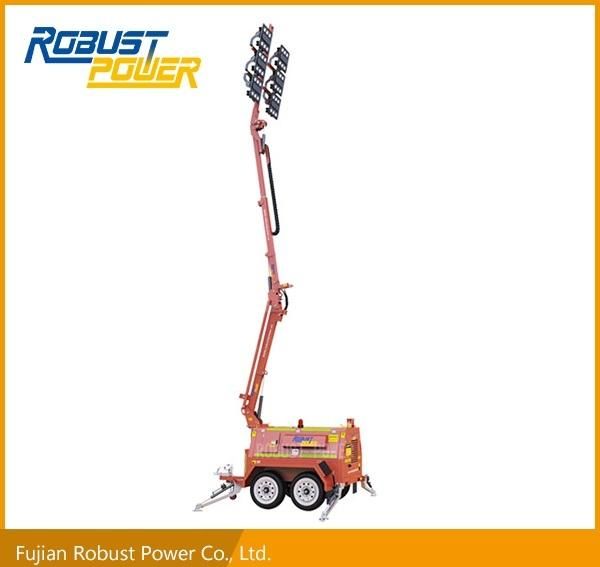

DC LED Hydraulic Telescopic High Mast Light Tower

Hebei Rongyuan Plastic Products Co., Ltd.
  • Tower Warranty：1 Year
  • Usage：Construction and Mining
  • Using Condition：Trailer Type
  • Frequency：50-60Hz
  • Certification：ISO,Ce,SAA
  • Genset Power：2.2kw

Base Info

  • Model NO.：RPLT-7200
  • Material：LED Lamps
  • Cooling Method：Water Cooled
  • Transport Package：Iron Pallet , Plywood Case , Cartons
  • Specification：3620*1660*2300mm
  • Trademark：Robust Power
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：300sets,Month

Description

DC LED Hydraulic Telescopic High Mast Light TowerMast Maximum extension of mast:10MElevation:HydraulicRaising/lowing mast: HydraulicStages:4Turning angle:±135 degreeLamp Total power of lamp:6x480WType of lamp: LED Lighting capacity:6x261000lumenVoltage:48VDC Frequency: 50Hz/60HzLifetime of lamp:30000hoursWorking temperature:<45ºCConnection protection index:IP65Light coverage:5 to 7 acresGenerator Model:3 cylinder, liquid cooled or
2 cylinder, liquid cooledPower Generation:5KW/4KW Continuous (DC)Engine model:Kubota D905 or Kubota Z482Engine speed:50Hz 1500rpm    60Hz 1800rpmEngine type:3 cylinder,in line,water-cooledEngine aspiration:NaturalAlternator:48DC,brushless,self excitation Fuel tank capacity:270LFuel Consumption:1.0 L/Hr or 0.9 L/HrTrailerHeavy duty manual stabiliser legs: 4 legs600mm fold away tow bar for transporting: yes Tire Size: 16inchDimension & weight Retracted Dimension:3100mm x 1852mm x 2440mmNet weight:1750Kg Unit price:USD$26215 FOB Fuzhou China

See below what we can offer:

1. Strong R&D team, package, and graphics design.

2. Certifications: ISO9002:2000,CE,SGS,SAA,anti-wind testing,46 patients.

                          Verified on site by world-leading inspection company, TüV Rheinland.

3. 10 QC staff and a line of advanced testing equipment to further ensure quality.

4. Production capacity: 300 unit products per month.

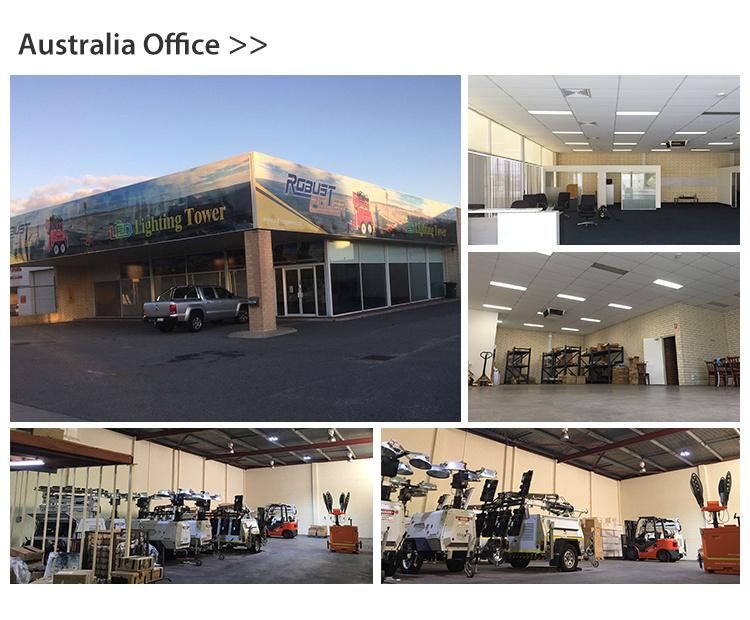

5. Australia branch: Set up a branch, stock and supply spare parts in Australia in 2004.

6. Responses within 12 hours for all your inquiries.
