• Model NO.：P3
• Pixel Density：111111dots,Sqm
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ISO9001, CB, FCC
• Screen Size：Custom Made
• Brightness：1200CD
• Applacation：Outdoor Advertising
• Refresh Rate：1920Hz,3840Hz
• View Distance：3-100m
• Life Time：100, 000hours
• Module Size：192mm*192mm
• Cabinet Material：Steel
• Cabinet Size：960mm*960mm
• Warranty：2years
• Delivery Time：15days
• Transport Package：Wooden Case or Flight Case, 1135mm*1235mm*550mm,
• Specification：P3 outdoor
• Trademark：QC
• Origin：China
• HS Code：8528591090
• Production Capacity：3000 Square Meter,Square Meters , Month

Basic Info.

Model NO. P3 Pixel Density 111111dots/Sqm Scanning Mode 1/16 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ISO9001, CB, FCC Screen Size Custom Made Brightness 1200CD Applacation Outdoor Advertising Refresh Rate 1920Hz/3840Hz View Distance 3-100m Life Time 100, 000hours Module Size 192mm*192mm Cabinet Material Steel Cabinet Size 960mm*960mm Warranty 2years Delivery Time 15days Transport Package Wooden Case or Flight Case, 1135mm*1235mm*550mm, Specification P3 outdoor Trademark QC Origin China HS Code 8528591090 Production Capacity 3000 Square Meter/Square Meters / Month

Product Description

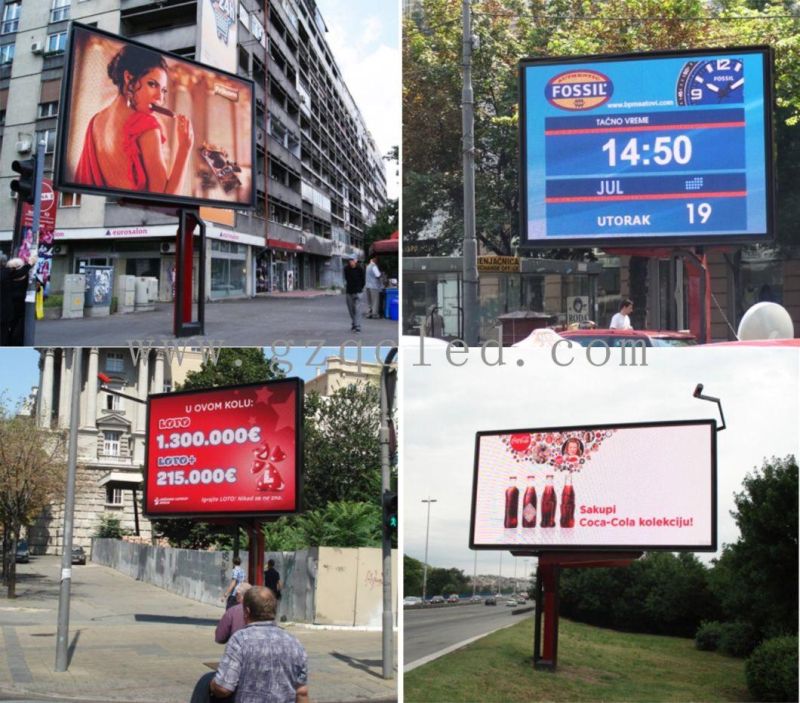

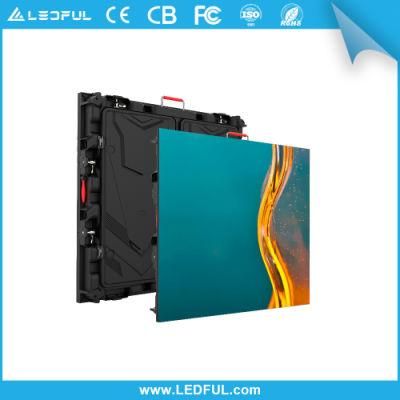

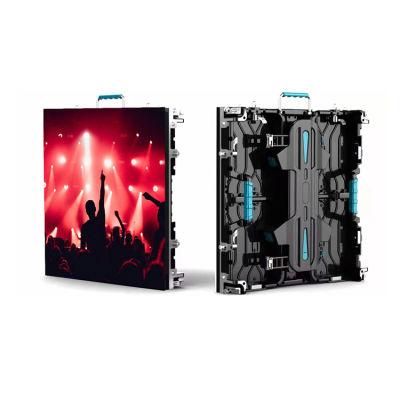

New Design High Quality Waterproof LED Sign Board Advertising LED Sign Display

Technical Parameters:

Pitch Size	3mm
Module Size	192mm*192mm
Module Pixel(dots)	64dots*64dots
Pixel Configuration	1 Red, 1 Green, 1 Blue SMD 3-in-1
LED chip	Sanan
Color scale	65536degree/16777216colors
Pixel density	111111pixels/square meter
View angle(H/V)	≥160/140degree
Brightness	≥1200cd/square meter
Brightness adjustment	64 level automatic or manual
View distance	3--100m
Power consumption	100-900W/square meter
Net weight	30kg/square meter
Operating temperature	-25°C~+60°C
Operating humidity	10%-95%RH
Life time	≥100,000hours
Out of control dot	≤1/10,000
Whole Display Flatness	≤1mm Juncture
Exchange frame speed	>150frames per second
Refresh frame frequency	1920Hz/3840Hz
Control distance	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power	110V/220V±15% 50/60Hz
Operating system	Windows series
Drive mode	constant current driving, 1/16 scan
Display mode	VGA640X480-VGA1600X1024
Protections for indoor display	IP31
Maintenance way	Rear access
Accepting signal	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

Other products:
Indoor fixed LED screen: P1.53,P1.875,P2,P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P2.5,P2.976,P3, P3.91, P4, P4.8, P4.81, P5, P6
Outdoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Outdoor rental LED screen:P3, P3.91, P4, P4.8, P4.81, P5, P6, P8, P10
Small pitch LED screen: P1.25, P1.53
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P4, P5, P6, P8, P10
LED poster player: P1.875, P2.5, P3, P4, P5, P6, P8, P10

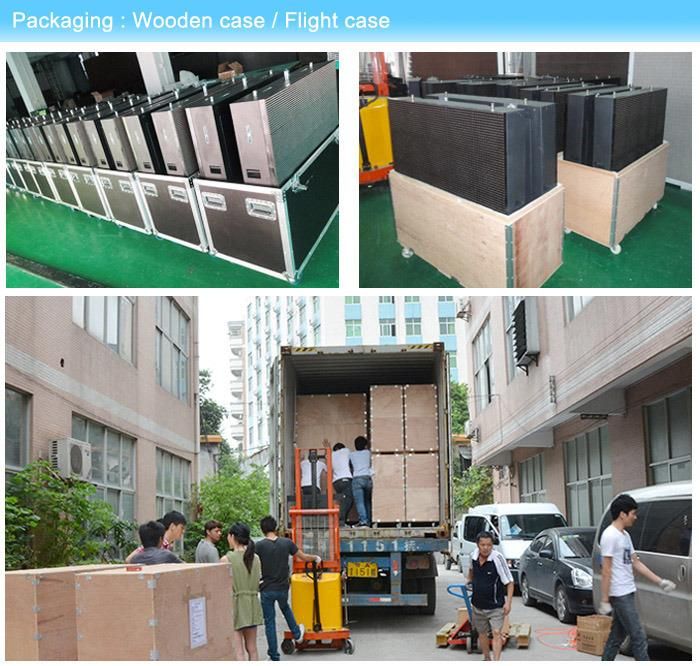

Packing & Shipping


Our Services
OUR COMPANY provides on site product installation, debugging and maintenance service for our LED display. Such as:

1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.

2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.

3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.

4) Under normal use and storage, Our Company will be responsible for the equipment.

2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time.  Any problems caused by natural factors or man-made, we will discuss with client to find solutions.

2) Our company can train the users based on the manual.  The training include system use, system maintenance and equipment protection


FAQ:
Why choose Guangzhou Qichuang Electronic & Technology Co., Ltd.

1),Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system and play a variety of information like video, word, flash, music, clock, graph etc.

2),High brightness and support brightness automatically adjustment.

3),Long lifespan, can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon;

4),Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system;

5),Rich outdoor full color LED display screen engineering experience both in domestic and international market.

6),Well before, in,after-service.all for our customer reassurance.
