• Product Name：Gvg Backstop Clutch for Conveyor Belt
• Type：Cam Clutch
• Bore Diameter：20-90
• Torque Capacity：216-4700
• Seals Type：Sealed
• OEM：Aceept
• Precision：P0
• Delivery：10-15days
• Export：Worldwide
• Transport Package：Industry Packing
• Specification：29*28*21
• Trademark：SUMA
• Origin：Changzhou, Jiangsu, China
• HS Code：8483600090
• Production Capacity：5000PCS,Month

Basic Info.

Product Name Gvg Backstop Clutch for Conveyor Belt Type Cam Clutch Bore Diameter 20-90 Torque Capacity 216-4700 Seals Type Sealed OEM Aceept Precision P0 Delivery 10-15days Export Worldwide Transport Package Industry Packing Specification 29*28*21 Trademark SUMA Origin Changzhou, Jiangsu, China HS Code 8483600090 Production Capacity 5000PCS/Month

Product Description

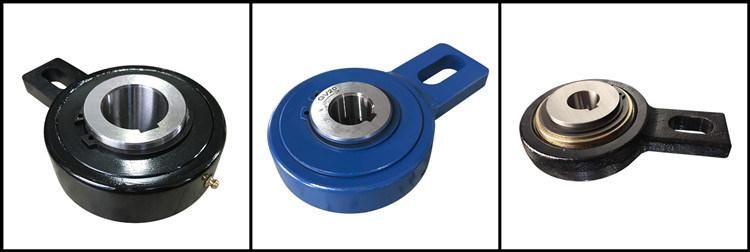

GVG35 GVG35 Belt Conveyor Backstop Clutch One Way Bearing

Features of cam clutch manufacturers
GV series freewheels are with rollers, centering between the inner race and outer race is carried out by means of bushes.
the torque forces are transmitted from the shaft to the inner race by means of a key.
shaft tolerance must be h6.
When the freewheel is used as a non return device, the lever fixed to the outer race must be sandwiched between two brackets; otherwise a pin must be inserted in the looped hole.
When locked to the frame of a machine, it stops the freewheel rotating.
If the freewheel is used as an intermittent feed, the lever must be attached lengthways using the hole for a pushrod or similar. In any case, to avoid overloading the bushes, the lever must be given a certain amount of clearance to allow for the axial movement.
the freewheel is supplied already greased

Datasheets of cam clutch manufacturers



Model	dH7	D	L	B1	L1	b2	l2	l3	l4	Weight (kg)	Max.speed (rpm)	Torque (Nm)
GVG20	20	106	48	40	15	18	35	10.5	113	2.5	400	606
GVG25	25	106	48	40	15	18	35	10.5	113	2.4	400	606
GVG30	30	106	48	40	15	18	35	10.5	113	2.3	400	606
GVG35	35	106	48	40	15	18	35	10.5	125	2.2	400	606
GVG40	40	132	52	60	15	18	35	10	125	4	300	1295
GVG45	45	132	52	60	15	18	35	10	125	3.8	300	1295
GVG50	50	132	52	60	15	18	35	10	125	3.7	300	1295
GVG55	55	132	52	60	15	18	35	10	125	3.5	300	1295
GVG60	60	161	54	70	15	18	35	10	140	6.1	250	2550
GVG70	70	161	54	70	15	18	35	10	140	5.7	250	2550
GVG80	80	190	70	70	20	25	45	15	165	10.2	200	4875
GVG90	90	290	70	70	20	25	45	15	165	9.6	200	4875
