Best Effects! ! ! Car Polish Room
Luminous Optical Technology Co., Ltd.- Certification：CCC, CE, CSA, GS, UL
- Airflow Direction：Lateral Undershot-type
- Paint Mist Treatment：Dry-type

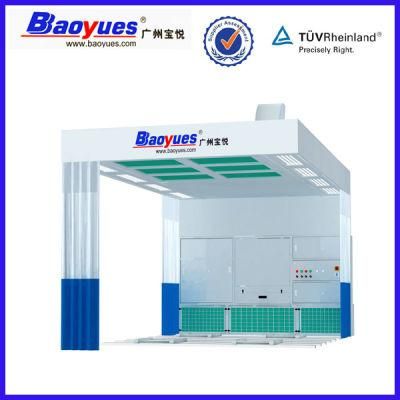

- Product Name：Car Polish Room
- Usage：Car(or Furniture) Polish, Painting
- Color：Customize Acceptable
Base Info
- Model NO.：BY-X
- Certificate：CE, CCS, TUV, SGS
- Service：Professional Engineer Team for Install
- Warranty：1 Year
- Transport Package：3PCS,20gp
- Specification：CE, CCS, TUV, SGS
- Trademark：Baoyues
- Origin：China
- HS Code：84198990
- Production Capacity：90units,Month
Description
|
Outside Dimension |
7550×3550×3100mm(L×W×H) |
|
Inside Dimension |
6300×3450×2650mm(L×W×H) |
|
Plenum Dimension |
6300×3450×450mm(L×W×H) |
|
Basement |
300mm galvanized steel basement, full grilles made by flat bar and twisted steel then galvanized. 3 ramps, external setting, 2000×750mm(L×W), surface is painted. |
|
Room Body |
Back side with 50mm EPS wallboard, the other 3 sides with PVC curtains; |
|
Light System |
Ceiling lights 8units×4pcs=32pcs×36W, with electronic ballasts |
|
Generator Cabinet |
Exhaust from rear side; square steel frame , galvanized steel cover. |
|
Intake and Exhaust System |
1 unit 5.5KW double intake centrifugal fan, model YDW-4.5S, air capacity: 15500 m 3 /h, electric damper for exhausting. |
|
Purification System |
Pre-filter, high efficiency filter, exhaust fiberglass filter |
|
Roof |
Galvanized steel plates |
|
Control System |
Fan operation switch, lighting switch, emergency stop; |
|
Install way |
Suspending steel hook from roof of building or steel column supporting; |
|
Total Power |
6.7KW |
