• Model NO.：P4.81
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL, CF
• Warranty Period：2years
• Deliver Time：15-20 Days
• Drive Type：Constant Drive
• Package Mode：SMD 2121
• Cabinet：Die-Cast Aluminum Cabinet
• Modle Size：250X250mm
• Color Display：Full Color
• Life Span：100000 Hours
• Brightness：1800 Nit , Sqm
• Use：Indoor Stage Display
• Transport Package：Flight Case
• Specification：500mm x 500 mm x 95mm or biger
• Trademark：FWS
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：2000 Sqm,Month

LED LampTypeSMD2121 black bodyBrandEpistarArrangement1R1G1BChip parametersRed (620-625nm) IV:(250-300mcd )Chip parametersGreen (520-525nm) IV:(450-550mcd)Chip parametersBlue (470-475nm) IV:(100-120mcd)LED ModulePixel Pitch4.81mmModule Size250×250mmModule Resolution52×52=2704(Dots)Module Weight0.2kgLED CabinetPixel Density43222 Dots/sqmFrame Frequencyno less than 60 frame/secCabinet Resolution104×104=10816(Dots)Input VoltageAC110-220V±10%, 50/60HzCabinet Dimension(W*H*D)500×500×95mmOutput VoltageDC-5V, 40A/60A/80AModule Quanty /Cabinet2×2=4(Pcs)Color Grayscale16bitGray Scale per Color65536 levelCabinets MaterialAluminum-magnesium alloy CabinetColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight6.25kgBrightness Adjustment256 color levels, can be adjusted manually and automatically optionalBrightness>1800cd/sqmMTBF( mean time between failures)5000 hoursViewing Angle140(Horizontal), 140(Vertical)Life-span100, 000 hoursNearest Viewing Distance8mProtection Level(front/back)IP43/IP54Power Consumption (Max)1000 w/sqmMalfunction Dot Rateless than 0.0001Power Consumption (Average)350 w/sqmWorking Temperature-15^oC-50^oCDisplay FunctionText, Graphics, VideoHumidity15%-85%Refresh Rate>1800HzDrive Mode/Driver PositionConstant driving 1/13 Scan, Combined diver boardControl SystemControl ModeSynchronization/AsynchronizationInput SignalAVI/MPG/MPEG/TXT.etcControl SystemSending Card, Receiving Card, Receiving HUBPC Operating SystemMicrosoft Windows 10 ,Windows 7 and XPSoftwareLED Studio Communication TypeNet cable; 3G, WIFI(Sold separately)LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, GermanCertificateCE, ROHS, FCC, ISO9001, TUVControl Card InputDVI, USB; RJ45, HDMI(Sold separately)LED Module & Cabinet

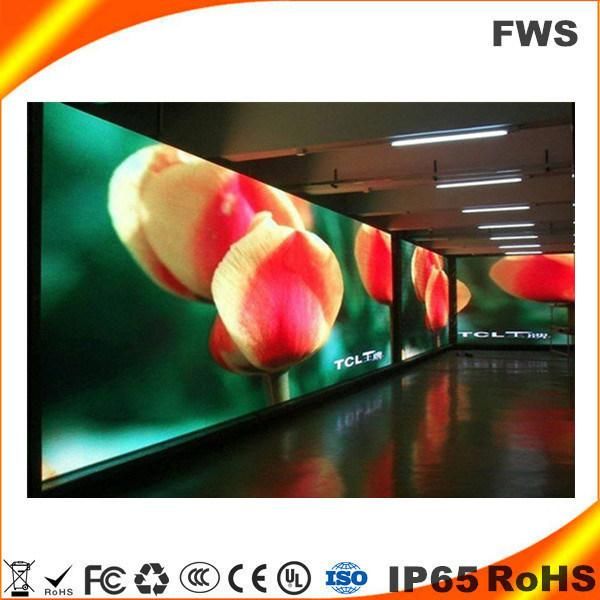

Case


Our Clients

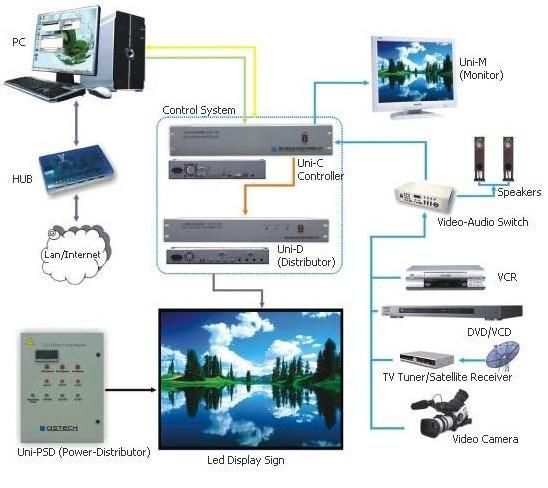

Control system

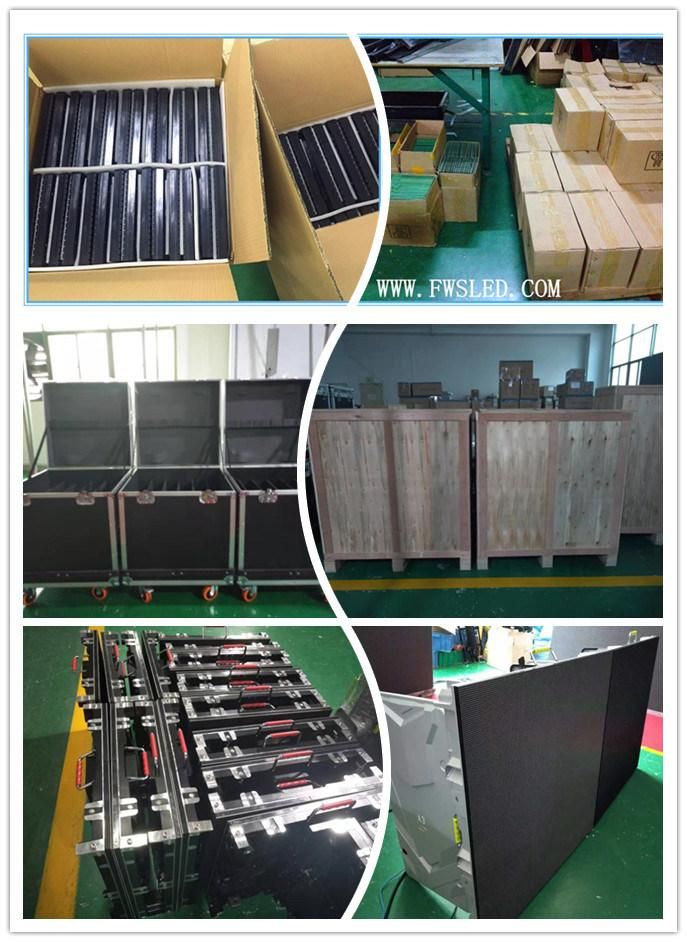

Packing

Our Service
1) Your inquiry related to our products or price will be replied in 24hours
2) Well-trained and experienced staffs to answer all your enquires in fluent English
3) OEM&ODM, any your customized screen we can help you to design and put imto product.
4)Distributoer ship are offered for your unique design and some our current models.
5)Protection of your sales area, ideas of design and all your private information

Certificate


Trade Terms;
1) Payment:T/T, usually 30% prepayment before production, 70% balance to be paid before delivering, it also change according to total quantity
2) Production lead time less 20sqm:7-15days, more than 50 sqm:30days
3)Sample can be delivered in 30days
4) Shipping port: Shenzhen, Mainland China
5) Discounts are offered based on order quantities
6) MOQ:1sqm/1pcs

1. Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
2. Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day; Or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
3. Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem
