30watt PIR Motion Sensor Street Solar Light
Hechuan Color Printing(Guangzhou) Technology Co., Ltd.- Light Source：LED Lamp
- Lamp Body Material：Aluminum Alloy
- Light Type：Solar
- Color Temperature：Pure White
- Power：30W
- Technics：Die Cast
Base Info
- Model NO.：SMLN-30W
- Illumination Time：12h
- Cell Type：LiFePO4 Lithium
- Charging Time (H)：12
- Usage：Garden, Street, out Door Court, Road
- IP Rating：IP65
- Certification：CE, RoHS, IEC Soncap
- Voltage：12,24V
- With Light Source：With Light Source
- Warranty(Year)：10 Years
- Input Voltage(V)：DC12,24V
- Lamp Luminous Efficiency(Lm/W)：180lm,W
- Working Temperature(ºC)：-40ºC - 60ºC
- CRI (Ra>)：70
- Working Lifetime(Hour)：10000
- Beam Angle：145*100°
- Working Mode：Full Power and Motion Sensor
- Lighting Area：100m²
- Lighting Time：Over 5 Nights
- Controller：Available
- Back up Days：5 Days
- Maintenance：10 Years Free Maintenance
- Mounting Height：3m
- Battery：24ah
- Transport Package：Carton, Pallet
- Specification：886x450x140mm
- Trademark：Sunmaster
- Origin：Zhejiang, China
- HS Code：9405409000
- Production Capacity：200000
Description
Basic Info.
Model NO. SMLN-30W Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 12 Usage Garden, Street, out Door Court, Road IP Rating IP65 Certification CE, RoHS, IEC Soncap Voltage 12/24V With Light Source With Light Source Warranty(Year) 10 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 70 Working Lifetime(Hour) 10000 Beam Angle 145*100° Working Mode Full Power and Motion Sensor Lighting Area 100m² Lighting Time Over 5 Nights Controller Available Back up Days 5 Days Maintenance 10 Years Free Maintenance Mounting Height 3m Battery 24ah Transport Package Carton, Pallet Specification 886x450x140mm Trademark Sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 200000Product Description

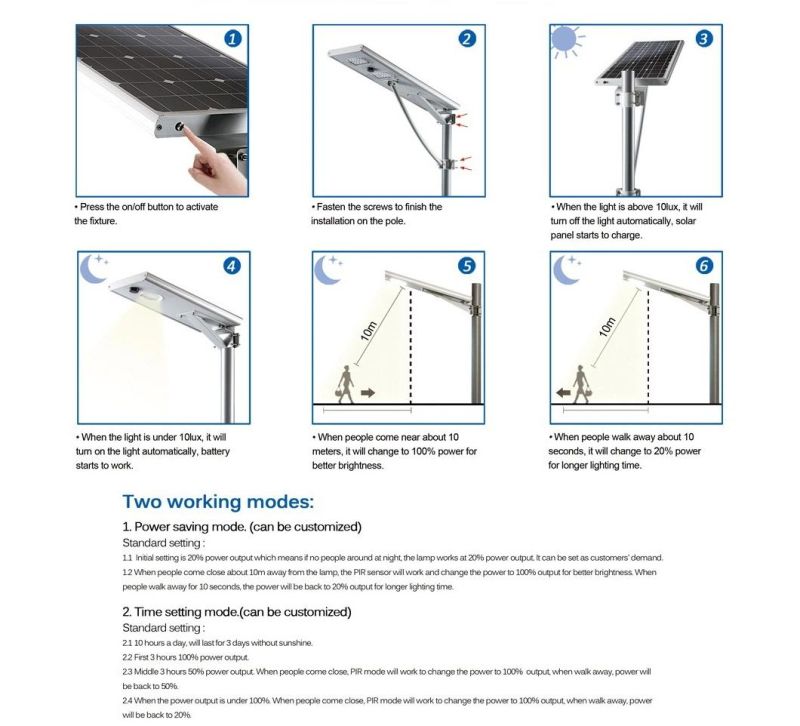

1.3-5 rainy /cloudy days backup2.Dusk-to-Dawn 12 hours with dim energy saving mode
3.Lighting times can be individually adjusted with program switch.
4.Illuminance in operation depending on local site conditions (average daylight available) and customer-specific lighting times.
| Model NO. | SMLN-30W | Battery Type: | LiFePO4 24Ah/12.8V |
| Power: | 30W | Charging Time: | 6-10 hours |
| Color Temperature: | 6000-6500K | Discharging Time: | 10-12 hours |
| Certificate: | CE/ROHS/IP65 | Product Dimension: | 886*450*140mm |
| Viewing Angle: | 120 | Packing Dimension: | 940*510*200mm |
| Working temperature : | ,-20 ~ +70 | Product Weight | 17KG |
| Lamp Efficiency: | 170 lm/w | Material: | Aluminum Alloy |
| Led chip brand: | USA Bridgelux LED chip | Install Height: | 6-7 m |
| Solar Panel: | 18V 60W Mono-crystalalline | Warranty: | 3 years |
