4*480W Hydraulic Telescopic Mast Mobile LED Light Tower
Hebei Rongyuan Plastic Products Co., Ltd.- Luminarie Efficiency(Lm/W)：140
- Color Rendering Index：70
- Dimming：Yes
- Lighting Solution：Lighting and Circuitry Design
- Lamp Life：50000h
- Working Hours：50000h
Base Info
- Model NO.：RPLT-6500
- Total Power of Luminarie：1920W
- Color Temperature：2100-5700K
- Beam Angle：90-120 Degree
- Protective Index：IP65
- Working Temperature：-20-55degree
- Transport Package：Plywood Pallet,Plwood Case,Cartons
- Specification：1850*1660*2620
- Trademark：Robusterlighting
- Origin：China
- HS Code：9405409000
- Production Capacity：200set,Month
Description
Basic Info.
Model NO. RPLT-6500 Total Power of Luminarie 1920W Color Temperature 2100-5700K Beam Angle 90-120 Degree Protective Index IP65 Working Temperature -20-55degree Transport Package Plywood Pallet/Plwood Case/Cartons Specification 1850*1660*2620 Trademark Robusterlighting Origin China HS Code 9405409000 Production Capacity 200set/MonthProduct Description

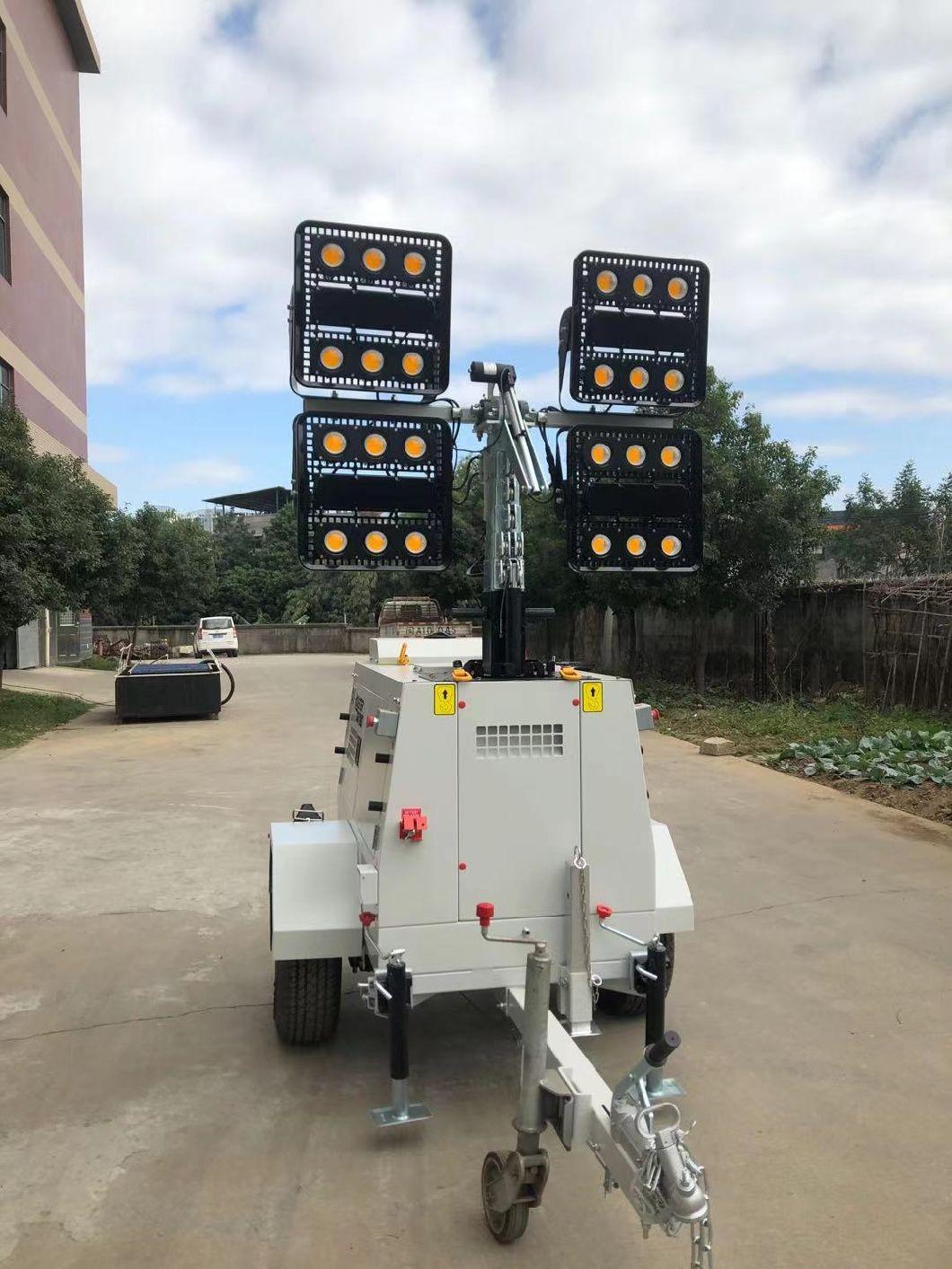

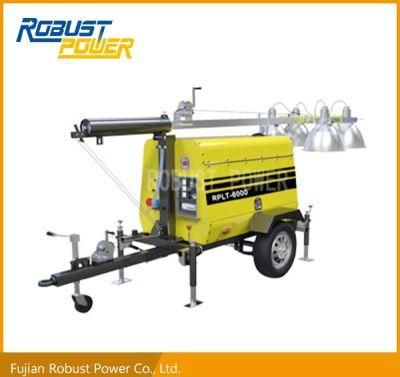

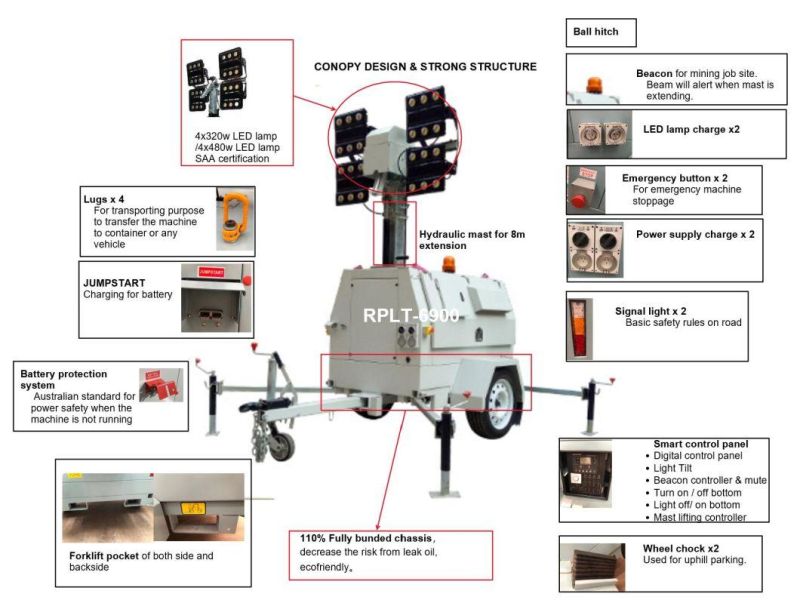

LED Hydraulic Telescopic Mast Mobile Lighting Tower RPLT-6500key features:· 8m hydraulically operated telescopic mast
· 360 ° manual mast rotation
· 130L fuel tank
· Fully bunded chassis
· 4 x 480w LED lamps with 268,800 lumens
· Environment friendly LED lamp, available in colour temperature 2100-5700k
· Galvanized mast and powder coated canopy guarantee longer life time for anti-rust
· Smartgen control system with fault protection
· Hydraulically and Manual stabilizer for option
Technical Data:
| Light | |
| Housing Material | Aluminium die cast |
| Type of lights | LED Lamp/Metal Halide Lamp |
| Power of lights | 4*67,200W LED |
| Lumen Output | 4*110,000lm ( total ) |
| Voltage | AC 110-240V DC48V |
| Frequency | 50/60Hz |
| Longevity | 3 years/2000 Hrs |
| Waterproof grade | IP65/IP54 |
| Color temperature | 2100K-5700K |
| Mast | |
| Material of mast | Galvanized iron |
| Mast lifting type | Hydraulic mast |
| Mast section | 6-section telescopic |
| Mast rotation system | 358° manual operation |
| Max. height of mast | 9 meters |
| Engine | |
| Engine model | Kubota D1105 3 cylinder, in-line, water cooled |
| Start system | Electric (Battery start) |
| Alternator | Stamford |
| Engine speed | 50hz/1500rpm, 60hz/1800rpm |
| Rated power | 50hz/7.2kw, 60hz/8.0kw |
| Insulation | H |
| Fuel tank capacity | 130L |
| Fuel consumption | 1.0L/hr |
| Maximum Working Hours | 130H |
| Controller system | Digital Smartgen AL704 |
| Waterproof grade | IP65 |
| Engine shutdown protection | Low oil pressure, over speed, over current, high-temperature detection, low fuel level |
| Trailer | |
| Stabiliser Supports | Optional 4*Manual or 4*Hydraulic |
| Tow Hitch | Ring/ball hitch |
| Tire Size | 15 inch |
| Brakes | Manual |
| Packing | |
| Net weight | 930/890 kg |
| Dimension | 4500X1350X1700 MM |

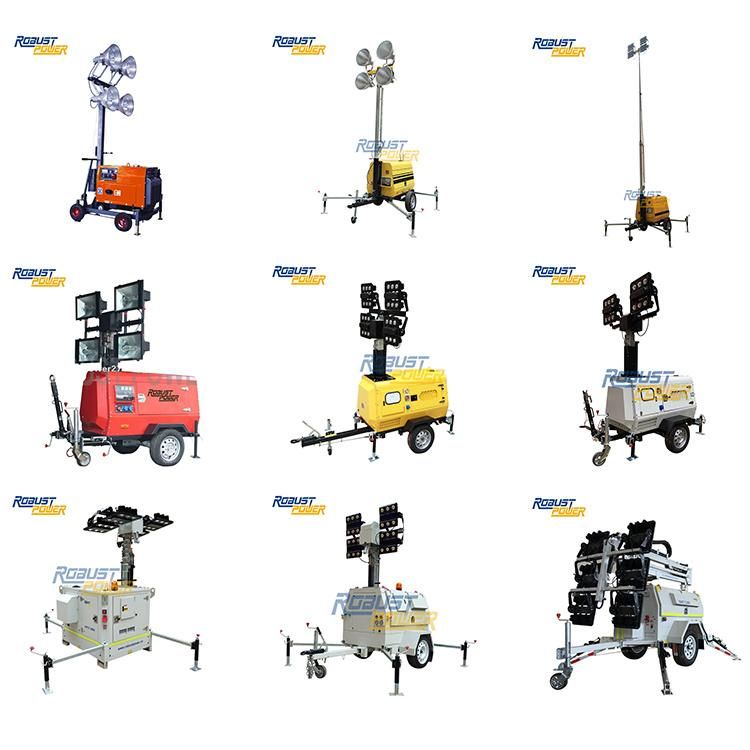

| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
