• Illumination Time：10h
• Cell Type：Gel Battery
• Charging Time (H)：10
• Usage：Garden, Street
• IP Rating：IP67
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Transport Package：Standard Export Packaging
• Specification：CE; SGS; IEC; SONCAP; PC; COC; FORM M
• Trademark：DINGXIN
• Origin：Yangzhou, China
• HS Code：54094090
• Production Capacity：50000PCS,Month

      Detailed Specification for 8M pole 60W Solar Street Light

Part Name and Lifespan

Technical Specification

Solar Panel:

Lifespan:20-25 years

140W*2PC Polycrystalline. High Efficiency. A-class

Adding Aluminum Frame, Tempered Glass.

Gelled Battery

Lifespan:5-8 years

150Ah/12V*2PC, Gelled battery, Sealed Type.

Deep cycle. Maintenance Free

Intelligent Solar Controller

Lifespan:5-10 years

15A/12V,IP68. Automatic Light and Time Control

Over-charging/discharging Protection

Switch on Automatically with Light Sensor;

Light source: High Power LED

Lifespan: More than 50000-100000Hrs

60W LED, White Color,8400LM/PC,6500K,IP65,

High Power, High Brightness.

Lamp Housing:

Lifespan: More than 20 years

Die-casted Aluminum, IP65

High transmittance & Density toughened glass,

Battery Box:

Engineer Steel, hang on the pole.

GI Pole System:

Lifespan: More than 20 years



8M Height, tapered Pole, Steel,

Hot-Dip Galvanized. Plastic Coated, Rust Proof,

Resistant to Wind: ≥150KM/H

DX SOLAR Marked 8M Pole 60W LED Street Light Loading Pictures:

Solar Street Light Working Principle:

1LED solar street light relies on solar energy, which is clean, endless and environment-friendly.2The system is mainly composed of solar panel, light source, controller and free-maintenance battery.3In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting. 4The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.

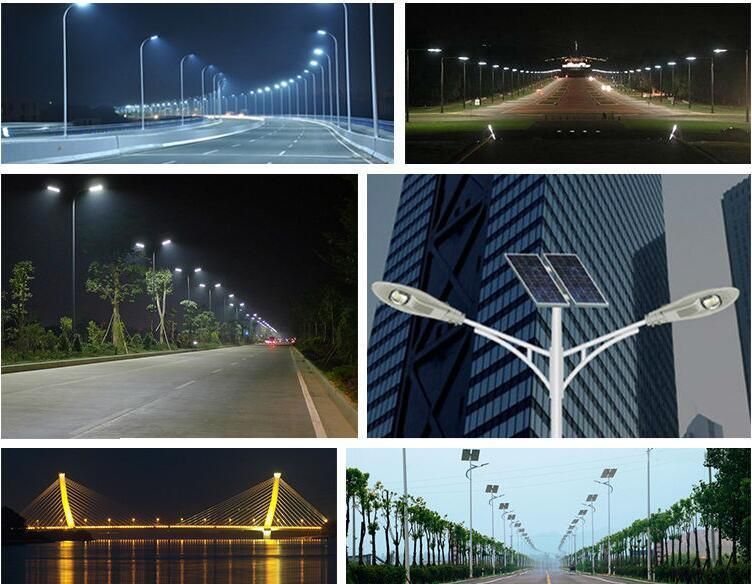

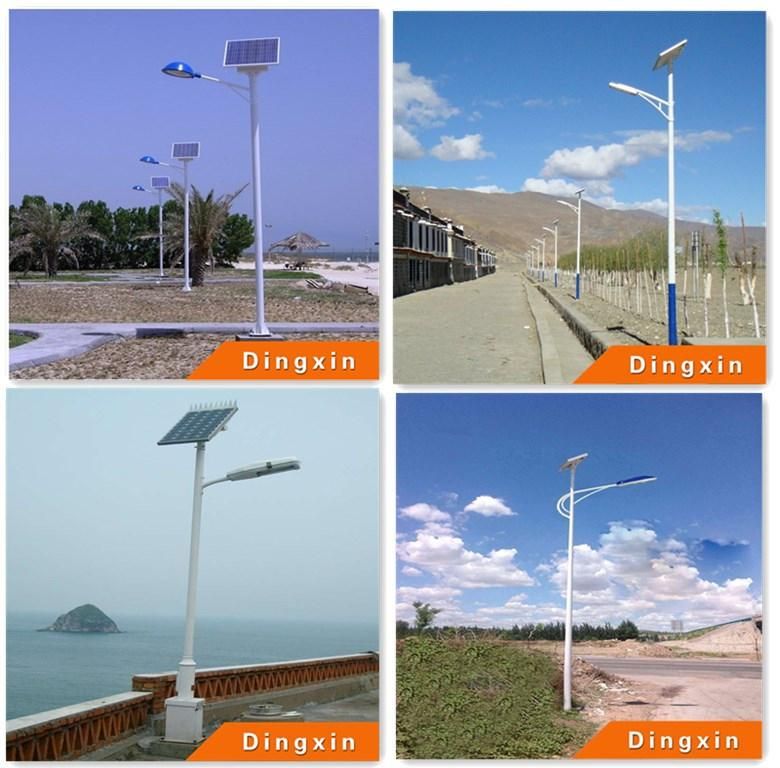

Applications of Some More Solar Street Lights and Solar Street Lighting System,OEM Is Available, If you have other model solar street lights project,you can send us the details
