Japanese Trailler 44066-90118 Brake Lining Asbestos Free
Yuyao Shinri Sprayer Co., Ltd.- Type：Brake Lining

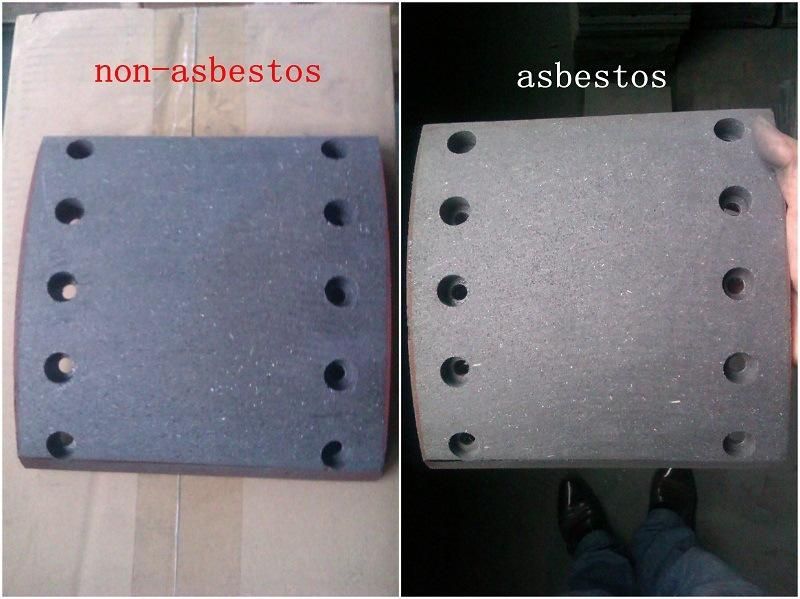

- Material：Non-Asbestos
- Position：Front
- Certification：ISO,TS16949, AMECA, ECE, Greening, SABS Vc8053
- Classification：Drum
- Drum Brakes Classification：Brake Drum
Base Info
- Model NO.：44066-90118
- Main Market：South America, North America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, Central America
- Application：BPW, Cardi, Gigant, Saf
- Size：203.9*200*17,10.09
- Color：Shining Black
- Deliver Time：25-40days After Receving The Deposit
- Transport Package：Shrink Bag in Carton, Pallet
- Specification：ISO-9001, TS16949, FMVSS 121 23K FF, SABS VC8053
- Trademark：CHANGDA
- Origin：Zhejiang, China
- HS Code：87083010
- Production Capacity：500000PCS Per Month
Description
Basic Info.
Model NO. 44066-90118 Main Market South America, North America, Eastern Europe, Western Europe, Northern Europe, Southern Europe, Central America Application BPW, Cardi, Gigant, Saf Size 203.9*200*17/10.09 Color Shining Black Deliver Time 25-40days After Receving The Deposit Transport Package Shrink Bag in Carton, Pallet Specification ISO-9001, TS16949, FMVSS 121 23K FF, SABS VC8053 Trademark CHANGDA Origin Zhejiang, China HS Code 87083010 Production Capacity 500000PCS Per MonthProduct Description
| Product Type: | Brake Linings |
| Material: | Asbestos; Semi-metallic; Non-asbestos; Ceramic etc. |
| Model: | 44066-90278 |
| Specification: | Outer Arc:216mm Width: 220mm Thickness:15mm |
| Material span life: | Asbestos: 30000 to 40000 kilometers Non asbestos: 70000 to 80000 kilometers Ceramic: 100000 kilometers up |
| Packing: | 4 pieces per sealed ploybag, 2 sets per inner box, 2boxes per export carton . Can be packed as per your requirement. |
| Sample: | Free of charge |
| MOQ: | 2000 pcs |
| Delivery time: | 25 -60 days as per order quantity |
| Delivery port: | Ningbo Port |
| Production capacity: | 300000 pieces per month |
| applicatation |
2. Featurers:
1) Good heat dissipation
2) Do not damage the drum
3) Low noise
4) High temperature resistant
5) Environment-friendly
3. Testing Result
| Inspection Item | Test Result |
| NormalTemperature Friction Coefficient(100-150ºC) | 0.42±0.02 |
| Hot Friction Coefficient(250ºC-300ºC) | 0.42±0.01 |
| Wear Rate(×10-7m3/Nm150ºC) | 0.26-0.53 |
| Density(g/cm3) | 2.22 |
| Impact Force(J/cm2) | 0.46 |
| Los's strength(HRM) | 51 |
| Shear strength in(MPa) | 20.52 |
| Compression strength(N/mm2) | 84.49 |
| Thermal Expansivity/% | 0.89 |
